CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

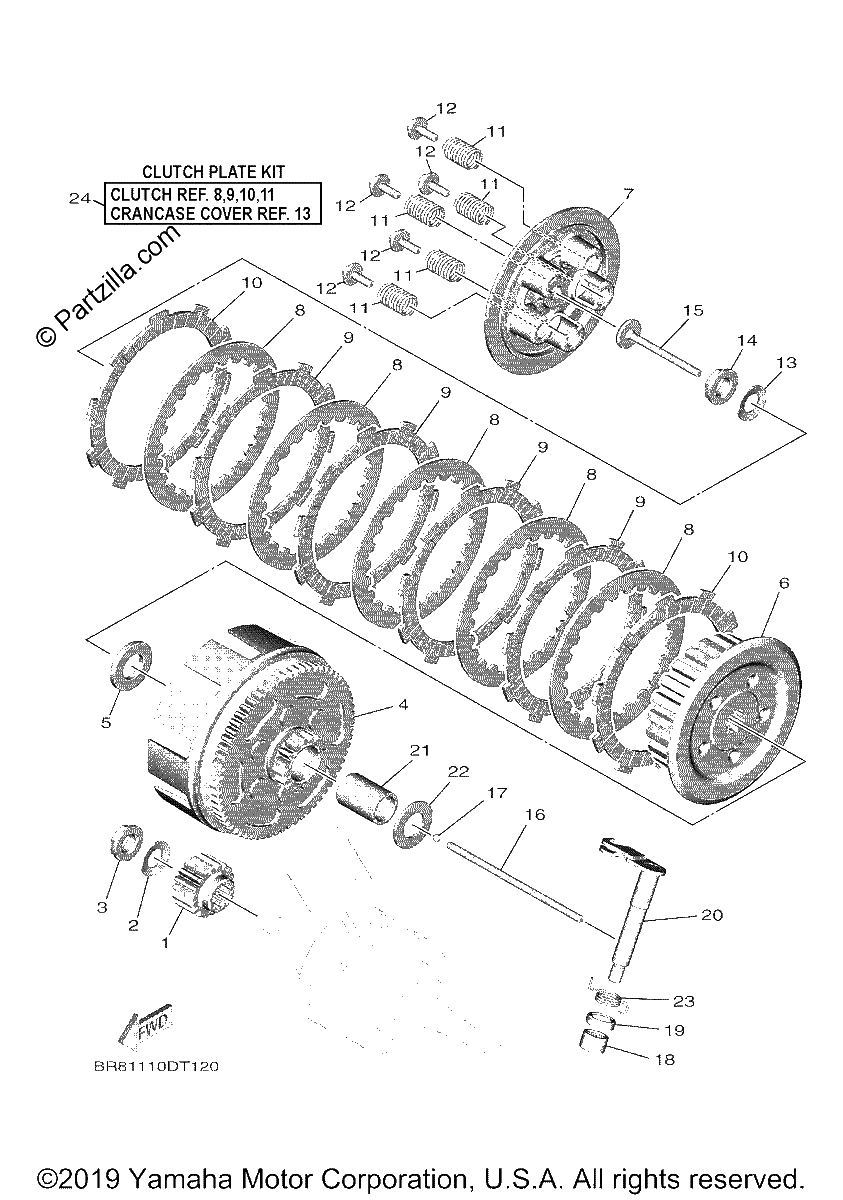

Diagrama de CLUTCH

Repuestos

#1
BR8-16111-00-00
GEAR, PRIMARY DRIVE
$55.03¢27 513
1
#2
90208-12015-00
WASHER, CONICAL SPRING
$0.78¢388
1
#3
90179-12007-00
NUT
$7.48¢3 738
1
#4
5PA-16150-10-00
PRIMARY DRIVEN GEAR COMP.
$326.63¢163 313
1
#5
90201-17558-00
WASHER, PLATE
$9.16¢4 581
1
#6
BR8-16371-00-00
BOSS, CLUTCH
$76.39¢38 194
1
#7
BR8-16351-00-00
PLATE, PRESSURE 1
$37.81¢18 906
1
#8
131-16324-00-00
PLATE, CLUTCH 1
$22.59¢11 294
1
#9
4ES-16321-00-00
PLATE, FRICTION
$18.90¢9 450
1
#10
3XP-16321-00-00
PLATE, FRICTION
$20.60¢10 300
1
#11
90501-204A0-00
SPRING, COMPRESSION
$7.34¢3 669
1
#12
90119-05001-00
BOLT,WITH WASHER (replaces 90119-05827-00)
$3.31¢1 656
1
#13
90208-12015-00
WASHER, CONICAL SPRING
$0.78¢388
1
#14
90179-12007-00
NUT
$7.48¢3 738
1
#15
4ES-16356-00-00
ROD, PUSH 1
$25.67¢12 837
1
#16
5PA-16357-00-00
ROD, PUSH 2
$31.72¢15 862
1
#17
93503-16003-00
BALL
$2.50¢1 250
1
#18
93315-11206-00
BEARING
$37.81¢18 906
1
#19
93102-12224-00
OIL SEAL
$9.94¢4 969
1
#20
4ES-16381-00-00
PUSH LEVER COMP.
$70.92¢35 463
1
#21
5PA-16181-00-00
SPACER 1
$28.61¢14 306
1
#22
90201-171G6-00
WASHER, PLATE
$9.07¢4 538
1
#23
90508-14016-00
SPRING, TORSION
$3.50¢1 750
1
#24
BR8-W001G-00-00
Clutch Plate Kit
$154.89¢77 444
1
