INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

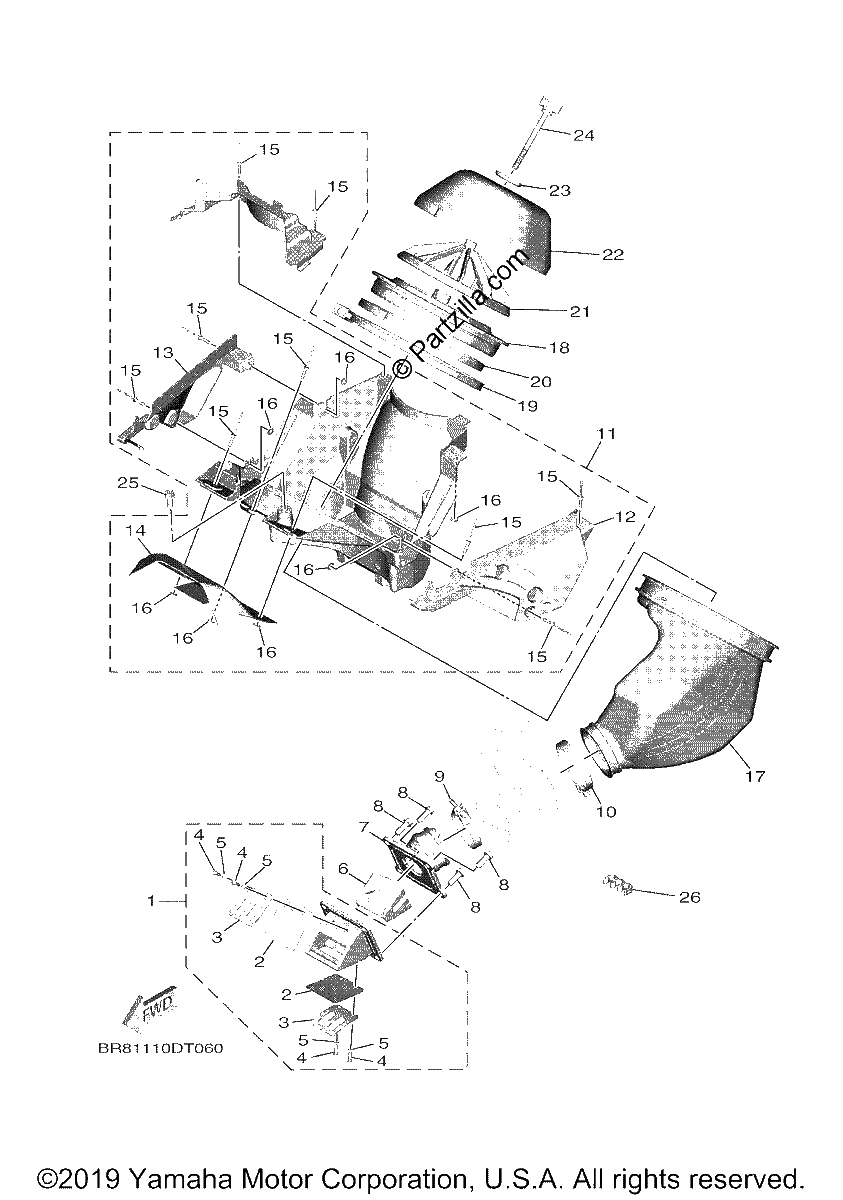

Diagrama de INTAKE

Repuestos

#1
BR8-13610-00-00
Reed Valve Assy
$110.70¢55 350
1
#2
BR8-13613-00-00
REED, VALVE
$11.36¢5 681
1
#3
4ES-13616-00-00
STOPPER, REED VALVE
$15.02¢7 512
1
#4
98580-03006-00
SCREW, PAN HEAD
$8.24¢4 119
1
#5
92990-03100-00
WASHER, SPRING
$7.34¢3 669
1
#6
BR8-13625-00-00
SPACER, REED VALVE
$16.10¢8 050
1
#7
BR8-13565-00-00
JOINT, carburetor
$55.00¢27 500
1
#8
95E32-06016-00
BOLT, FLANGE DEEP RECESS
$0.81¢406
1
#9
90450-43002-00
HOSE CLAMP ASSY
$8.39¢4 194
1
#10
90450-56001-00
HOSE CLAMP ASSY
$17.59¢8 794
1
#11
BR8-14401-00-00
AIR CLEANER CASE ASSY
$81.90¢40 950
1
#12
BR8-1441A-00-00
COVER, CLEANER CASE 1
$11.90¢5 950
1
#13
BR8-1441E-00-00
COVER, CLEANER CASE 2
$7.03¢3 513
1
#14
BR8-14417-00-00
COVER 1
$12.50¢6 250
1
#15
90267-32196-00
Rivet, Blind
$1.06¢531
1
#16
90201-03313-00
WASHER, PLATE
$7.63¢3 813
1
#17
BR8-14453-00-00
JOINT, AIR CLEANER 1
$99.30¢49 650
1
#18
BR8-14459-00-00
Holder, Guide
$21.21¢10 606
1
#19
BR8-14455-00-00
BAND
$40.17¢20 088
1
#20
BR8-14442-00-00
SPACER
$6.72¢3 363
1
#21
BR8-14458-00-00
Guide
$13.13¢6 563
1
#22
BR8-14451-00-00
Element, Air Cleaner
$46.86¢23 431
1
#23
90209-06096-00
WASHER
$7.81¢3 906
1
#24
90122-06005-00
BOLT, WING
$8.19¢4 094
1
#25
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$1.07¢538
1
#26
90464-07M05-00
CLAMP
$3.57¢1 787
1
