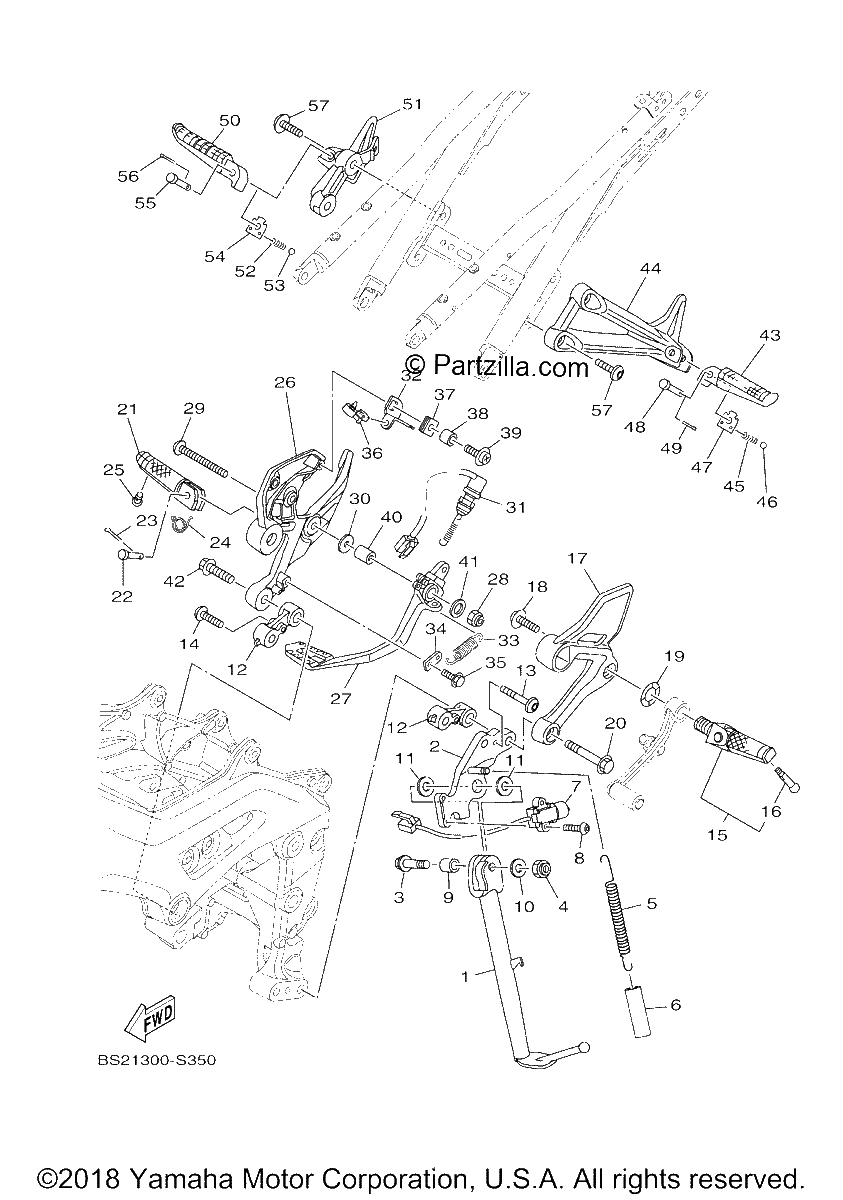

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$93.09¢46 546
#2
BRACKET, SIDE STAND
$85.81¢42 907
#3
BOLT, FLANGE
$11.11¢5 555
#4
NUT, U
$6.76¢3 381
#5
SPRING, TENSION
$14.03¢7 015
#6
HOSE (L60)
$4.30¢2 151
#7
SWITCH, SIDE STAND
$70.17¢35 087
#8
BOLT, BUTTON HEAD
$6.75¢3 375
#9
COLLAR
$22.08¢11 040
#10
WASHER, plate
$3.91¢1 955
#11
WASHER, PLATE
$1.61¢805
#12
BRACKET, ADAPTER 1
$20.15¢10 074
#13
BOLT, BUTTON HEAD
$3.65¢1 823
#14
BOLT, BUTTON HEAD
$3.09¢1 547
#15
FRONT FOOTREST ASSY (LEFT)
$79.17¢39 583
#16
BOLT
$4.48¢2 242
#17
BRACKET 2
$139.21¢69 604
#18
BOLT,HEX. SOCKET BUT
$3.27¢1 633
#19
WASHER, WAVE
$10.29¢5 146
#20
BOLT, FLANGE
$12.78¢6 388
#21
FOOTREST
$23.85¢11 925
#22
PIN
$4.45¢2 225
#23
PIN, COTTER
$3.32¢1 662
#24
SPRING, TORSION
$7.30¢3 651
#25
BOLT
$4.48¢2 242
#26
BRACKET 3
$84.39¢42 193
#27
PEDAL, BRAKE
$131.38¢65 688
#28
NUT, SELF-LOCKING
$8.00¢4 002
#29
BOLT, HEX. SOCKET BUTTON
$4.28¢2 139
#30
WASHER, PLATE
$6.21¢3 105
#31
STOP SWITCH ASSY
$52.39¢26 197
#32
STAY, STOP SWITCH
$5.37¢2 685
#33
SPRING, TENSION
$6.46¢3 231
#34
BRACKET 1
$2.21¢1 104
#35
BOLT, FLANGE DEEP RECESS
$0.28¢138
#36
CLAMP
$6.75¢3 375
#37
GROMMET
$9.36¢4 681
#38
COLLAR
$3.83¢1 915
#39
SCREW, WITH WASHER
$7.08¢3 542
#40
COLLAR
$8.03¢4 013
#41
WASHER, PLATE
$6.30¢3 151
#42
BOLT, FLANGE
$4.94¢2 472
#43
FOOTREST, REAR 1
$27.22¢13 610
#44
BRACKET 4
$66.85¢33 425
#45
SPRING, COMPRESSION
$3.51¢1 754
#46
BALL
$6.87¢3 433
#47
WASHER, SPECIAL
$7.35¢3 674
#48
PIN, CLEVIS
$4.45¢2 225
#49
PIN, COTTER
$3.32¢1 662
#50
FOOTREST, REAR 2
$27.29¢13 645
#51
BRACKET 5
$66.85¢33 425
#52
SPRING, COMPRESSION
$3.51¢1 754
#53
BALL
$6.87¢3 433
#54
WASHER, SPECIAL
$7.35¢3 674
#55
PIN, CLEVIS
$4.45¢2 225
#56
PIN, COTTER
$3.32¢1 662
#57
BOLT, BUTTON HEAD
$6.43¢3 214
