FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

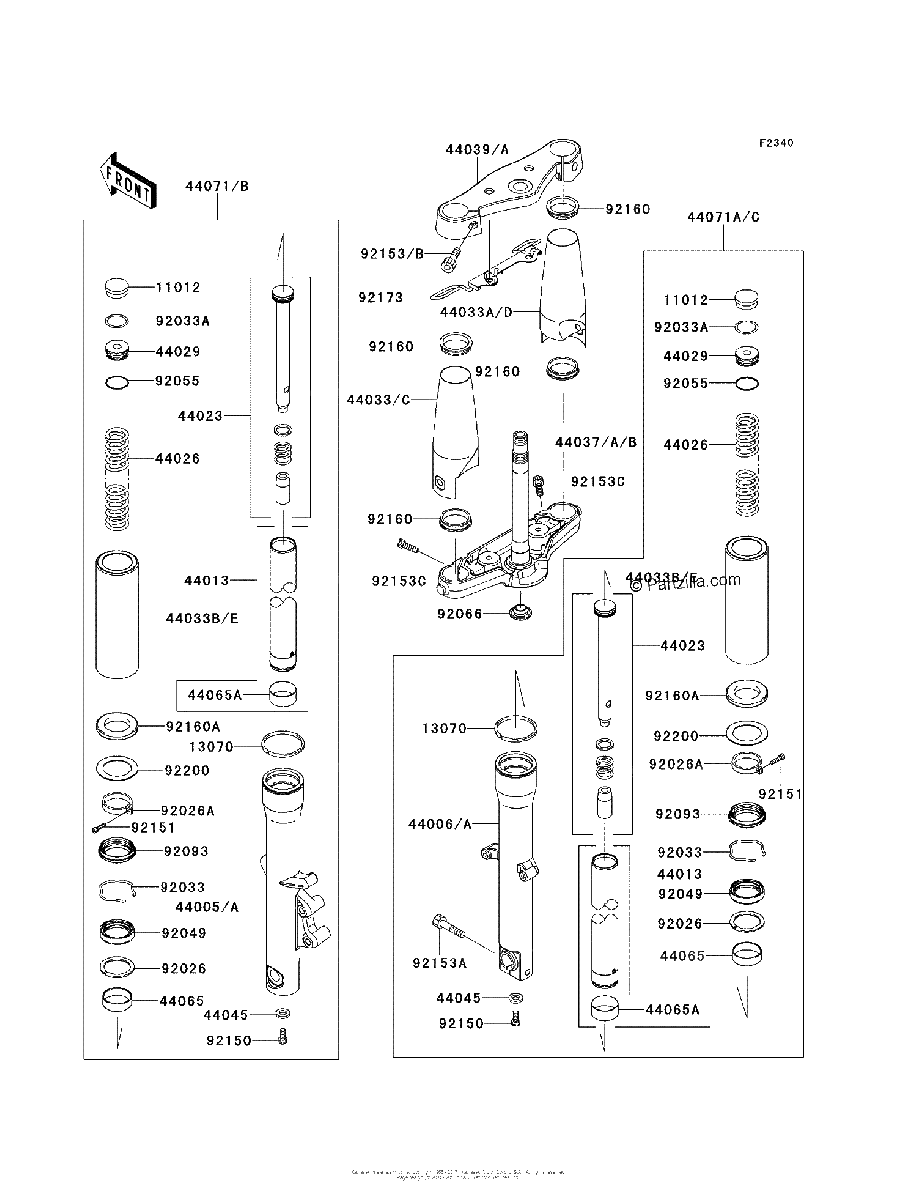

Diagrama de FRONT FORK

Repuestos

#11012
11012-1561
CAP,FORK TOP
$17.44¢8 719
1
#13070
13070-0056
GUIDE
$13.25¢6 625
1
#44005
44005-0089
PIPE LEFT FORK OUTER
$504.58¢252 288
1
#44005
44005-0043
PIPE-LEFT FORK OUTER
$498.50¢249 250
1
#44006
44006-0083
PIPE RIGHT FORK OUTER
$504.58¢252 288
1
#44006
44006-0073
PIPE RIGHT FORK OUTER
No Disponible
1
#44013
44013-0049
PIPE FORK INNER
No Disponible
1
#44023
44023-0042
CYLINDER SET FORK
$110.70¢55 350
1
#44026
44026-0074
SPRING FRONT FORK
$93.58¢46 788
1
#44029
44029-0008
SEAT-FORK SPRING
$37.63¢18 813
1
#44033
44033-0069-21
COVER FORK,Left Hand,F BLACK
$156.22¢78 113
1
#44033
44033-0035
COVER FORK,Left Hand
$148.78¢74 388
1
#44033A
44033-0037
COVER FORK,Right Hand
$148.78¢74 388
1
#44033B
44033-0039
COVER FORK
$148.61¢74 306
1
#44033A
44033-0070-21
COVER FORK,Right Hand,F BLACK
$156.22¢78 113
1
#44033B
44033-0071-18R
COVER FORK,F S BLACK
$149.30¢74 650
1
#44037
44037-0068-CE
HOLDER FORK UNDER,SILVER
$452.84¢226 419
1
#44037
44037-0068-18R
HOLDER FORK UNDER,F S BLACK
$452.84¢226 419
1
#44037
44037-0068
HOLDER FORK UNDER,SILVER
$449.70¢224 850
1
#44037A
44037-0068-CE
HOLDER FORK UNDER,SILVER
$452.84¢226 419
1
#44039
44039-0087-18R
HOLDER FORK UPPER,F S BLACK
$409.89¢204 944
1
#44039
44039-0062
HOLDER FORK UPPER
$404.14¢202 069
1
#44045
44045-051
GASKET,FORK CYLINDER BOLT
$6.04¢3 019
1
#44065
44065-0019
BUSHING-FRONT FORK
$26.64¢13 319
1
#44065A
44065-1087
BUSHING FRONT FORK,INNER PIPE
$34.25¢17 125
1
#44071A
44071-0662
DAMPER Assembly,FORK,Right Hand
$835.81¢417 906
1
#44071A
44071-0792
DAMPER Assembly,FORK,Right Hand
$879.39¢439 694
1
#44071
44071-0316
DAMPER-ASSY,FORK,LH
No Disponible
1
#44071
44071-0791
DAMPER Assembly,FORK,Left Hand
$879.39¢439 694
1
#92026A
92026-1515
SPACER
$17.52¢8 763
1
#92026
92026-0090
SPACER,FORK
$22.74¢11 369
1
#92033A
92033-1223
RING-SNAP,SPRING SEAT
$6.65¢3 325
1
#92033
92033-1222
RING-SNAP
$6.36¢3 181
1
#92049
92049-0058
SEAL OIL
$26.63¢13 313
1
#92055
92055-1363
RING O,SPRING SEAT
$7.30¢3 650
1
#92066
92066-0078
PLUG
$13.65¢6 825
1
#92093
92093-0035
SEAL,DUST
$27.00¢13 500
1
#92150
92150-1432
BOLT,SOCKET,8X18
$9.83¢4 913
1
#92151
92151-1356
BOLT,SOCKET,4X16
$2.38¢1 188
1
#92153A
92153-0533
BOLT
$10.76¢5 381
1
#92153C
92153-1376
BOLT,SOCKET,10X25
$4.84¢2 419
1
#92153
92153-0500
BOLT,SOCKET,8X30
$12.22¢6 113
1
#92153
92153-0712
BOLT,SOCKET,8X30
$4.16¢2 081
1
#92160A
92160-1927
DAMPER
$9.09¢4 544
1
#92160
92160-1892
DAMPER
$3.69¢1 844
1
#92173
92173-0165
CLAMP
$49.11¢24 556
1
#92200
92200-1417
WASHER
$8.73¢4 363
1
