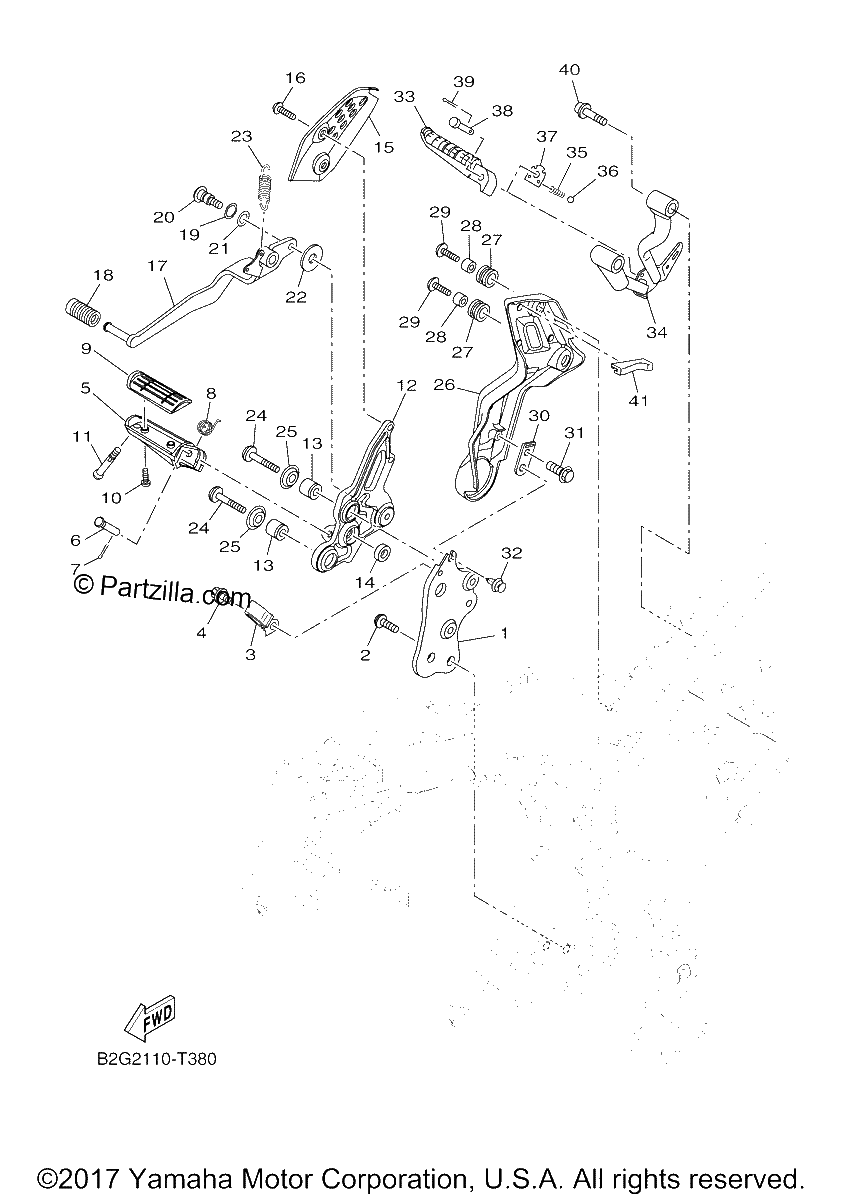

STAND FOOTREST 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BRACKET, ADAPTER 2
$80.41¢40 204
#2
BOLT, HEX. SOCKET BUTTON
$5.06¢2 530
#3
CLAMP
$12.75¢6 377
#4
BOLT, FLANGE
$5.97¢2 984
#5
FOOTREST
$34.70¢17 348
#6
PIN, CLEVIS
$4.45¢2 225
#7
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#8
SPRING, TORSION
$1.45¢724
#9
COVER, FOOTREST
$27.65¢13 823
#10
SCREW, PAN HEAD
$8.04¢4 019
#11
BOLT
$5.65¢2 823
#12
BRACKET 3 | UR FOR BNS4
$92.63¢46 316
#13
DAMPER, FOOTREST
$23.85¢11 925
#14
STOPPER, MAIN STAND
$7.23¢3 617
#15
PLATE 2 | UR FOR BNS4
$43.61¢21 804
#16
BOLT, BUTTON HEAD
$6.43¢3 214
#17
PEDAL, BRAKE
$69.61¢34 805
#18
COVER, SHIFT PEDAL
$4.91¢2 455
#19
WASHER,WAVE
$7.65¢3 824
#20
BOLT
$2.79¢1 397
#21
WASHER, PLATE
$6.88¢3 439
#22
WASHER, PLATE
$6.38¢3 191
#23
SPRING, TENSION
$6.46¢3 231
#24
BOLT, HEXAGON SOCKET HEAD
$7.67¢3 835
#25
WASHER
$7.30¢3 651
#26
COVER 2
$102.41¢51 204
#27
GROMMET
$6.83¢3 415
#28
Collar
$4.73¢2 363
#29
BOLT,HEX. SOCKET BUTTON
$3.44¢1 719
#30
BRACKET, FOOTREST 2
$6.43¢3 214
#31
BOLT,FLANGE (replaces 95802-06010-00)
$3.12¢1 558
#32
RIVET
$1.77¢886
#33
FOOTREST, REAR 2
$27.29¢13 645
#34
BRACKET 5
$203.57¢101 787
#35
SPRING, COMPRESSION
$3.51¢1 754
#36
BALL
$6.87¢3 433
#37
WASHER, SPECIAL
$7.35¢3 674
#38
PIN,CLEVIS
$8.21¢4 105
#39
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
#40
Bolt, Flange
$9.12¢4 560
#41
Damper
$16.26¢8 131
