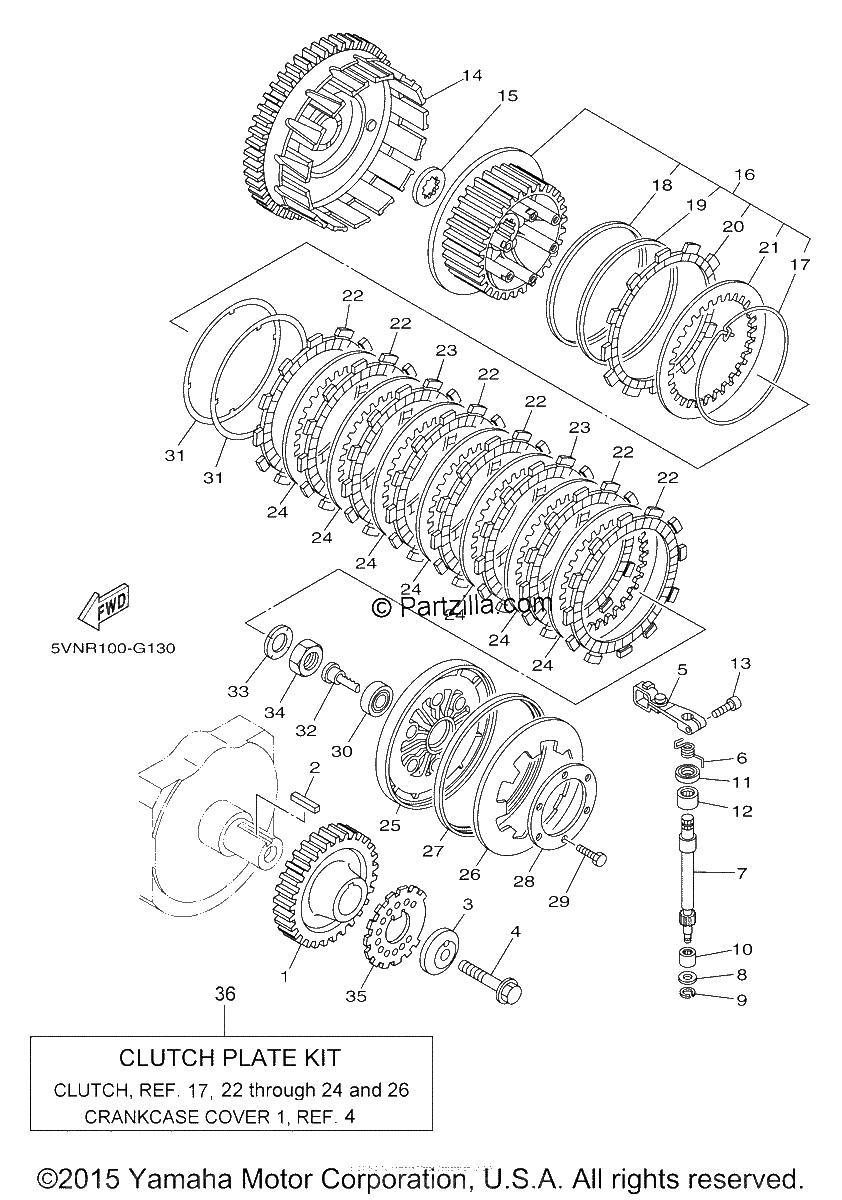

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
SPRING, CLUTCH 2
$156.16¢78 081
#1
GEAR, PRIMARY DRIVE
$235.49¢117 744
#2
KEY, FEATHER
$8.30¢4 150
#3
SPACER 1
$34.81¢17 406
#4
BOLT
$15.66¢7 831
#5
PUSH LEVER ASSY
$116.36¢58 181
#6
SPRING, TORSION
$7.56¢3 781
#7
AXLE, PUSH LEVER
$88.89¢44 444
#8
WASHER, PLATE
$2.99¢1 494
#9
CIRCLIP
$3.60¢1 800
#10
BEARING
$23.80¢11 900
#11
OIL SEAL
$8.73¢4 363
#12
BEARING
$37.81¢18 906
#13
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#14
PRIMARY DRIVEN GEAR COMP.
No Disponible
#15
PLATE, THRUST 1
$21.51¢10 756
#16
CLUTCH BOSS ASSY
$362.33¢181 163
#17
RING SET
$8.97¢4 488
#18
PLATE, SEAT
$30.26¢15 131
#19
SPRING, CUSHION
$55.58¢27 788
#20
PLATE, FRICTION
$18.80¢9 400
#21
PLATE, CLUTCH 1
$13.57¢6 788
#22
PLATE, FRICTION 3
$22.17¢11 087
#23
PLATE, FRICTION
$18.80¢9 400
#24
PLATE, CLUTCH 1
$13.57¢6 788
#25
PLATE, PRESSURE 1
$97.83¢48 913
#26
SPRING, CLUTCH 2
$156.16¢78 081
#27
HOUSING, SPRING
$34.04¢17 019
#28
PLATE, PRESSURE 2
$13.35¢6 675
#29
BOLT,HEXAGON (replaces 97007-06025-00)
$3.55¢1 775
#30
BEARING
$33.26¢16 631
#31
SPRING, CUSHION
$81.21¢40 606
#32
ROD, PUSH 1
$60.88¢30 438
#33
WASHER, CONICAL SPRING
$17.49¢8 744
#34
NUT
$15.14¢7 569
#35
ROTOR
$22.86¢11 431
#36
CLUTCH PLATE KIT
$236.42¢118 212
