MIDDLE DRIVE GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

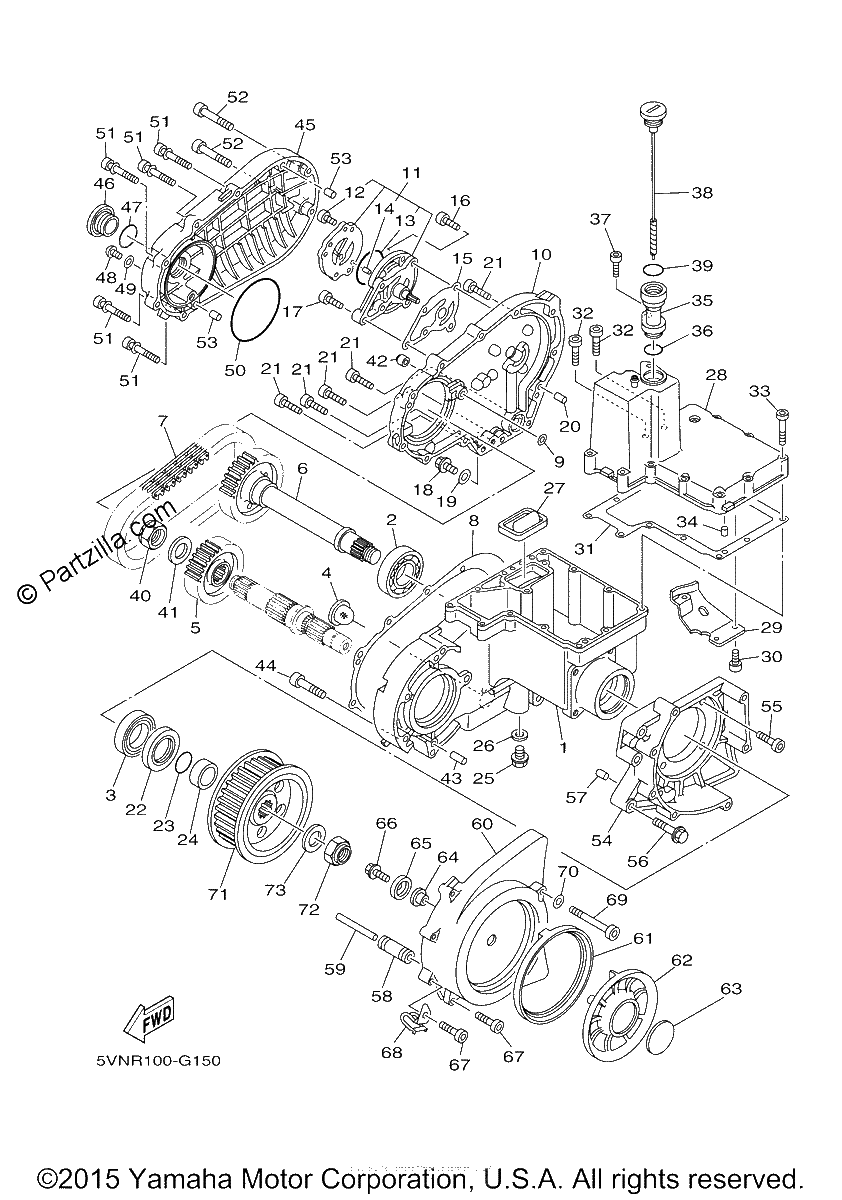

Diagrama de MIDDLE DRIVE GEAR

Repuestos

#1
5VN-17541-00-00
CASE, TRANSFER 1
$1031.24¢515 619
1
#2
93306-00907-00
BEARING
$89.40¢44 700
1
#3
93306-20627-00
BEARING
$80.94¢40 469
1
#4
4WM-13286-00-00
CLEANER
$17.27¢8 638
1
#5
4WM-17682-00-00
SPROCKET, CHAIN DRIVE
$145.40¢72 700
1
#6
5VN-1755A-00-00
MIDDLE DRIVEN SHAFT ASSY
$591.09¢295 544
1
#7
4WM-16139-00-00
CHAIN, PRIMARY
$296.95¢148 475
1
#8
5PX-17929-00-00
GASKET 1
$39.35¢19 675
1
#9
4WM-17931-00-00
GASKET 2
$5.66¢2 831
1
#10
5PX-17542-00-00
CASE, TRANSFER 2
$520.74¢260 369
1
#11
5PX-13100-00-00
OIL PUMP ASSY
$340.49¢170 244
1
#12
91312-06014-00
bolt
$5.65¢2 825
1
#13
93210-48214-00
O-RING
$10.50¢5 250
1
#14
93603-07073-00
PIN, DOWEL
$6.96¢3 481
1
#15
4WM-13116-00-00
GASKET, PUMP CASE
$6.19¢3 094
1
#16
90110-06138-00
BOLT, HEXAGON SOCKET HEAD
$3.94¢1 969
1
#17
91317-06025-00
BOLT
$2.44¢1 219
1
#18
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.94¢3 969
1
#19
90430-08119-00
GASKET
$6.91¢3 456
1
#20
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#21
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#22
93102-40330-00
OIL SEAL
$25.56¢12 781
1
#23
93210-27672-00
O-RING
$5.47¢2 738
1
#24
90387-304K7-00
COLLAR
$32.90¢16 450
1
#25
90340-14132-00
PLUG, STRAIGHT SCREW
$3.15¢1 575
1
#26
214-11198-01-00
GASKET
$3.23¢1 613
1
#27
4WM-13421-00-00
STRAINER 2
$17.64¢8 819
1
#28
5MB-17631-10-00
CAP
$378.56¢189 281
1
#29
4WM-1763A-00-00
PLATE, CAP
$54.96¢27 481
1
#30
91317-06014-00
BOLT
$8.39¢4 194
1
#31
4WM-17932-00-00
GASKET, 3
$27.83¢13 913
1
#32
90110-06138-00
BOLT, HEXAGON SOCKET HEAD
$3.94¢1 969
1
#33
91317-06040-00
BOLT
$4.11¢2 056
1
#34
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#35
5MB-13132-10-00
JOINT
$86.10¢43 050
1
#36
93210-23326-00
O-RING
$7.34¢3 669
1
#37
91317-06025-00
BOLT
$2.44¢1 219
1
#38
4WM-15362-00-00
PLUG, OIL LEVEL
$34.51¢17 256
1
#39
93210-27778-00
O-RING
$8.21¢4 106
1
#39
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#40
90179-22018-00
NUT
$28.44¢14 219
1
#41
90208-22002-00
WASHER, CONICAL SPRING
$19.99¢9 994
1
#42
90179-08004-00
NUT
$9.06¢4 531
1
#43
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#44
91314-08050-00
BOLT, HEXAGON SOCKET HEAD
$4.30¢2 150
1
#45
4WM-15779-00-00
COVER
$534.19¢267 094
1
#46
90340-32140-00
PLUG, STRAIGHT SCREW
No Disponible
1
#47
93210-32172-00
O-Ring
$6.88¢3 438
1
#48
92014-06010-00
BOLT, BUTTON HEAD
$6.29¢3 144
1
#49
90430-06016-00
GASKET
$7.35¢3 675
1
#50
93210-92448-00
O-RING
$10.61¢5 306
1
#51
90110-06312-00
BOLT, HEXAGON SOCKET HEAD
$3.49¢1 744
1
#52
90110-08003-00
BOLT, HEXAGON SOCKET HEAD
$4.68¢2 338
1
#54
5VN-17613-00-00
STAY
$232.60¢116 300
1
#55
91317-08030-00
BOLT
$7.34¢3 669
1
#56
95817-10050-00
BOLT, FLANGE
$5.99¢2 994
1
#57
99480-10018-00
PIN
No Disponible
1
#58
4WM-17653-00-00
SLIDER
$8.16¢4 081
1
#59
93606-76002-00
PIN, DOWEL
$5.15¢2 575
1
#60
5VN-17076-00-00
COVER
$329.75¢164 875
1
#61
4WM-15449-00-00
RING, RUBBER
$17.86¢8 931
1
#62
4WM-17665-01-00
PLATE 1
$250.56¢125 281
1
#63
4WM-17675-00-00
PLATE 2
$34.74¢17 369
1
#64
4H7-15486-00-00
GROMMET
$10.39¢5 194
1
#65
90209-06096-00
WASHER
$7.81¢3 906
1
#66
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#67
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#68
90462-06003-00
CLAMP
$8.03¢4 013
1
#69
90110-08002-00
BOLT, HEXAGON SOCKET HEAD
$8.35¢4 175
1
#70
90201-08035-00
WASHER, PLATE
$4.09¢2 044
1
#71
5VN-17651-00-00
PULLEY, BELT
$314.93¢157 463
1
#72
90179-22018-00
NUT
$28.44¢14 219
1
#73
90208-22002-00
WASHER, CONICAL SPRING
$19.99¢9 994
1
