FENDER

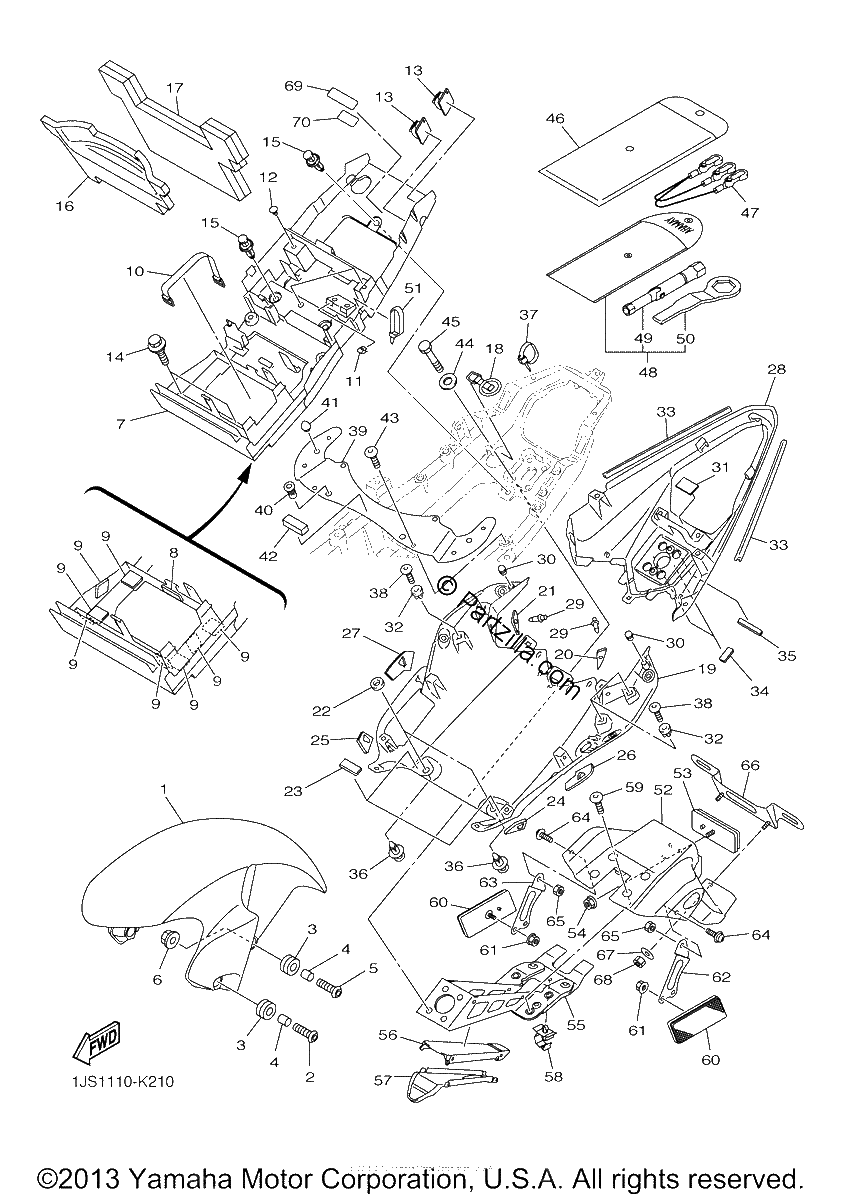

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
FENDER, FRONT | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$175.32¢87 663
#0
FENDER, REAR | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$195.40¢97 700
#0
FENDER 2 | Use for Color Black Metallic X ( SMX / 0903 )
$224.30¢112 150
#1
FENDER, FRONT
$158.35¢79 175
#2
BOLT, HEX. SOCKET BUTTON
$3.96¢1 981
#3
GROMMET
$7.43¢3 713
#4
COLLAR
$7.34¢3 669
#5
BOLT, HEX. SOCKET BUTTON
$3.98¢1 988
#6
NUT, FLANGE
$2.44¢1 219
#7
BOX, BATTERY 1
No Disponible
#8
DAMPER 2
$6.45¢3 225
#9
DAMPER
$7.86¢3 931
#10
BAND, BATTERY
$25.96¢12 981
#11
NUT, SPRING
$7.03¢3 513
#12
PLUG
$6.76¢3 381
#13
CLAMP
$4.59¢2 294
#14
BOLT
$7.71¢3 856
#15
RIVET
$4.45¢2 225
#16
PROTECTOR
$30.92¢15 462
#17
DAMPER PLATE ASSY
$25.95¢12 975
#18
BAND, TOOL
$5.84¢2 919
#19
FENDER, REAR | Use for Color Black Metallic X ( SMX / 0903 )
$216.25¢108 125
#20
SEAT
$13.69¢6 844
#21
SEAT 2
$13.75¢6 875
#22
SEAL 2
$9.00¢4 500
#23
DAMPER
$1.10¢550
#24
SEAL
$9.90¢4 950
#25
SEAL, 2
$9.86¢4 931
#26
SEAL, 3
$10.04¢5 019
#27
SEAL, 4
$10.14¢5 069
#28
FENDER 2
$207.97¢103 988
#29
RIVET
$6.45¢3 225
#30
PLUG
$6.76¢3 381
#31
PLATE 1
$7.95¢3 975
#32
GROMMET
$7.48¢3 738
#33
SEAL 1
$19.38¢9 688
#34
SEAL 1
$8.38¢4 188
#35
SEAL 4
$10.30¢5 150
#36
RIVET
$4.45¢2 225
#37
CLAMP
$3.30¢1 650
#38
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
#39
BRACKET
$88.89¢44 444
#39
Rear Reflector
$27.07¢13 538
#40
NUT
$5.26¢2 631
#41
DAMPER 2
$6.91¢3 456
#42
DAMPER
$7.60¢3 800
#43
BOLT, BUTTON HEAD
$7.41¢3 706
#44
WASHER, SPECIAL 1
$16.06¢8 031
#45
BOLT,HEXAGON (replaces 97007-06025-00)
$3.55¢1 775
#46
TOOL KIT
$65.53¢32 763
#47
HELMET HANGER ASSY
$37.80¢18 900
#48
TOOL KIT, 2
$47.27¢23 638
#49
BOX, SPARK PLUG
$40.96¢20 481
#50
SPANNER, SPECIAL
$18.09¢9 044
#51
CLAMP
$6.81¢3 406
#52
GUARD, MUD
$37.80¢18 900
#54
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
#55
REAR STAY COMP.
$197.10¢98 550
#56
COVER, REAR FENDER 1
$12.76¢6 381
#57
COVER, REAR FENDER 2
$12.76¢6 381
#58
CLAMP
$5.29¢2 644
#59
BOLT
$13.71¢6 856
#60
Rear Reflector
$27.07¢13 538
#61
NUT,FLANGE (SILVER)
$0.91¢456
#62
BRACKET, REAR STAY
$12.84¢6 419
#63
BRACKET, REAR STAY 2
$12.54¢6 269
#64
SCREW, WITH WASHER
$7.39¢3 694
#65
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
#66
BRACKET, LICENSE
$29.30¢14 650
#67
WASHER, PLATE
$4.49¢2 244
#68
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
#69
LABEL, CAUTION
$4.94¢2 469
#70
LABEL, CAUTION
$5.32¢2 662
