CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

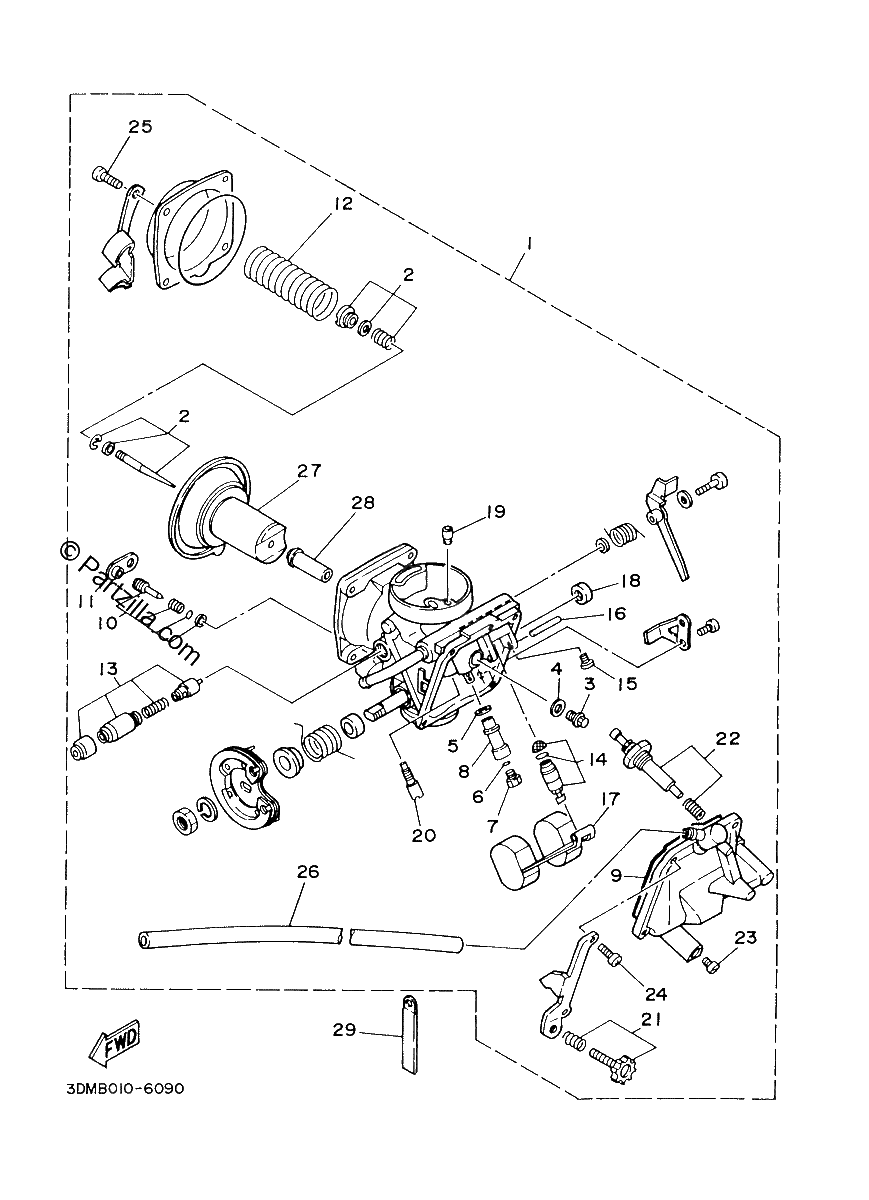

Diagrama de CARBURETOR

Repuestos

#1
3BG-14900-01-00
CARBURETOR ASSY | FOR CALIFORNIA
$1400.18¢700 088
1
#1
2UJ-14900-01-00
CARBURETOR ASSY | U49
$1345.25¢672 625
1
#2
3BG-1490J-00-00
NEEDLE SET
$33.20¢16 600
1
#3
1HX-14565-00-00
SCREW
$20.20¢10 100
1
#4
137-14153-00-00
WASHER, MAIN JET
$7.69¢3 844
1
#5
1AE-14237-00-00
GASKET
$7.60¢3 800
1
#6
1AE-14227-00-00
O-RING
$10.39¢5 194
1
#7
620-14231-22-A0
JET, MAIN (110)
$14.40¢7 200
1
#8
1AE-14261-00-00
HOLDER
$28.46¢14 231
1
#9
1HX-14147-00-00
O-RING
$18.90¢9 450
1
#10
12R-14105-00-00
PILOT SCREW SET
$17.96¢8 981
1
#11
3F9-14118-00-00
CAP
$8.97¢4 488
1
#12
1HX-14933-00-00
SPRING, DIAPHRAGM
$34.66¢17 331
1
#13
3DM-1410A-10-00
STARTER SET
$97.96¢48 981
1
#14
3CF-14107-10-00
NEEDLE VALVE SET
$37.81¢18 906
1
#15
1FN-14565-00-00
SCREW
$7.65¢3 825
1
#16
353-14186-00-00
PIN, FLOAT
$8.03¢4 013
1
#17
1HX-14985-00-00
FLOAT
$87.00¢43 500
1
#18
256-14997-00-00
SEAL
$12.01¢6 006
1
#19
1HX-14231-31-00
JET, MAIN (#155)
$12.21¢6 106
1
#20
22F-14142-17-00
JET, PILOT (#17.5)
$9.45¢4 725
1
#21
1HX-14103-00-00
THROTTLE SCREW SET
$24.35¢12 175
1
#22
3DM-14504-01-00
ROD SET
$59.90¢29 950
1
#23
12R-14191-00-00
PLUG, DRAIN
$17.01¢8 506
1
#24
98580-04014-00
SCREW, PAN HEAD
$3.33¢1 663
1
#25
98511-04012-00
. Screw, Pan Head
No Disponible
1
#26
50H-14987-00-00
HOSE
$44.40¢22 200
1
#27
3BG-14940-00-00
DIAPHRAGM ASSY
$283.19¢141 594
1
#28
3DM-14141-30-00
MAIN NOZZLE (0-0)
$42.99¢21 494
1
#29
3XV-14243-00-00
CLAMP
No Disponible
1
