REAR ARM SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

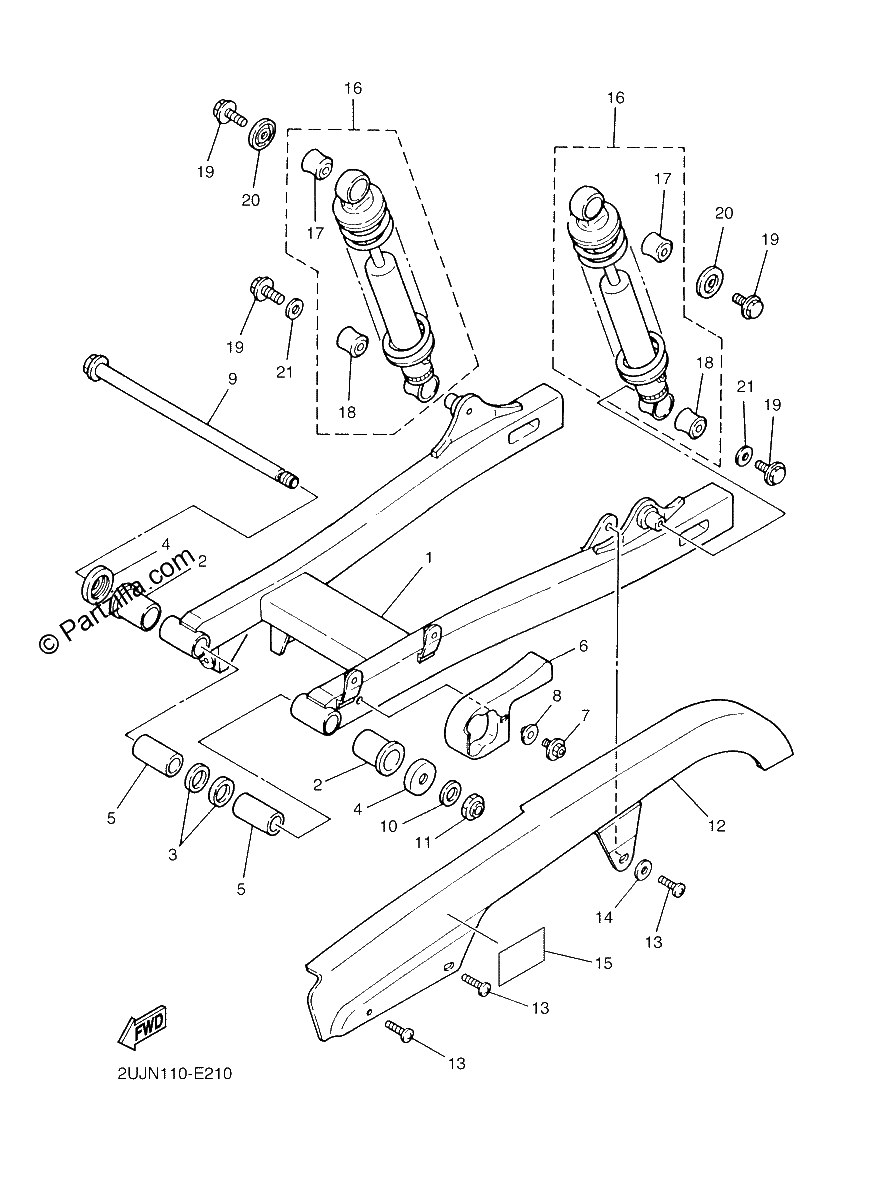

Diagrama de REAR ARM SUSPENSION

Repuestos

#1
3LS-22110-00-33
REAR ARM COMP. | YB
$431.02¢215 510
1
#2
90386-18163-00
BUSH
$13.33¢6 664
1
#3
93109-18020-00
OIL SEAL,SDO-TYPE
$12.25¢6 124
1
#4
55K-22129-00-00
COVER, THRUST 2
$21.18¢10 592
1
#5
90380-12121-00
BUSH, SOLID
$18.03¢9 016
1
#6
55K-22151-01-00
SEAL, GUARD
$75.32¢37 662
1
#7
90119-05062-00
BOLT, WITH WASHER
$6.14¢3 070
1
#8
90209-06187-00
WASHER,SPEC'L SHAP
$6.76¢3 381
1
#9
2UJ-22141-01-00
SHAFT, PIVOT
$25.30¢12 650
1
#10
92990-12200-00
WASHER, PLAIN
$6.75¢3 375
1
#11
90185-12164-00
NUT, SELF-LOCKING
$4.30¢2 151
1
#12
3LS-22311-00-00
CASE, CHAIN
$185.82¢92 909
1
#13
98980-06012-00
SCREW, BIND
$6.75¢3 375
1
#14
90201-06020-00
WASHER, PLATE (replaces 90201-06058-00)
$6.88¢3 439
1
#15
3CK-21668-A1-00
LABEL, TIRE
$8.53¢4 267
1
#16
2UJ-22210-00-00
SHOCK ABSORBER ASSY, REAR
$290.10¢145 050
1
#17
447-22217-21-00
BUSH, REAR SHOCK ABSORBER
$6.39¢3 197
1
#18
447-22216-20-00
BUSH, REAR SHOCK ABSORBER
$6.88¢3 439
1
#19
95024-08012-00
BOLT, FLANGE (SMALL HEAD)
$6.75¢3 375
1
#20
1UJ-22243-00-00
WASHER 1
$7.03¢3 513
1
#21
90201-087G2-00
WASHER, PLATE
$3.40¢1 702
1
