FLASHER LIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

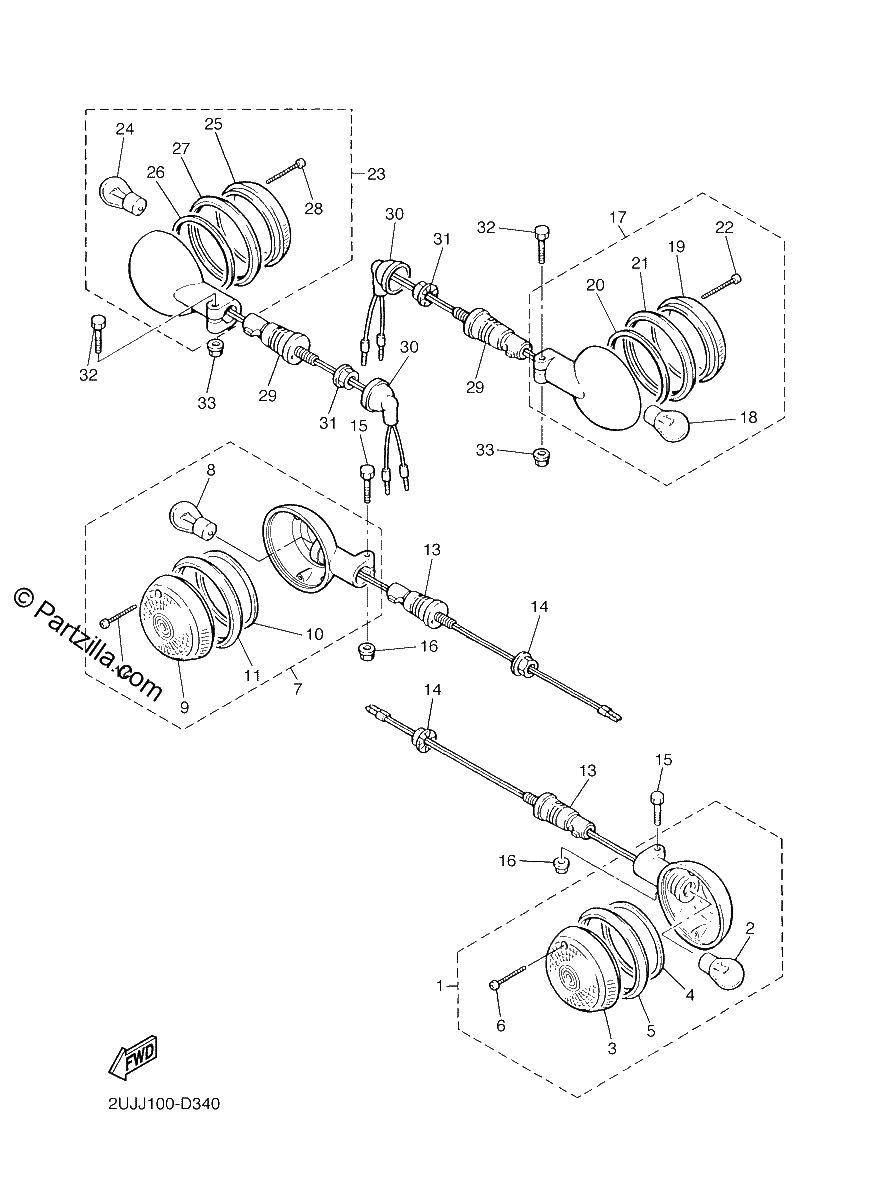

Diagrama de FLASHER LIGHT

Repuestos

#1
42X-83310-K1-00
FRONT FLASHER LIGHT ASSY 1
$56.91¢28 457
1
#2
256-84714-61-00
BULB 12V32/3CP
$10.97¢5 485
1
#3
42X-83312-10-00
LENS, FLASHER
$14.09¢7 044
1
#4
1D6-83313-00-00
GASKET, FLASHER LENS
$6.99¢3 496
1
#5
1D6-83363-00-00
LENS, RIM
$25.69¢12 846
1
#6
90151-03003-00
SCREW, COUNTERSUNK
$6.69¢3 347
1
#7
42X-83320-K1-00
FRONT FLASHER LIGHT ASSY 2
$53.93¢26 967
1
#8
256-84714-61-00
BULB 12V32/3CP
$10.97¢5 485
1
#9
42X-83312-20-00
LENS, FLASHER
$14.19¢7 095
1
#10
1D6-83313-00-00
GASKET, FLASHER LENS
$6.99¢3 496
1
#11
1D6-83363-10-00
LENS, RIM
$25.62¢12 811
1
#12
90151-03003-00
SCREW, COUNTERSUNK
$6.69¢3 347
1
#13
1AA-83318-00-00
STAY,FLASHER 1
$43.49¢21 746
1
#14
95304-12600-00
NUT
$7.30¢3 651
1
#15
95024-06030-00
BOLT,FLANGE
$6.75¢3 375
1
#16
95780-06500-00
NUT, FLANGE
$2.16¢1 081
1
#17
3DN-83330-01-00
REAR FLASHER LIGHT ASSY 1
$69.60¢34 799
1
#18
256-83311-70-XX
BULB, 12V27W 1156 (replaces 256-83311-70-00)
No Disponible
1
#19
42X-83312-20-00
LENS, FLASHER
$14.19¢7 095
1
#20
1D6-83313-00-00
GASKET, FLASHER LENS
$6.99¢3 496
1
#21
1D6-83363-10-00
LENS, RIM
$25.62¢12 811
1
#22
90151-03003-00
SCREW, COUNTERSUNK
$6.69¢3 347
1
#23
3DN-83340-01-00
REAR FLASHER LIGHT ASSY 2
$83.54¢41 768
1
#24
256-83311-70-XX
BULB, 12V27W 1156 (replaces 256-83311-70-00)
No Disponible
1
#25
42X-83312-10-00
LENS, FLASHER
$14.09¢7 044
1
#26
1D6-83313-00-00
GASKET, FLASHER LENS
$6.99¢3 496
1
#27
1D6-83363-00-00
LENS, RIM
$25.69¢12 846
1
#28
90151-03003-00
SCREW, COUNTERSUNK
$6.69¢3 347
1
#29
1AA-83318-00-00
STAY,FLASHER 1
$43.49¢21 746
1
#30
18G-83365-00-00
CAP
$19.14¢9 568
1
#31
95304-12600-00
NUT
$7.30¢3 651
1
#32
95024-06030-00
BOLT,FLANGE
$6.75¢3 375
1
#33
95780-06500-00
NUT, FLANGE
$2.16¢1 081
1
