ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

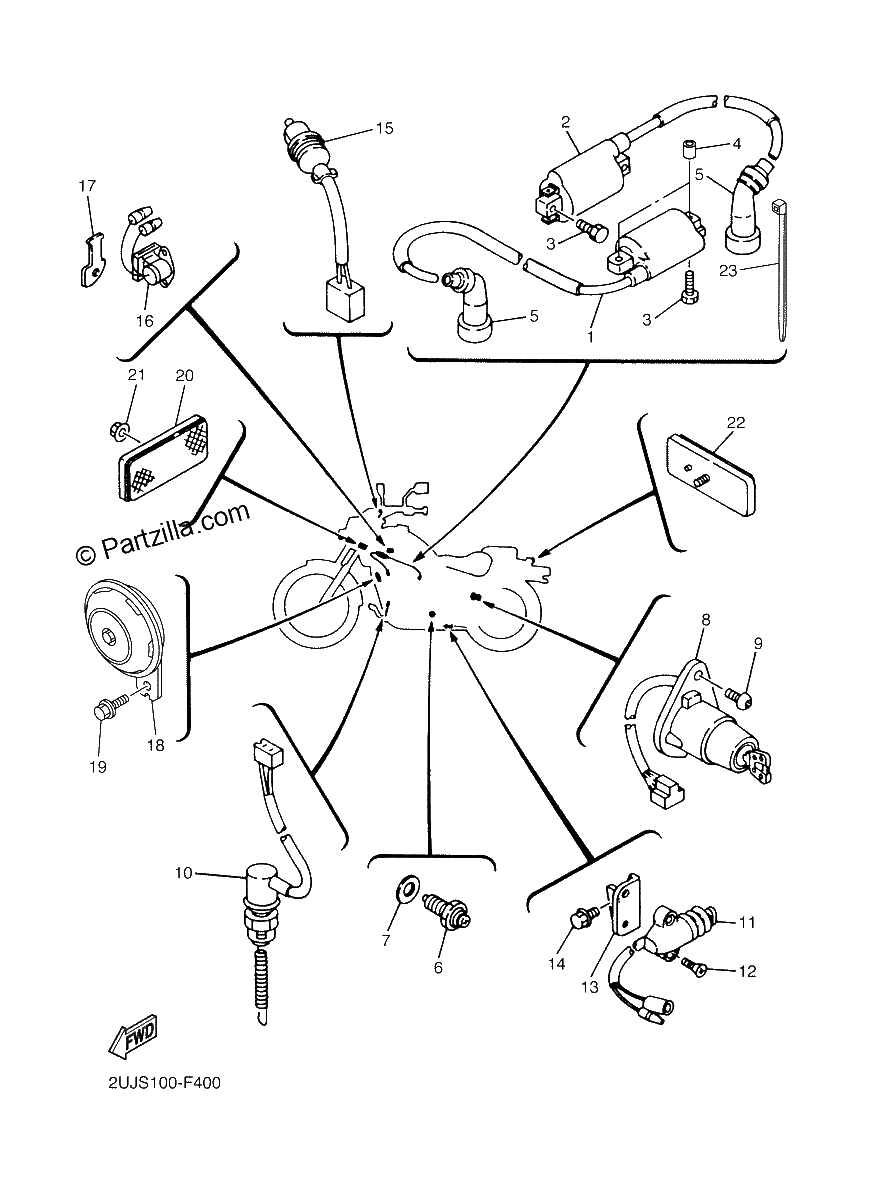

Diagrama de ELECTRICAL 2

Repuestos

#1
4DN-82320-01-00
Ignition Coil Assy
$107.97¢53 987
1
#2
4DN-82320-01-00
Ignition Coil Assy
$107.97¢53 987
1
#3
97027-05020-00
BOLT
$2.71¢1 357
1
#4
90445-07176-00
HOSE (L200) | FOR CAL
$7.72¢3 858
1
#5
3NS-82370-00-00
PLUG CAP ASY
$35.58¢17 790
1
#6
4GY-82540-10-00
NEUTRAL SWITCH ASSY
$36.73¢18 366
1
#7
90430-10148-00
Gasket
$5.21¢2 605
1
#8
2UJ-82510-00-00
Main Switch Assy
$248.14¢124 068
1
#9
90149-06228-00
SCREW,SPEC'L SHAPE
$6.88¢3 439
1
#10
3XV-82530-01-00
Stop Switch Assy
No Disponible
1
#11
3LD-82566-60-00
SWITCH,SIDE STAND
$54.68¢27 341
1
#12
98507-05014-00
SCREW, PAN HEAD
$5.76¢2 881
1
#13
2UJ-82565-00-00
PANEL, SWITCH
$17.04¢8 522
1
#14
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
#15
2UJ-83980-00-00
FRONT STOP SWITCH ASSY
$43.32¢21 660
1
#16
5FU-82560-20-00
THERMO SWITCH ASSY
$31.76¢15 881
1
#17
3BG-82571-00-00
PANEL, SWITCH
$5.11¢2 553
1
#18
1HX-83371-11-00
HORN
$39.55¢19 774
1
#19
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
#20
11H-85110-01-00
REFLECTOR ASSY
$22.93¢11 466
1
#21
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
#22
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#23
90464-16061-00
BAND
$7.68¢3 841
1
