REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

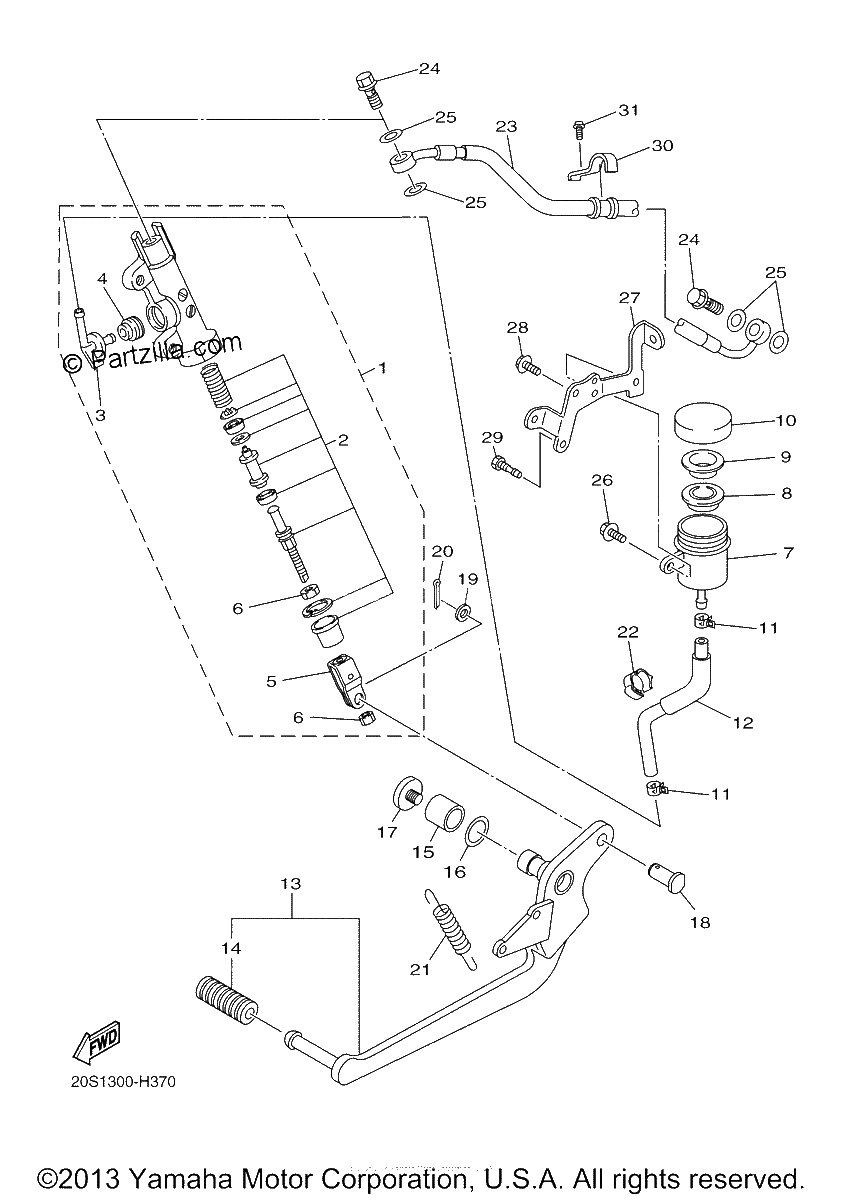

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
2D1-2583V-00-00
RR. MASTER CYLINDER
$229.79¢114 896
1
#2
5VX-W0042-51-00
CYLINDER KIT, MASTER
$92.60¢46 299
1
#3
2D1-2582A-00-00
JOINT
$112.06¢56 028
1
#4
4BP-2585F-01-00
O-RING
$10.48¢5 238
1
#5
4BP-27222-02-00
JOINT
$29.55¢14 777
1
#6
90170-08010-00
NUT
$6.89¢3 444
1
#7
4P5-25894-00-00
TANK, RESERVOIR
$15.50¢7 751
1
#8
5SL-25854-00-00
DIAPHRAGM, RESERVOIR
$20.00¢9 999
1
#9
5SL-25855-00-00
BUSH, DIAPHRAGM
$7.38¢3 691
1
#10
5SL-25852-00-00
CAP, RESERVOIR
$26.16¢13 081
1
#11
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
1
#12
20S-25895-00-00
HOSE, RESERVOIR
$20.35¢10 177
1
#13
20S-27200-01-00
PEDAL, BRAKE
$126.66¢63 330
1
#14
5EB-18113-00-00
COVER, SHIFT PEDAL
$7.82¢3 910
1
#15
90386-14171-00
BUSH
$7.44¢3 720
1
#16
90206-14086-00
WASHER, WAVE
$6.76¢3 381
1
#17
90110-06119-00
BOLT, HEXAGON SOCKET
$5.47¢2 737
1
#18
90240-08005-00
PIN, CLEVIS
$6.75¢3 375
1
#19
90201-08066-00
WASHER, PLATE
$6.95¢3 473
1
#20
91490-20015-00
PIN. COTTER
$2.02¢1 012
1
#21
90506-23008-00
SPRING, TENSION
$6.46¢3 231
1
#22
90464-16003-00
CLAMP
$6.87¢3 433
1
#23
20S-2581K-00-00
HOSE, BRAKE 5
$64.38¢32 188
1
#24
90401-10020-00
BOLT, UNION
$9.07¢4 537
1
#25
90430-10005-00
GASKET
$7.72¢3 858
1
#26
90119-06137-00
BOLT, WITH WASHER
$6.83¢3 415
1
#27
20S-21228-00-00
BRACKET, RESERVE TANK
$11.74¢5 871
1
#28
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#29
90153-06034-00
SCREW, HEXAGON
$6.50¢3 249
1
#30
20S-2587A-00-00
HOLDER, BRAKE HOSE
$5.96¢2 978
1
#31
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
