FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

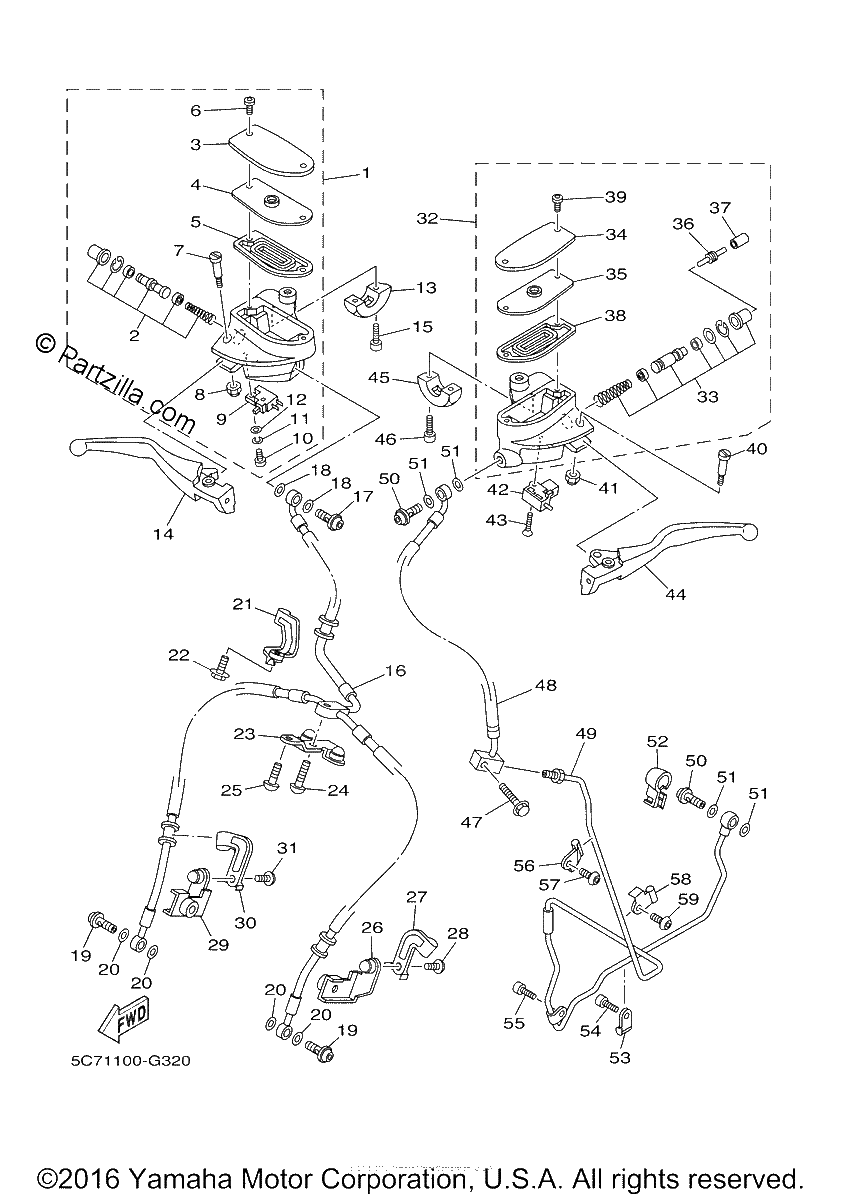

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
1D7-W2587-10-00
MASTER CYLINDER SUB ASSY
$911.18¢455 590
1
#2
5PX-W0041-00-00
CYLINDER KIT, MASTER
$72.21¢36 104
1
#3
1D7-25852-10-00
CAP, RESERVOIR
$126.37¢63 187
1
#4
1D7-2585B-00-00
PLATE, DIAPHRAGM
$42.04¢21 022
1
#5
1D7-25854-01-00
DIAPHRAGM, RESERVOIR
$28.73¢14 363
1
#6
1D7-2589H-00-00
SCREW
$14.72¢7 360
1
#7
1D7-2589F-00-00
BOLT, LEVER
$32.95¢16 474
1
#8
95604-06100-00
NUT, U
$7.30¢3 651
1
#9
4HM-83980-00-00
FRONT STOP SWITCH ASSY
$40.23¢20 114
1
#10
98502-04012-00
SCREW, PAN HEAD
No Disponible
1
#11
92907-04100-00
WASHER, SPRING
$6.55¢3 278
1
#12
92907-04600-00
WASHER
$1.35¢673
1
#13
1D7-26467-10-00
HOLDER
$86.23¢43 114
1
#14
1D7-83922-10-00
LEVER 2
$150.37¢75 187
1
#15
91317-06025-00
BOLT
$2.24¢1 121
1
#16
5C7-25872-00-00
HOSE, BRAKE 1
$201.32¢100 660
1
#17
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#18
90430-10005-00
GASKET
$7.72¢3 858
1
#19
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#20
90430-10005-00
GASKET
$7.72¢3 858
1
#21
5C7-25886-00-00
HOLDER, BRAKE HOSE
$47.93¢23 966
1
#22
95024-06016-00
BOLT, WASHER BASED
$7.30¢3 651
1
#23
5C7-25887-00-00
HOLDER, BRAKE HOSE
$19.83¢9 913
1
#24
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#25
90105-06090-00
BOLT, FLANGE
$6.82¢3 410
1
#26
5C7-25875-00-00
HOLDER, BRAKE HOSE 1
$44.78¢22 390
1
#27
5C7-25192-00-00
STAY
$17.32¢8 660
1
#28
90111-06031-00
BOLT, HEX. SOCKET BUTTON
$6.92¢3 461
1
#29
5C7-25876-00-00
HOLDER, BRAKE HOSE 2
$38.35¢19 176
1
#30
5C7-2519F-00-00
STAY 2
$17.32¢8 660
1
#31
90111-06031-00
BOLT, HEX. SOCKET BUTTON
$6.92¢3 461
1
#32
1D7-W2645-10-00
MASTER CYLINDER SUB ASSY
$678.49¢339 244
1
#33
5JW-W0099-00-00
CYLINDER KIT, MASTER (CLUTCH
$50.07¢25 036
1
#34
1D7-25852-60-00
CAP, RESERVOIR
$251.18¢125 591
1
#35
1D7-2585B-10-00
PLATE, DIAPHRAGM
$42.01¢21 005
1
#36
1D7-26464-00-00
ROD, PUSH
$74.69¢37 346
1
#37
3GM-26455-00-00
BUSH
$20.65¢10 327
1
#38
1D7-25854-11-00
DIAPHRAGM, RESERVOIR
$59.57¢29 785
1
#39
1D7-26475-00-00
HOLDER
$12.67¢6 336
1
#39
1D7-2589H-00-00
SCREW
$14.72¢7 360
1
#40
1D7-2589F-00-00
BOLT, LEVER
$32.95¢16 474
1
#41
95604-06100-00
NUT, U
$7.30¢3 651
1
#42
3YX-82917-01-00
SWITCH
$43.52¢21 758
1
#43
90151-03003-00
SCREW, COUNTERSUNK
$6.69¢3 347
1
#44
1D7-83912-10-00
LEVER 1
$148.96¢74 480
1
#45
1D7-26467-60-00
HOLDER
$86.23¢43 114
1
#46
91317-06025-00
BOLT
$2.24¢1 121
1
#47
90105-06791-00
BOLT, FLANGE
$2.71¢1 357
1
#48
5C7-26472-00-00
HOSE, CLUTCH 1
$88.96¢44 482
1
#49
5C7-26473-00-00
HOSE, CLUTCH 2
$172.13¢86 066
1
#50
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#51
90430-10005-00
GASKET
$7.72¢3 858
1
#52
1D7-26477-00-00
COVER
$7.64¢3 818
1
#54
91312-06014-00
bolt
$5.20¢2 599
1
#55
91312-06014-00
bolt
$5.20¢2 599
1
#56
5C7-26481-00-00
HOLDER, 2
$16.55¢8 274
1
#57
90111-06103-00
BOLT,HEX. SOCKET BUT
$5.65¢2 823
1
#58
5C7-26482-00-00
HOLDER, 3
$32.61¢16 307
1
#59
90111-06103-00
BOLT,HEX. SOCKET BUT
$5.65¢2 823
1
