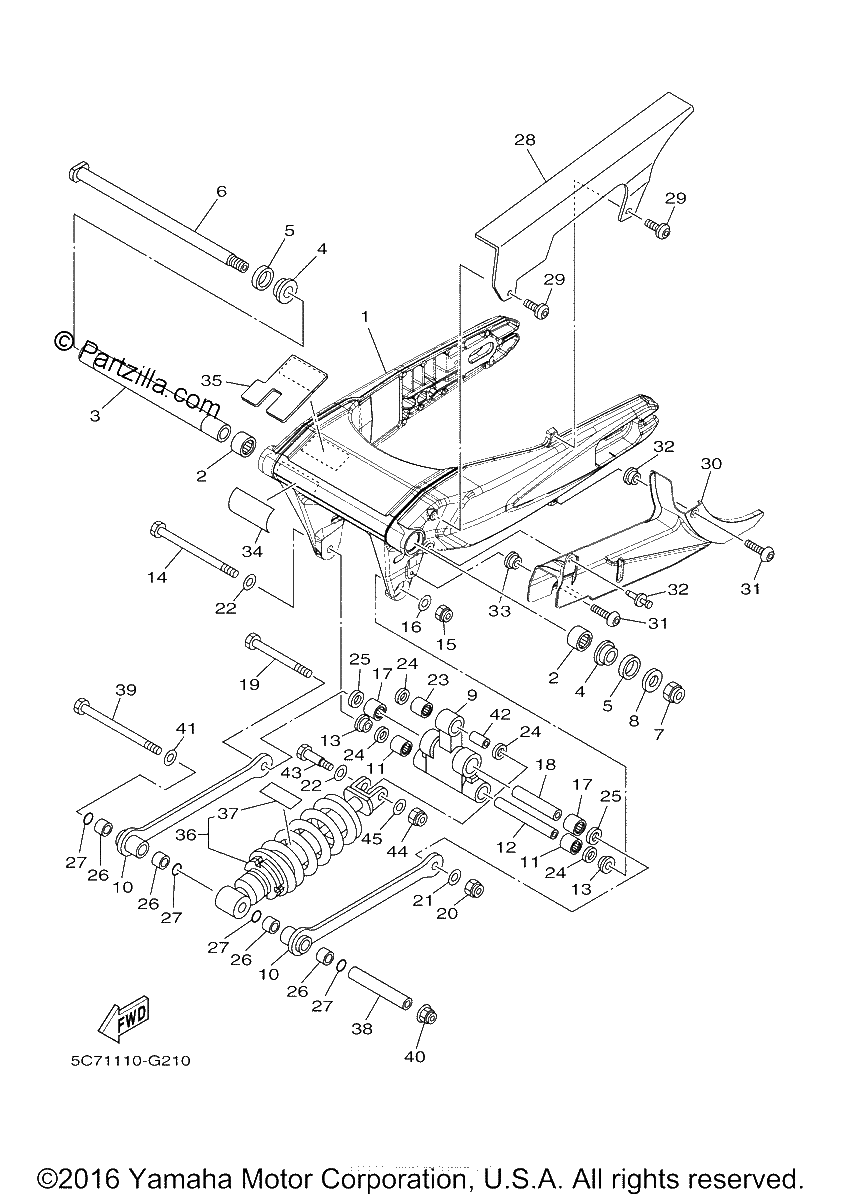

REAR ARM SUSPENSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP.
$1822.49¢911 244
#2
BEARING
$30.36¢15 181
#3
BUSH
$96.81¢48 406
#4
COLLAR, DISTANCE
$36.88¢18 438
#5
OIL SEAL
$15.26¢7 631
#6
SHAFT, PIVOT
$80.74¢40 369
#7
NUT, SELF-LOCKING
$18.90¢9 450
#8
WASHER, PLATE
$2.91¢1 456
#9
ARM, RELAY
$485.84¢242 919
#10
ARM 1
$163.10¢81 550
#11
BEARING
$34.30¢17 150
#12
COLLAR, ROD 1
$41.15¢20 575
#13
COLLAR
$12.71¢6 356
#14
BOLT
$13.57¢6 788
#15
NUT, U
$4.88¢2 438
#16
WASHER, PLATE
$6.14¢3 069
#17
BEARING
$34.98¢17 488
#18
COLLAR
$27.71¢13 856
#19
BOLT
$11.34¢5 669
#20
NUT, U
$4.88¢2 438
#21
WASHER, PLATE
$6.14¢3 069
#22
WASHER, PLATE
$7.48¢3 738
#23
BEARING
$39.89¢19 944
#24
OIL SEAL
$8.03¢4 013
#25
OIL SEAL
$12.75¢6 375
#26
BUSH, BIMETAL FORMED
$13.99¢6 994
#27
O-RING
$5.41¢2 706
#28
CHAIN CASE ASSY
$366.14¢183 069
#29
SCREW,SPEC'L SHAPE
$5.07¢2 537
#30
CASE, CHAIN 2
$82.39¢41 194
#31
SCREW,SPEC'L SHAPE
$5.07¢2 537
#32
RIVET
$5.19¢2 594
#33
COLLAR
$8.09¢4 044
#34
SEAL 1
$12.90¢6 450
#35
COVER, THRUST 1
$21.27¢10 638
#36
SHOCK ABSORBER ASSY, REAR
$919.96¢459 981
#37
LABEL, WARNING
$14.81¢7 406
#38
COLLAR
$31.90¢15 950
#39
BOLT
$12.79¢6 394
#40
NUT, SELF-LOCKING
$4.55¢2 275
#41
WASHER, PLATE
$6.14¢3 069
#42
COLLAR
$13.27¢6 637
#43
BOLT
$10.55¢5 275
#44
NUT, U
$7.35¢3 675
#45
WASHER, plate
$4.25¢2 125
