STEERING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

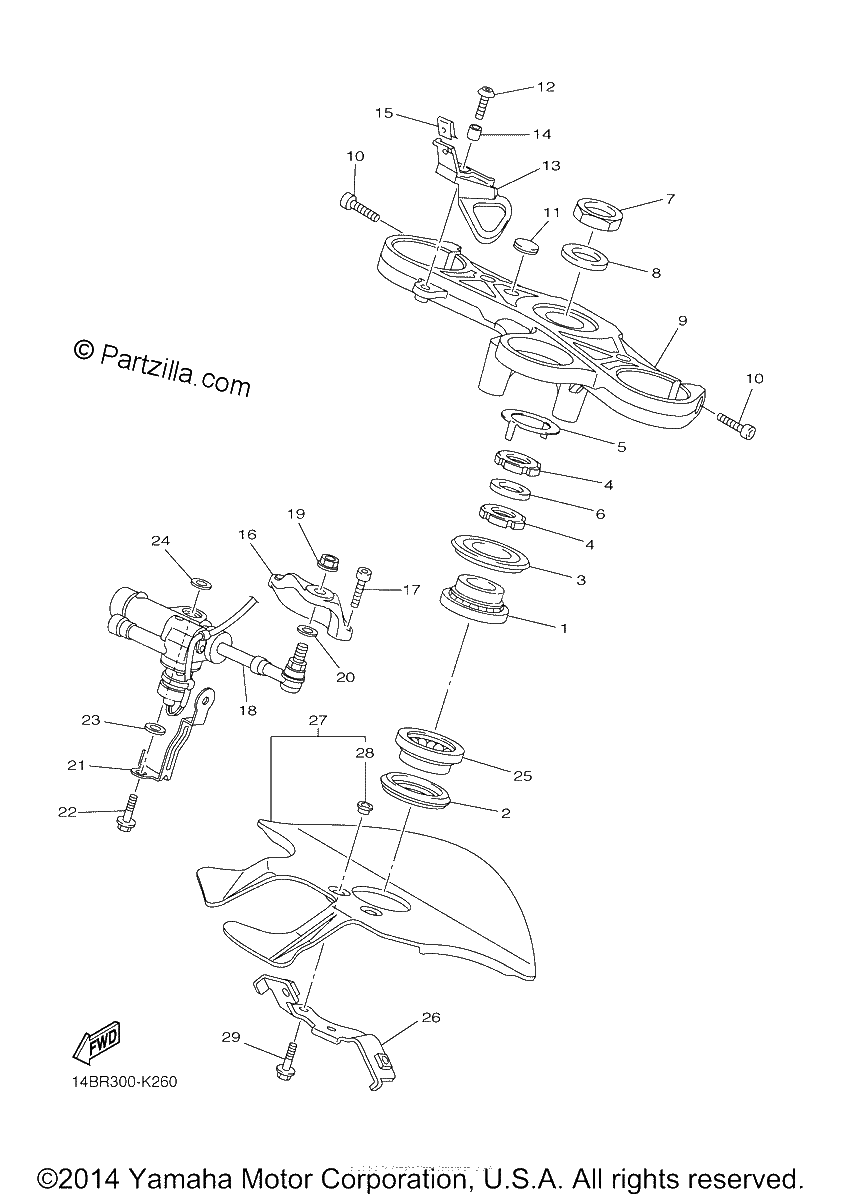

Diagrama de STEERING

Repuestos

#1
93399-99932-00
BEARING
$60.89¢30 446
1
#2
3FV-23462-00-00
SEAL, STEERING
$23.48¢11 742
1
#3
4XV-23415-01-00
COVER, BALL RACE 1
$22.52¢11 258
1
#4
90179-30691-00
NUT
$30.80¢15 399
1
#5
4XV-23418-00-00
WASHER, SPECIAL
$16.87¢8 435
1
#6
90202-30235-00
WASHER, PLATE
$6.65¢3 323
1
#7
90170-28419-00
NUT
$38.31¢19 153
1
#8
90201-281U8-00
WASHER, PLATE
$9.29¢4 646
1
#9
14B-23435-30-00
CROWN, HANDLE
$188.44¢94 220
1
#10
91314-08030-00
BOLT, HEXAGON SOCKET HEAD
$2.51¢1 254
1
#11
14B-2836B-00-00
TUNING FORK MARK
$11.70¢5 848
1
#12
90111-06041-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#13
5VY-26292-11-00
STAY
$11.11¢5 555
1
#14
90387-06057-00
COLLAR
$6.75¢3 375
1
#15
90183-050A0-00
NUT, SPRING
$4.88¢2 438
1
#16
14B-23495-00-00
STAY, DAMPER
$37.10¢18 550
1
#17
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#18
14B-23490-00-00
HANDLEBAR SHIMMY DAMPER ASSY
$834.89¢417 444
1
#19
90185-08169-00
NUT, SELF-LOCKING
$7.77¢3 887
1
#20
90201-08M09-00
WASHER, PLATE
$6.45¢3 226
1
#21
45B-2331E-00-00
GUIDE, CABLE
$42.81¢21 407
1
#22
95817-08035-00
BOLT,FLANGE (replaces 90105-08108-00)
$7.30¢3 651
1
#23
90201-08649-00
WASHER,PLATE (replaces 90201-08093-00)
$6.88¢3 439
1
#24
5VY-26398-00-00
WASHER
$12.27¢6 135
1
#25
93399-99957-00
BEARING
$66.99¢33 494
1
#26
14B-23377-10-00
BRACKET, HORN
$18.49¢9 246
1
#27
14B-23808-00-00
STEERING, COVER. ASSY
$15.29¢7 648
1
#28
90560-06244-00
SPACER
$7.30¢3 651
1
#29
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
1
