EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

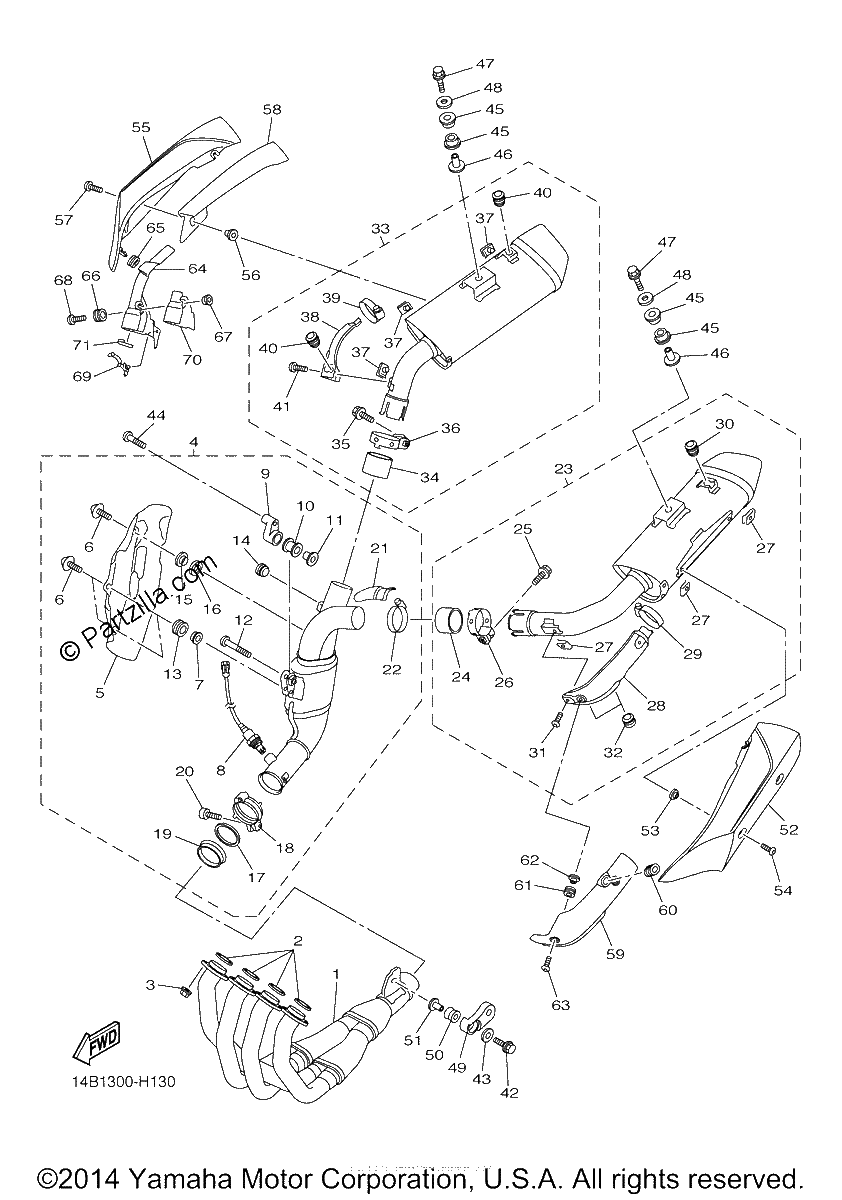

Diagrama de EXHAUST

Repuestos

#1
14B-14602-00-00
EXHAUST PIPE COMP.
$1765.24¢882 619
1
#2
4FM-14613-00-00
GASKET, EXHAUST PIPE
$11.73¢5 865
1
#3
90179-08410-00
NUT
$5.51¢2 754
1
#4
14B-14740-10-00
CATALYST ASSY.
$1735.34¢867 669
1
#5
14B-14738-00-00
PROTECTOR, MUFFLER 3
$108.62¢54 309
1
#6
90110-06200-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#7
90387-06112-00
COLLAR
$7.23¢3 617
1
#8
14B-8592A-00-00
SENSOR, OXYGEN
$167.60¢83 801
1
#9
14B-21445-00-00
STAY, MUFFLER 1
$34.79¢17 394
1
#10
4XV-27424-00-00
DAMPER, FOOTREST 2
$13.94¢6 969
1
#11
90387-08005-00
Collar
$14.97¢7 486
1
#12
92014-08035-00
BOLT, BUTTON HEAD
$7.30¢3 651
1
#13
90480-12579-00
GROMMET
$9.58¢4 790
1
#14
2D1-14737-00-00
DAMPER, MUFFLER
$5.58¢2 789
1
#15
90387-06217-00
COLLAR
$18.26¢9 131
1
#16
90201-08080-00
WASHER, PLATE
$6.70¢3 352
1
#17
14B-14623-00-00
GASKET, EXHAUST PIPE
$29.62¢14 812
1
#18
14B-14725-00-00
BAND, MUFFLER
$61.77¢30 883
1
#19
14B-14618-00-00
RING, STOPPER
$63.51¢31 757
1
#20
90110-06343-00
BOLT, HEXAGON SOCKET HEAD
$3.10¢1 553
1
#21
14B-1465U-00-00
PLATE, PROTECTOR 3
$22.20¢11 098
1
#22
90450-45001-00
HOSE CLAMP ASSY
$21.27¢10 638
1
#23
14B-14710-10-00
MUFFLER ASSY 1
No Disponible
1
#24
5VY-14714-00-00
GASKET, MUFFLER
$27.22¢13 610
1
#25
95814-08035-00
BOLT,FLANGE (replaces 95824-08035-00)
$7.30¢3 651
1
#26
3D8-14715-00-00
BAND, MUFFLER
$39.92¢19 958
1
#27
90183-060A2-00
NUT, SPRING
$9.13¢4 566
1
#28
14B-1465R-00-00
PLATE, PROTECTOR 1
$57.27¢28 635
1
#29
90450-45001-00
HOSE CLAMP ASSY
$21.27¢10 638
1
#30
3D7-14737-00-00
DAMPER, MUFFLER
$10.37¢5 187
1
#31
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#32
4FM-24181-00-00
DAMPER,LOCATING 1
$13.63¢6 814
1
#33
14B-14720-10-00
MUFFLER ASSY 2
$2010.19¢1 005 094
1
#34
5VY-14714-00-00
GASKET, MUFFLER
$27.22¢13 610
1
#35
95814-08035-00
BOLT,FLANGE (replaces 95824-08035-00)
$7.30¢3 651
1
#36
3D8-14715-00-00
BAND, MUFFLER
$39.92¢19 958
1
#37
90183-060A2-00
NUT, SPRING
$9.13¢4 566
1
#38
14B-1465T-00-00
PLATE, PROTECTOR 2
$50.69¢25 346
1
#39
90387-06170-00
COLLAR
$6.83¢3 415
1
#39
90450-45001-00
HOSE CLAMP ASSY
$21.27¢10 638
1
#40
3D7-14737-00-00
DAMPER, MUFFLER
$10.37¢5 187
1
#41
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#42
95817-08040-00
BOLT, FLANGE
$6.15¢3 076
1
#43
90201-087G2-00
WASHER, PLATE
$3.40¢1 702
1
#44
90111-08071-00
BOLT, HEX. SOCKET BUTTON
$8.96¢4 479
1
#45
14B-27424-00-00
DAMPER, FOOTREST 2
$7.15¢3 577
1
#46
90387-08020-00
COLLAR
$14.17¢7 084
1
#47
95814-08045-00
BOLT, FLANGE
$4.31¢2 156
1
#48
90201-08034-00
WASHER, PLATE
$6.87¢3 433
1
#49
14B-21446-00-00
STAY, MUFFLER 2
$51.11¢25 553
1
#50
5VY-14747-00-00
DAMPER, MUFFLER
$13.48¢6 739
1
#51
90387-08021-00
COLLAR
$9.33¢4 663
1
#52
14B-14718-00-00
PROTECTOR, MUFFLER 1
$24.12¢12 058
1
#54
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#55
14B-14728-00-00
PROTECTOR, MUFFLER 2
$32.58¢16 290
1
#56
90387-06170-00
COLLAR
$6.83¢3 415
1
#57
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#58
14B-1476P-00-00
SEAT
$13.56¢6 779
1
#59
14B-2163E-00-00
COVER, REAR FENDER 2
$16.73¢8 366
1
#60
90480-01558-00
Grommet
$4.31¢2 156
1
#61
90480-12581-00
GROMMET
$5.09¢2 547
1
#62
90387-087L0-00
COLLAR
$6.76¢3 381
1
#63
90111-06095-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#64
14B-2163F-00-00
COVER, REAR FENDER 3
$16.57¢8 286
1
#65
90480-01558-00
Grommet
$4.31¢2 156
1
#66
90480-12581-00
GROMMET
$5.09¢2 547
1
#67
90387-087L0-00
COLLAR
$6.76¢3 381
1
#68
90111-06095-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#69
90464-16006-00
CLAMP
$9.12¢4 560
1
#70
14B-1478P-00-00
SEAT
$9.98¢4 991
1
#71
14B-1479P-00-00
SEAT 5
$3.48¢1 742
1
