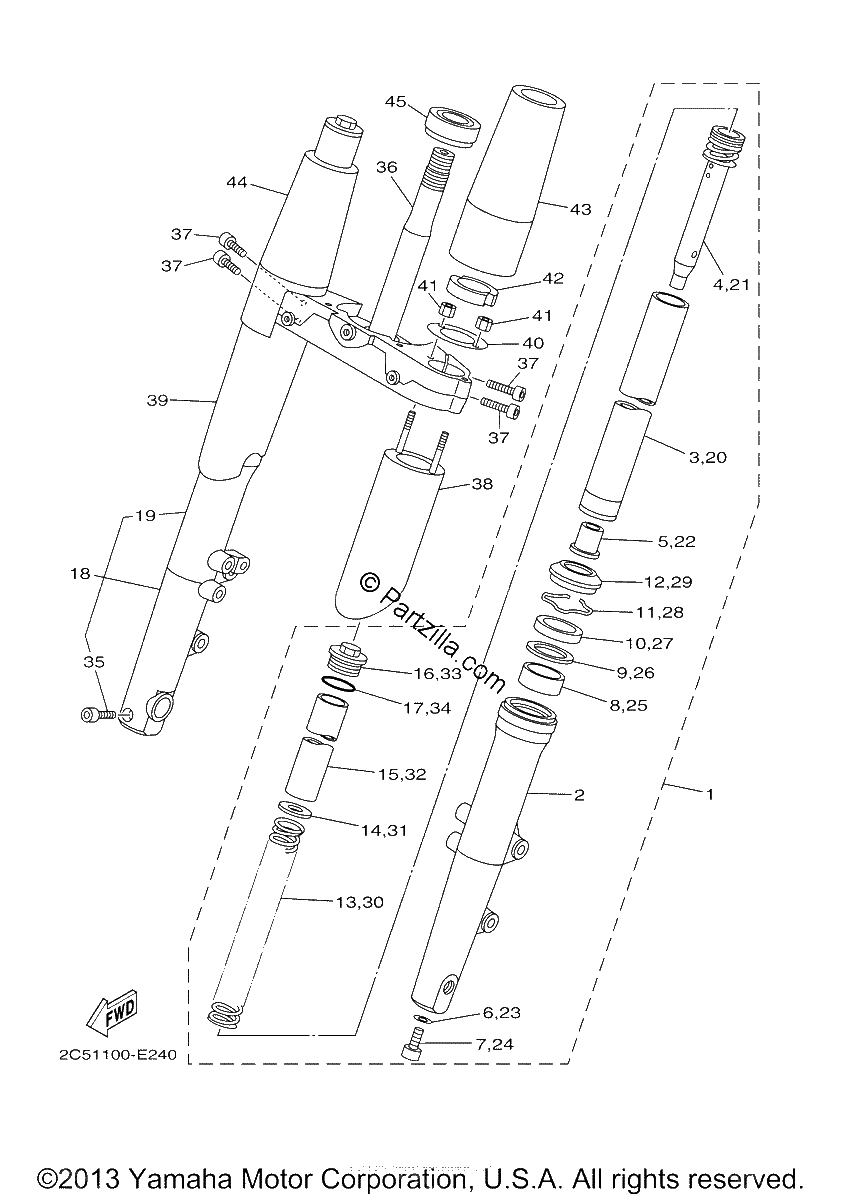

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H | UR FOR SMX
$801.24¢400 619
#2
TUBE, OUTER (L.H) | UR FOR SMX
$520.21¢260 106
#3
INNER TUBE COMP. 1
$417.86¢208 931
#4
CYLINDER COMP., FRONT FORK
$241.14¢120 569
#5
SPINDLE, TAPER
$34.47¢17 237
#6
GASKET
$15.59¢7 794
#7
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
#8
METAL, SLIDE 1
$37.16¢18 581
#9
WASHER, OIL SEAL
$8.03¢4 013
#10
OIL SEAL
$24.79¢12 394
#11
RING, SNAP
$7.28¢3 638
#12
SEAL, DUST
$34.96¢17 481
#13
SPRING, FRONT FORK
$65.56¢32 781
#14
WASHER, SPRING UPPER
$8.75¢4 375
#15
SPACER
$21.95¢10 975
#16
BOLT, CAP
$80.49¢40 244
#17
O-RING
$16.44¢8 219
#18
FRONT FORK ASSY (R.H | UR FOR SMX
$801.24¢400 619
#19
TUBE, OUTER (R.H) | UR FOR SMX
$524.89¢262 444
#20
INNER TUBE COMP. 1
$417.86¢208 931
#21
CYLINDER COMP., FRONT FORK
$241.14¢120 569
#22
SPINDLE, TAPER
$34.47¢17 237
#23
GASKET
$15.59¢7 794
#24
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
#25
METAL, SLIDE 1
$37.16¢18 581
#26
WASHER, OIL SEAL
$8.03¢4 013
#27
OIL SEAL
$24.79¢12 394
#28
RING, SNAP
$7.28¢3 638
#29
SEAL, DUST
$34.96¢17 481
#30
SPRING, FRONT FORK
$65.56¢32 781
#31
WASHER, SPRING UPPER
$8.75¢4 375
#32
SPACER
$21.95¢10 975
#33
BOLT, CAP
$80.49¢40 244
#34
O-RING
$16.44¢8 219
#35
BOLT (3JP)
$6.25¢3 125
#36
STEERING ASSY
No Disponible
#37
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#38
COVER, UNDER 1 | UR FOR SMX
$294.24¢147 119
#39
COVER, UNDER 2 | UR FOR SMX
$424.89¢212 444
#40
WASHER, FELT
$22.05¢11 025
#41
NUT
$4.35¢2 175
#42
GASKET
$18.09¢9 044
#43
COVER, UPPER 1 | UR FOR SMX
$464.60¢232 300
#44
COVER, UPPER 2 | UR FOR SMX
$464.60¢232 300
#45
BEARING
$88.35¢44 175
