FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

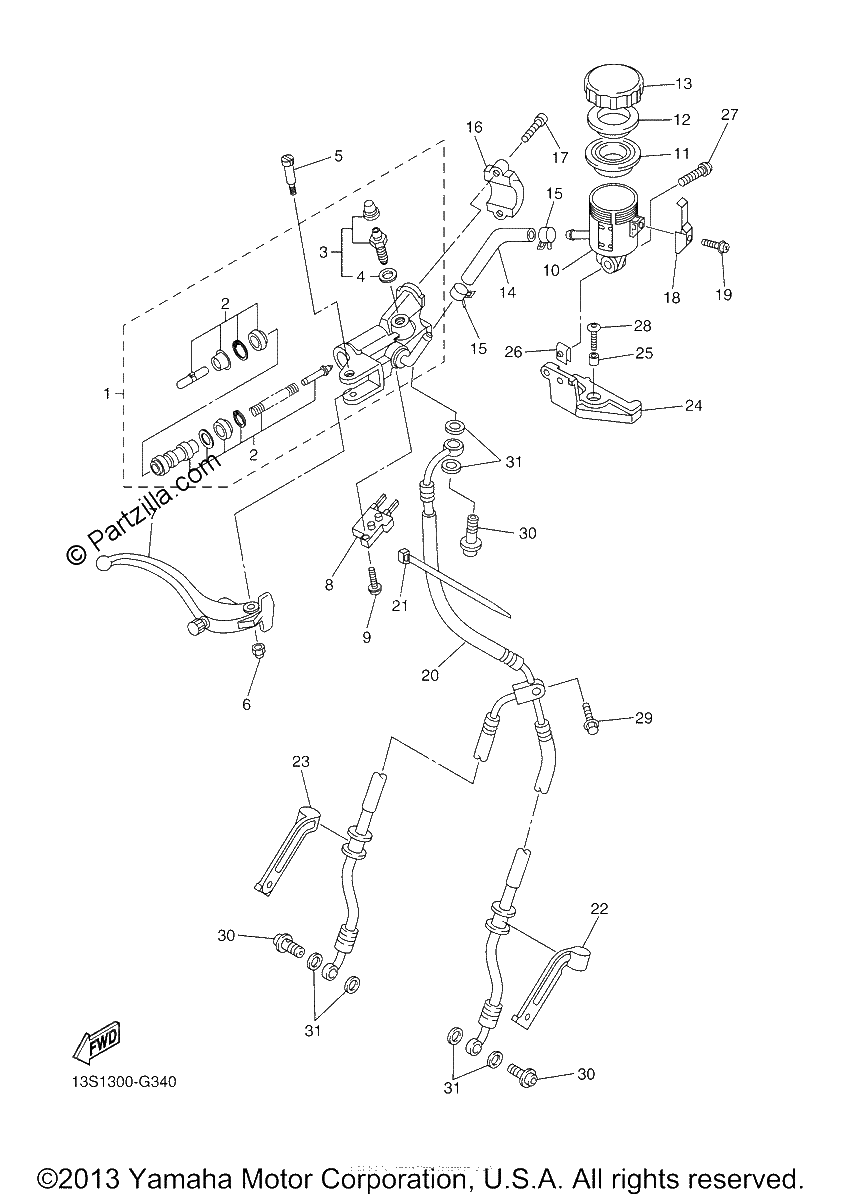

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
5SL-W2587-00-00
MASTER CYLINDER SUB ASSY
$355.86¢177 928
1
#2
2S3-W0041-00-00
CYLINDER KIT, MASTER
$84.02¢42 009
1
#3
5VY-W0048-00-00
BLEED SCREW KIT
$17.39¢8 694
1
#4
5VY-25975-00-00
SEAL 1
$1.77¢886
1
#5
5VY-2589F-01-00
BOLT, LEVER
$13.96¢6 981
1
#6
5VS-2586F-00-00
NUT, COVER
$6.51¢3 254
1
#7
5SL-83922-10-00
LEVER 2
$41.68¢20 838
1
#8
4HM-83980-00-00
FRONT STOP SWITCH ASSY
$40.23¢20 114
1
#9
5VS-2585H-00-00
SCREW, SET
$7.31¢3 657
1
#10
5SL-25894-20-00
TANK, RESERVOIR
$36.20¢18 101
1
#11
5VY-25854-00-00
DIAPHRAGM, RESERVOIR
$30.90¢15 450
1
#12
5VY-25855-00-00
BUSH, DIAPHRAGM
$4.13¢2 064
1
#13
5VY-25852-00-00
CAP, RESERVOIR
$17.39¢8 694
1
#14
13S-2589E-00-00
HOSE
$20.96¢10 482
1
#15
90467-120A3-00
CLIP
$6.43¢3 214
1
#16
5VS-25867-00-00
BRACKET, MASTER CYLINDER
$34.79¢17 394
1
#17
5VS-26332-00-00
BOLT
$4.30¢2 151
1
#18
5VY-2589G-00-00
HOLDER
$8.21¢4 105
1
#19
5VY-2589H-00-00
SCREW
$6.99¢3 496
1
#20
13S-25872-01-00
HOSE, BRAKE 1
$174.02¢87 009
1
#21
3MA-82591-00-00
BAND
$6.95¢3 473
1
#22
2C0-25886-00-00
HOLDER, BRAKE HOSE
$19.03¢9 516
1
#23
13S-25887-00-00
HOLDER, BRAKE HOSE
$17.12¢8 562
1
#24
13S-26292-00-00
STAY
$9.29¢4 646
1
#25
90387-06057-00
COLLAR
$6.75¢3 375
1
#26
90183-050A0-00
NUT, SPRING
$4.88¢2 438
1
#27
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
1
#28
90111-06041-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#29
90105-06041-00
BOLT, FLANGE
$6.06¢3 030
1
#30
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#31
90430-10005-00
GASKET
$7.72¢3 858
1
