STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

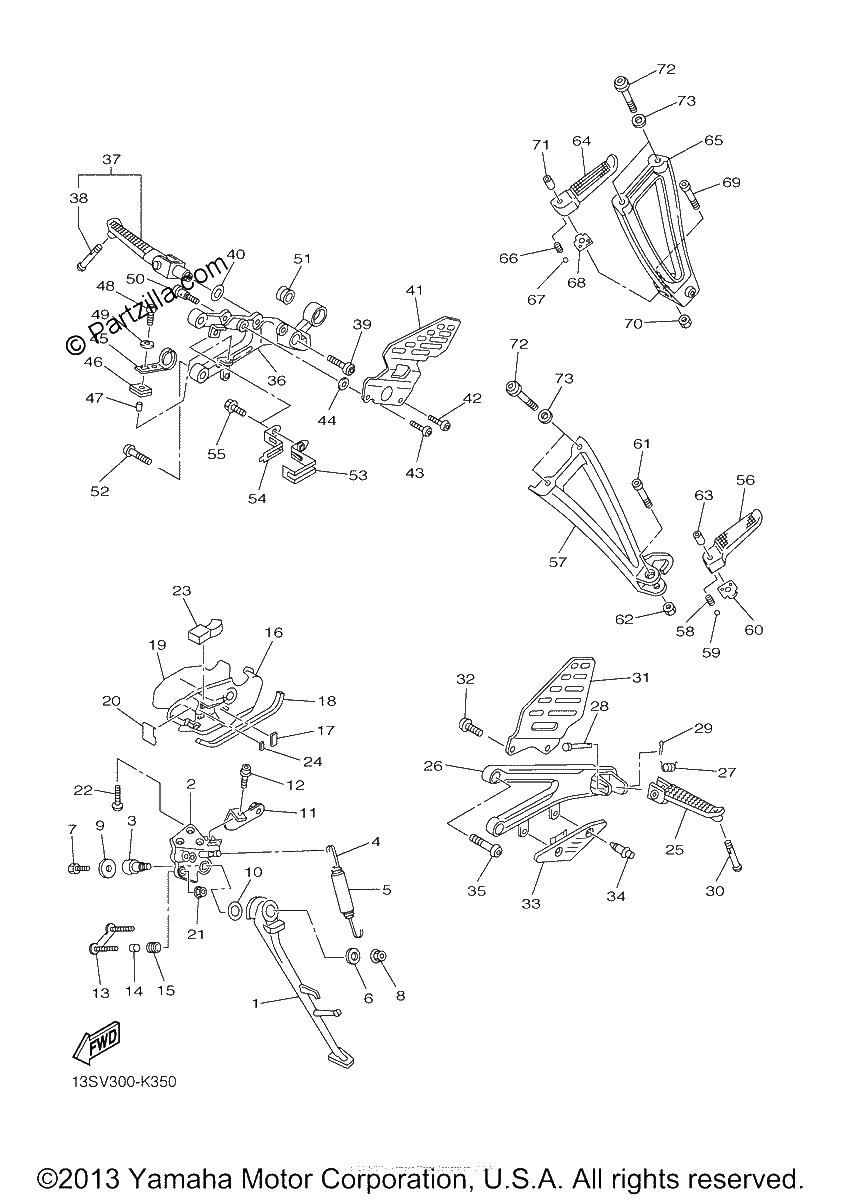

Diagrama de STAND FOOTREST

Repuestos

#1
2C0-27311-10-00
STAND, SIDE
$331.61¢165 807
1
#2
2C0-27321-10-00
BRACKET, SIDE STAND
$291.32¢145 659
1
#3
2C0-27351-00-00
GUIDE, SIDE STAND
$60.89¢30 446
1
#4
90506-18008-00
SPRING, TENSION
$14.52¢7 262
1
#5
90445-19002-00
HOSE (L60)
$5.61¢2 806
1
#6
90201-10035-00
WASHER, plate
$3.91¢1 955
1
#7
97017-08020-00
BOLT
$6.99¢3 496
1
#8
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#9
90201-08050-00
WASHER, PLATE
$5.37¢2 685
1
#10
90201-146F9-00
WASHER, PLATE
$5.47¢2 737
1
#11
13S-2836F-00-00
BRACKET 3
$23.57¢11 788
1
#12
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
1
#13
2C0-27263-00-00
BRACKET 1
$13.49¢6 745
1
#14
90387-05025-00
COLLAR
$5.66¢2 829
1
#15
90480-11006-00
GROMMET
$3.22¢1 610
1
#16
2C0-27453-00-00
COVER 1
$18.60¢9 298
1
#17
2C0-27414-00-00
DAMPER, FOOTREST
$7.23¢3 617
1
#18
2C0-27415-00-00
PLATE, FOOTREST
$7.31¢3 657
1
#19
2C0-28428-00-00
SEAL 1
$39.00¢19 498
1
#20
2C0-28429-00-00
SEAL 2
$9.26¢4 629
1
#21
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#22
92012-08030-00
BOLT, BUTTON HEAD
$6.20¢3 099
1
#23
2C0-28425-00-00
DAMPER 3
$5.66¢2 829
1
#24
2C0-21485-00-00
DAMPER, RUBBER 1
$6.99¢3 496
1
#25
2C0-27451-00-00
FOOTREST
$54.03¢27 013
1
#26
2C0-27442-00-00
BRACKET 2
$111.08¢55 539
1
#27
90508-18134-00
SPRING, TORSION
$6.76¢3 381
1
#28
91701-08038-00
PIN
$4.28¢2 139
1
#29
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#30
90109-08225-00
BOLT
$5.65¢2 823
1
#31
2C0-27445-00-00
PLATE 1
$62.31¢31 153
1
#32
92017-06012-00
BOLT, BUTTON HEAD
$2.24¢1 121
1
#33
2C0-27491-00-00
PROTECTOR
$7.34¢3 669
1
#34
90269-06008-00
RIVET
$8.10¢4 048
1
#35
90109-085G6-00
BOLT
$2.08¢1 041
1
#36
2C0-27443-00-00
BRACKET 3
$153.29¢76 648
1
#37
2C0-27420-10-00
FRONT FOOTREST ASSY (RIGHT)
$88.73¢44 367
1
#38
90109-08225-00
BOLT
$5.65¢2 823
1
#39
90111-10017-00
BOLT,HEX. SOCKET BUT
$7.58¢3 789
1
#39
2C0-2116K-00-00
BRACKET 8
$8.07¢4 036
1
#40
90214-13002-00
WASHER, CLAW
$6.88¢3 439
1
#41
13S-27446-00-00
PLATE 2
$82.40¢41 199
1
#42
92017-06012-00
BOLT, BUTTON HEAD
$2.24¢1 121
1
#43
90111-06046-00
BOLT, HEX. SOCKET BUTTON | FOR CALIFORNIA
$5.96¢2 978
1
#44
90387-06215-00
COLLAR
$4.58¢2 289
1
#45
13S-2144G-00-00
STAY, STOP SWITCH
$5.27¢2 633
1
#46
90480-12607-00
GROMMET
$9.36¢4 681
1
#47
90387-06023-00
COLLAR
$8.39¢4 198
1
#48
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
1
#49
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#50
90109-066F0-00
BOLT
$6.99¢3 496
1
#51
2C0-14747-00-00
DAMPER, MUFFLER
$7.68¢3 841
1
#52
90109-085G6-00
BOLT
$2.08¢1 041
1
#54
2C0-2116L-00-00
BRACKET 9
$4.23¢2 116
1
#55
95024-06012-00
Bolt, Flange
$4.02¢2 012
1
#56
5JJ-27431-10-00
FOOTREST, REAR 1
$78.27¢39 134
1
#57
2C0-2741L-00-00
BRACKET 4 | UR FOR DPBMC
$76.04¢38 019
1
#58
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#59
93501-04011-00
BALL
$6.87¢3 433
1
#60
5JJ-27437-01-00
WASHER, special
$6.46¢3 231
1
#61
91317-06035-00
BOLT
$3.84¢1 920
1
#62
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#63
90387-06697-00
Collar
$14.60¢7 302
1
#64
5JJ-27441-10-00
FOOTREST, REAR 2
$69.56¢34 782
1
#65
2C0-2742L-00-00
BRACKET 5 | UR FOR DPBMC
$75.15¢37 576
1
#66
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#67
93501-04011-00
BALL
$6.87¢3 433
1
#68
5JJ-27437-01-00
WASHER, special
$6.46¢3 231
1
#69
91317-06035-00
BOLT
$3.84¢1 920
1
#70
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#71
90387-06697-00
Collar
$14.60¢7 302
1
#72
90110-08220-00
BOLT, HEXAGON SOCKET HEAD
$6.43¢3 214
1
#73
13S-27417-00-00
WASHER, FOOTREST
$11.17¢5 583
1
