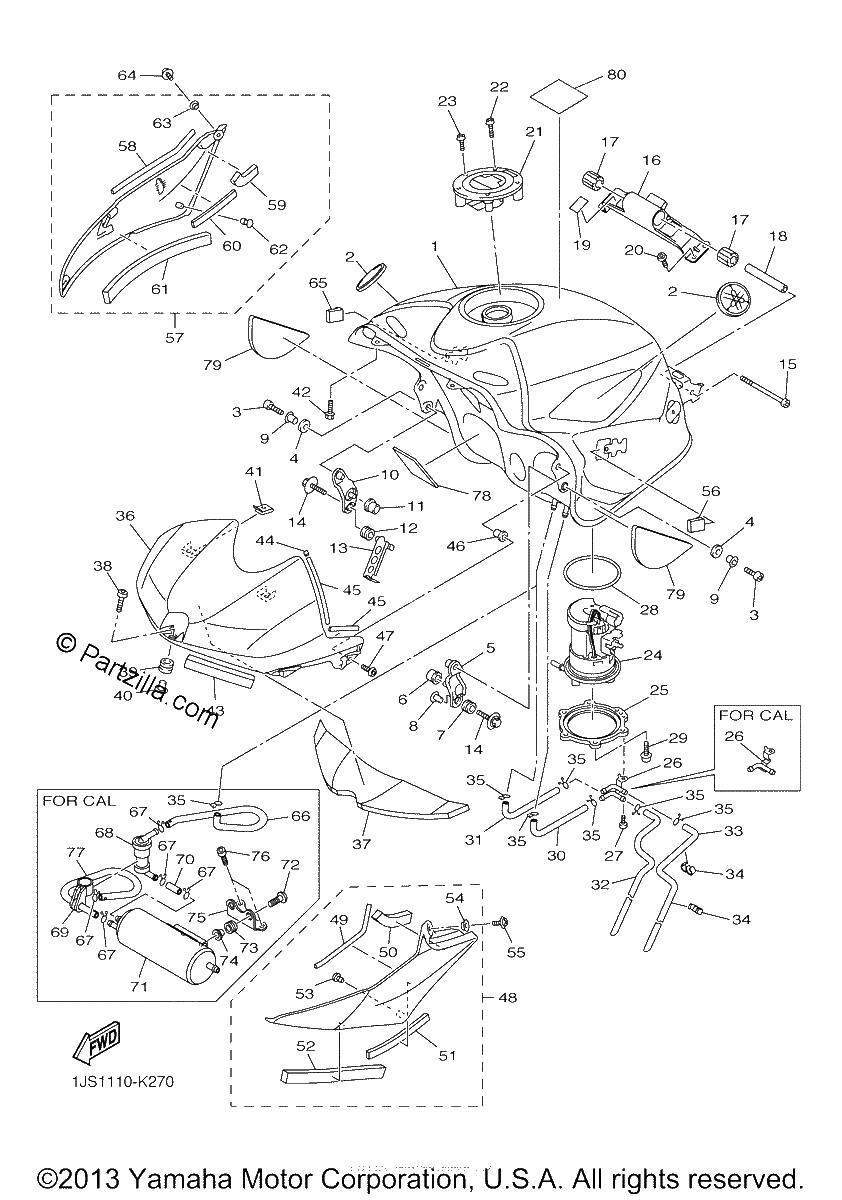

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
PIPE 7 | FOR CALIFORNIA
$17.80¢8 901
#0
CLAMP 1 | FOR CALIFORNIA
No Disponible
#1
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
$1264.99¢632 494
#2
EMBLEM
$24.39¢12 196
#3
BOLT
$5.37¢2 685
#4
DAMPER, LOCATING 3
$7.15¢3 577
#5
BRACKET, FUEL TANK 1
$23.14¢11 569
#6
DAMPER, LOCATING 1
$7.04¢3 519
#7
GROMMET
$10.76¢5 382
#8
COLLAR
$7.65¢3 824
#9
COLLAR
$5.97¢2 984
#10
BRACKET, FUEL TANK 2
$21.04¢10 522
#11
DAMPER, LOCATING 1
$7.04¢3 519
#12
GROMMET
$10.76¢5 382
#13
GUIDE, WIRE
$20.39¢10 195
#14
BOLT, WITH WASHER
$6.88¢3 439
#15
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#16
BRACKET, TANK FITTING
$68.72¢34 362
#17
DAMPER, LOCATING 3
$7.04¢3 519
#18
COLLAR
$4.77¢2 386
#19
TAPE, 1
$7.28¢3 640
#20
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#21
CAP ASSY
$248.96¢124 482
#22
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#23
BOLT
$5.39¢2 697
#24
FUEL PUMP COMP.
$517.70¢258 848
#25
BRACKET, FUEL PUMP
$40.32¢20 160
#26
CLAMP 1 | FOR U49
$38.82¢19 412
#27
SCREW, BIND
$1.74¢868
#28
O-RING
$40.92¢20 458
#29
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#30
PIPE 5
$13.14¢6 572
#31
PIPE 6
$12.91¢6 457
#32
PIPE 7 | FOR U49
$22.37¢11 184
#33
PIPE 3
$24.85¢12 426
#34
CLAMP
$6.77¢3 387
#35
Clip
$2.74¢1 368
#36
COVER, TOP | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$207.70¢103 851
#37
DAMPER
$7.50¢3 749
#38
BOLT, HEX. SOCKET BUTTON
$3.66¢1 829
#39
GROMMET
$3.10¢1 553
#39
PLUG
$6.22¢3 111
#40
COLLAR
$6.05¢3 024
#41
NUT, SPRING
$8.14¢4 071
#42
BOLT, FLANGE
$2.43¢1 213
#43
DAMPER, PLATE 2
$6.03¢3 013
#44
DAMPER, LOCATING 1
$7.31¢3 657
#45
DAMPER, PLATE
$1.20¢598
#46
NUT
$6.23¢3 117
#47
SCREW, BIND
$1.32¢661
#48
TANK SIDE COVER ASSY 1
$53.06¢26 531
#49
DAMPER, PLATE
$1.74¢868
#50
DAMPER, PLATE 5
$7.31¢3 657
#51
DAMPER, PLATE
$1.32¢661
#52
DAMPER, LOCATING 4
$7.31¢3 657
#54
COLLAR
$5.51¢2 754
#55
SCREW, BIND
$1.35¢673
#56
DAMPER, SIDE COVER
$7.04¢3 519
#57
TANK SIDE COVER ASSY 2
$53.06¢26 531
#58
DAMPER, PLATE
$1.74¢868
#59
DAMPER, PLATE 5
$7.31¢3 657
#60
DAMPER, PLATE
$1.32¢661
#61
DAMPER, LOCATING 4
$7.31¢3 657
#62
PLUG
$6.22¢3 111
#63
COLLAR
$5.51¢2 754
#64
SCREW, BIND
$1.35¢673
#65
DAMPER, SIDE COVER
$7.04¢3 519
#66
PIPE 4 | FOR CALIFORNIA
$37.01¢18 504
#67
Clip
$2.74¢1 368
#68
ROLL OVER VALVE ASSY | FOR CAL
$56.99¢28 497
#69
BAND 1 | FOR CALIFORNIA
No Disponible
#70
HOSE (L30) | FOR CALIFORNIA
$3.48¢1 742
#71
CANISTER ASSY | FOR CALIFORNIA
$553.56¢276 782
#72
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#73
GROMMET
$6.83¢3 415
#74
COLLAR | FOR CALIFORNIA
$6.22¢3 111
#75
BRACKET, CANISTOR | FOR CALIFORNIA
$51.51¢25 754
#76
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
#77
PIPE | FOR CALIFORNIA
$29.96¢14 979
#78
DAMPER, SIDE COVER
$5.23¢2 616
#79
DAMPER, SIDE COVER
$7.15¢3 577
#80
LABEL, CAUTION
$7.22¢3 611
