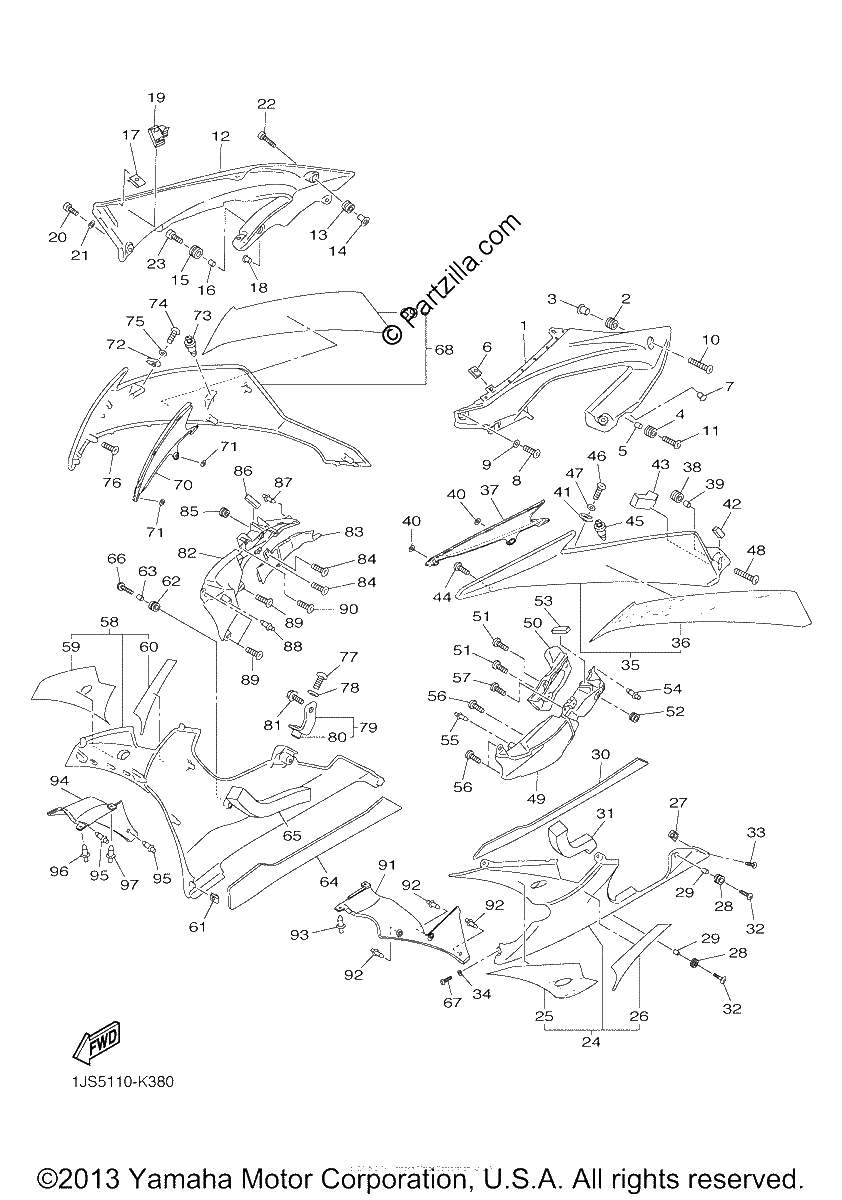

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER 7 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
No Disponible
#2
Grommet
$23.96¢11 981
#3
COLLAR
$6.19¢3 094
#4
GROMMET
$7.43¢3 713
#5
COLLAR
$7.43¢3 713
#6
NUT, SPRING
$2.82¢1 412
#7
PLUG,SPEC'L SHAPE
$7.86¢3 931
#8
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
#9
WASHER, PLATE
$7.66¢3 831
#10
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#11
bolt
$4.00¢2 000
#12
COVER 8 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$227.97¢113 988
#13
Grommet
$23.96¢11 981
#14
COLLAR
$6.19¢3 094
#15
GROMMET
$7.43¢3 713
#16
COLLAR
$7.43¢3 713
#17
NUT, SPRING
$2.82¢1 412
#18
PLUG,SPEC'L SHAPE
$7.86¢3 931
#19
Clamp
$4.65¢2 325
#20
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
#21
WASHER, PLATE
$7.66¢3 831
#22
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#23
bolt
$4.00¢2 000
#24
UNDER COVER COMP. 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$498.81¢249 406
#25
GRAPHIC, UNDER COVER 1
$113.52¢56 762
#26
GRAPHIC, 1
$65.11¢32 556
#27
NUT, SPRING
$2.82¢1 412
#28
GROMMET
$7.43¢3 713
#29
COLLAR
$7.43¢3 713
#30
SEAT 1
$53.24¢26 619
#31
DAMPER, PLATE
$6.55¢3 275
#32
bolt
$4.00¢2 000
#33
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
#34
WASHER, PLATE
$7.66¢3 831
#35
PANEL ASSY 1 | Use for Color Black Metallic X ( SMX / 0903 )
$467.27¢233 638
#36
GRAPHIC, 1
$198.81¢99 406
#37
COVER 1
$13.13¢6 563
#38
GROMMET
$7.43¢3 713
#39
DAMPER 1
$7.08¢3 538
#39
COLLAR
$7.43¢3 713
#40
NUT, SPRING
$0.50¢250
#41
NUT, SPRING
$2.82¢1 412
#42
DAMPER 1
$7.86¢3 931
#43
DAMPER, PLATE
$2.20¢1 100
#44
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#45
RIVET
$4.00¢2 000
#46
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
#47
WASHER, PLATE
$7.66¢3 831
#48
bolt
$4.00¢2 000
#49
GUIDE, AIR 1
$41.60¢20 800
#50
GUIDE, AIR 3
$15.59¢7 794
#51
TAPPING SCREW
$2.36¢1 181
#52
Grommet
$4.69¢2 344
#54
RIVET
$8.80¢4 400
#55
RIVET
$6.78¢3 388
#56
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#57
SCREW, TAPPING (replaces 97702-50020-00)
$6.26¢3 131
#58
UNDER COVER COMP. 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
No Disponible
#59
GRAPHIC, UNDER COVER 2
$116.85¢58 425
#60
GRAPHIC, 2
$58.60¢29 300
#61
NUT, SPRING
$2.82¢1 412
#62
GROMMET
$7.43¢3 713
#63
COLLAR
$7.43¢3 713
#64
SEAT 2
$45.80¢22 900
#65
DAMPER 10
$16.15¢8 075
#66
bolt
$4.00¢2 000
#67
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
#68
PANEL ASSY 2 | Use for Color Black Metallic X ( SMX / 0903 )
No Disponible
#69
GRAPHIC, 2
$198.81¢99 406
#70
COVER 2
$13.27¢6 637
#71
NUT, SPRING
$0.50¢250
#72
NUT, SPRING
$2.82¢1 412
#73
RIVET
$4.00¢2 000
#74
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
#75
WASHER, PLATE
$7.66¢3 831
#76
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#77
bolt
$5.94¢2 969
#78
WASHER,PLATE
$7.00¢3 500
#79
BRACKET 4
$23.21¢11 606
#80
Nut
$5.21¢2 606
#81
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#82
GUIDE, AIR 2
$47.27¢23 638
#83
GUIDE, AIR 4
$13.70¢6 850
#84
TAPPING SCREW
$2.36¢1 181
#85
Grommet
$4.69¢2 344
#86
DAMPER 1
$7.08¢3 538
#87
RIVET
$8.80¢4 400
#88
RIVET
$6.78¢3 388
#89
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#90
SCREW, TAPPING (replaces 97702-50020-00)
$6.26¢3 131
#91
PANEL, INNER 2
$47.27¢23 638
#92
RIVET
$8.80¢4 400
#93
RIVET
$7.34¢3 669
#94
PANEL, INNER 3
$47.27¢23 638
#95
RIVET
$8.80¢4 400
#96
RIVET
$7.34¢3 669
#97
RIVET
$8.80¢4 400
