FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

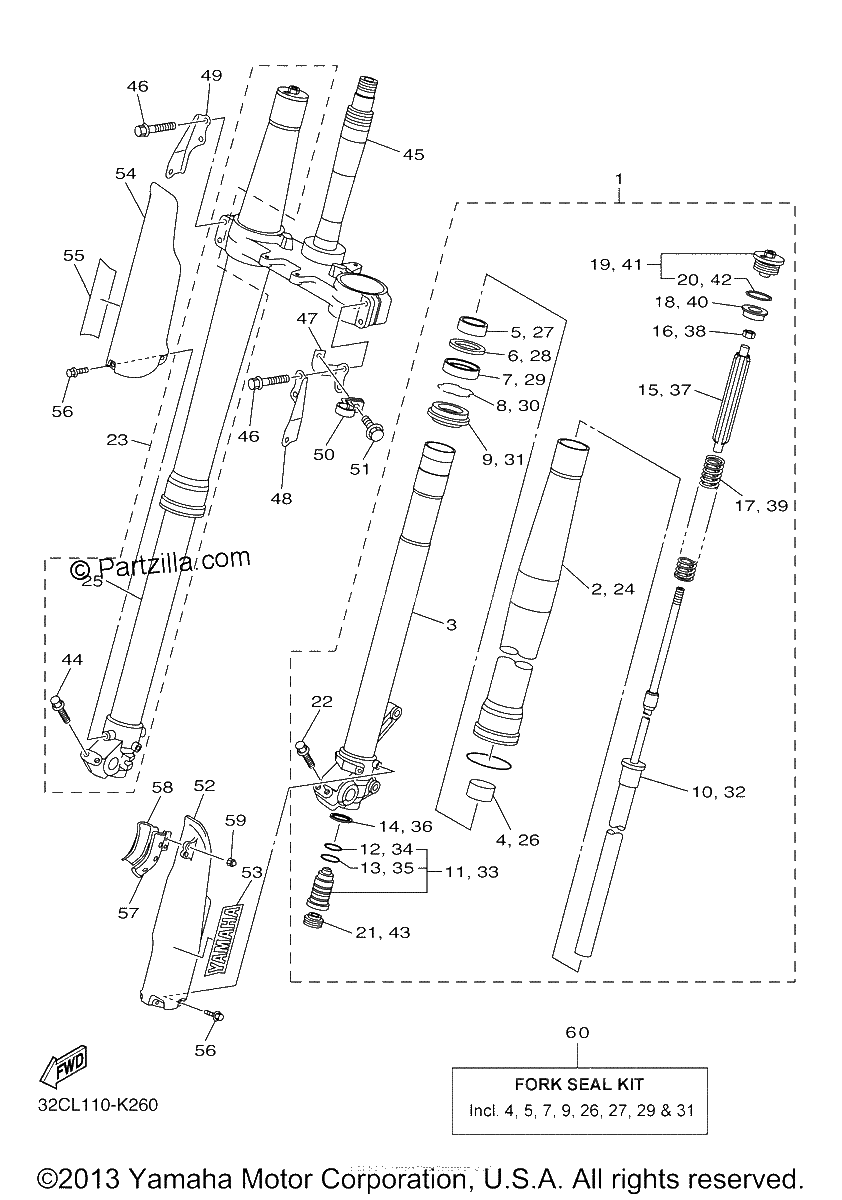

Diagrama de FRONT FORK

Repuestos

#1
32D-23102-10-00
FRONT FORK ASSY (L.H)
$1857.49¢928 744
1
#2
3D7-23106-30-00
OUTER TUBE COMP.
No Disponible
1
#3
3D7-23110-00-00
INNER TUBE COMP. 1
$492.43¢246 213
1
#4
5ET-23171-L0-00
PISTON, FRONT FORK
$23.56¢11 781
1
#5
5ET-23125-L0-00
METAL, SLIDE 1
$35.76¢17 881
1
#6
5UN-23146-L0-00
WASHER, OIL SEAL
$15.60¢7 800
1
#7
5UN-23145-L0-00
OIL SEAL
$23.20¢11 600
1
#8
4SS-23153-L0-00
RING, SNAP
$7.28¢3 638
1
#9
5HD-23144-L0-00
SEAL, DUST
$30.64¢15 319
1
#10
32D-23170-00-00
CYLINDER COMP., FRONT FORK
$564.99¢282 494
1
#11
32D-2316A-00-00
VALVE COMP.
$329.35¢164 675
1
#12
4DA-23147-L0-00
O-RING
$15.44¢7 719
1
#13
276-23114-00-00
GASKET
$4.63¢2 313
1
#14
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#15
3D7-23117-00-00
GUIDE, SPRING
$41.94¢20 969
1
#16
3XJ-23357-L0-00
NUT
$0.90¢450
1
#17
32D-23141-00-00
SPRING, FRONT FORK
$64.90¢32 450
1
#18
4SS-23143-L0-00
SEAT, SPRING LOWER
$14.35¢7 175
1
#19
3D7-23111-00-00
BOLT, CAP
$275.77¢137 888
1
#20
3D7-23147-00-00
O-RING
$6.36¢3 181
1
#21
3JD-2312G-L0-00
PLUG
$7.08¢3 538
1
#22
95024-08040-00
Bolt, Flange
$7.34¢3 669
1
#23
32D-23103-10-00
FRONT FORK ASSY (R.H)
$1671.24¢835 619
1
#24
3D7-23106-30-00
OUTER TUBE COMP.
No Disponible
1
#25
3D7-23120-00-00
INNER TUBE COMP. 2
$488.01¢244 006
1
#26
5ET-23171-L0-00
PISTON, FRONT FORK
$23.56¢11 781
1
#27
5ET-23125-L0-00
METAL, SLIDE 1
$35.76¢17 881
1
#28
5UN-23146-L0-00
WASHER, OIL SEAL
$15.60¢7 800
1
#29
5UN-23145-L0-00
OIL SEAL
$23.20¢11 600
1
#30
4SS-23153-L0-00
RING, SNAP
$7.28¢3 638
1
#31
5HD-23144-L0-00
SEAL, DUST
$30.64¢15 319
1
#32
32D-23170-00-00
CYLINDER COMP., FRONT FORK
$564.99¢282 494
1
#33
32D-2316A-00-00
VALVE COMP.
$329.35¢164 675
1
#34
4DA-23147-L0-00
O-RING
$15.44¢7 719
1
#35
276-23114-00-00
GASKET
$4.63¢2 313
1
#36
2HH-23158-L0-00
GASKET
$11.34¢5 669
1
#37
3D7-23117-00-00
GUIDE, SPRING
$41.94¢20 969
1
#38
3XJ-23357-L0-00
NUT
$0.90¢450
1
#39
32D-23141-00-00
SPRING, FRONT FORK
$64.90¢32 450
1
#39
4XL-2153A-30-00
EMBLEM, YAMAHA
$12.25¢6 125
1
#40
4SS-23143-L0-00
SEAT, SPRING LOWER
$14.35¢7 175
1
#41
3D7-23111-00-00
BOLT, CAP
$275.77¢137 888
1
#42
3D7-23147-00-00
O-RING
$6.36¢3 181
1
#43
3JD-2312G-L0-00
PLUG
$7.08¢3 538
1
#44
95024-08040-00
Bolt, Flange
$7.34¢3 669
1
#45
3D7-23340-00-00
UNDER BRACKET COMP.
$838.74¢419 369
1
#46
95024-08040-00
Bolt, Flange
$7.34¢3 669
1
#47
3D7-2331E-00-00
GUIDE, CABLE
$10.15¢5 075
1
#48
32D-85112-00-00
BRACKET, REFLECTOR 1
$23.93¢11 963
1
#49
32D-85112-10-00
BRACKET, REFLECTOR 1
$24.00¢12 000
1
#50
5VK-23389-00-00
GUIDE, CABLE
$13.36¢6 681
1
#51
90105-05016-00
BOLT, FLANGE
$5.40¢2 700
1
#52
3D7-2315H-00-00
PROTECTOR 1
$16.54¢8 269
1
#54
3D7-2315J-00-00
PROTECTOR 2
$16.54¢8 269
1
#55
4XL-2153A-30-00
EMBLEM, YAMAHA
$12.25¢6 125
1
#56
3SP-23356-L0-00
BOLT 2
$6.35¢3 175
1
#57
3D7-23466-00-00
CLAMP
$14.66¢7 331
1
#58
3D7-23467-00-00
CLAMP
$18.94¢9 469
1
#59
90176-06014-00
NUT, CROWN
$7.60¢3 800
1
#60
5ET-W0003-B0-00
FORK SEAL KIT
No Disponible
1
