SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

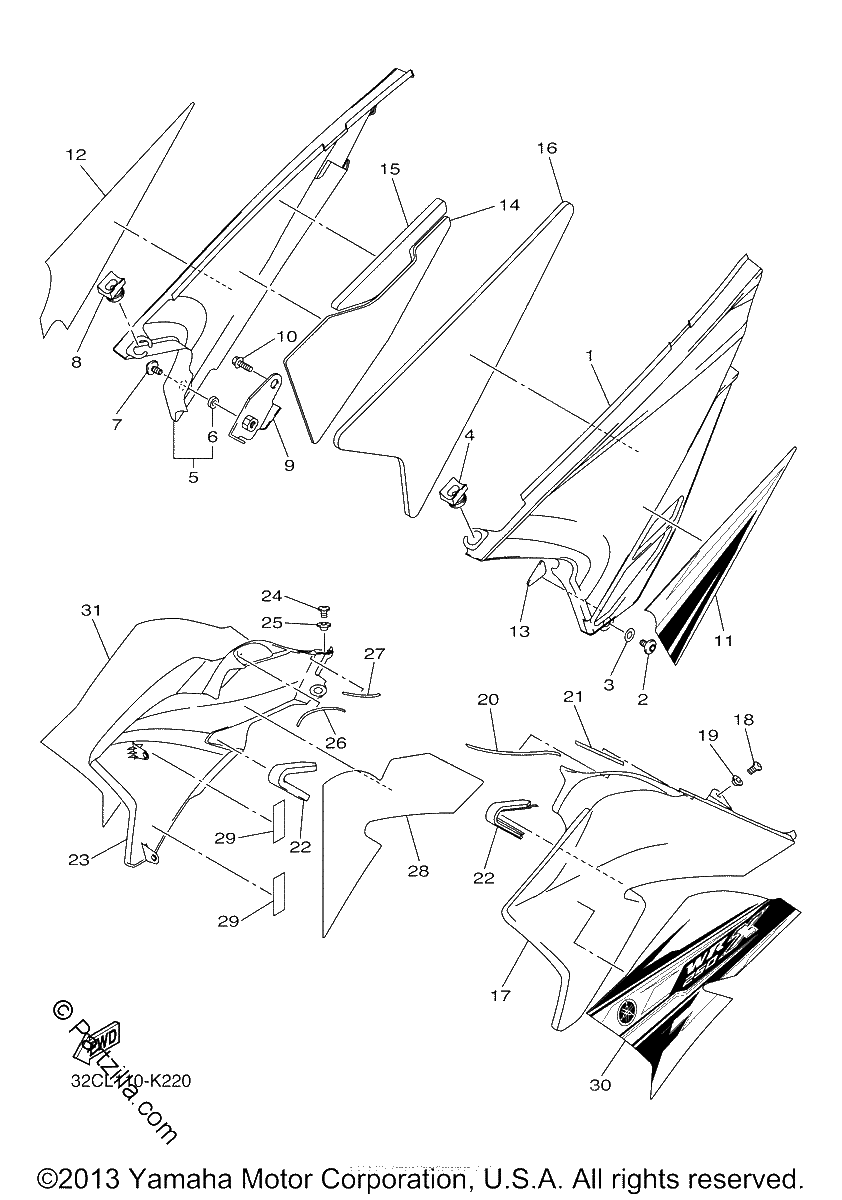

Diagrama de SIDE COVER

Repuestos

#1
3D7-21711-00-00
COVER, SIDE 1
$33.45¢16 725
1
#2
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
#3
90201-06020-00
WASHER, PLATE (replaces 90201-06058-00)
$7.48¢3 738
1
#4
3D7-21719-00-00
GROMMET
$6.35¢3 175
1
#5
3D7-21721-00-00
COVER, SIDE 2
$25.53¢12 763
1
#6
90387-07022-00
COLLAR
$6.14¢3 069
1
#7
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
#8
3D7-21719-00-00
GROMMET
$6.35¢3 175
1
#9
3D7-2172E-00-00
STAY, SIDE COVER 1
$8.92¢4 462
1
#10
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
#11
32C-2174G-10-00
GRAPHIC, 3
$19.48¢9 738
1
#12
32C-2174H-10-00
GRAPHIC, 4
$19.48¢9 738
1
#13
3D7-2174X-00-00
DAMPER
$5.66¢2 831
1
#14
32C-21746-00-00
DAMPER
$29.81¢14 906
1
#15
32C-21747-00-00
DAMPER
$6.99¢3 494
1
#16
32C-2174Y-00-00
DAMPER
$34.98¢17 488
1
#17
3D7-2137W-10-00
SCOOP, AIR 1
$125.78¢62 888
1
#18
98980-06010-00
SCREW,BIND (replaces 98902-06010-00)
$6.99¢3 494
1
#19
90387-062M9-00
COLLAR
$7.88¢3 938
1
#20
3D7-2414H-00-00
DAMPER, PLATE 1
$5.66¢2 831
1
#21
3D7-2414J-00-00
DAMPER, PLATE 2
$5.66¢2 831
1
#22
3D7-24175-00-00
SPACER 2
$14.65¢7 325
1
#23
3D7-2137X-10-00
SCOOP, AIR 2
$124.83¢62 413
1
#24
98980-06010-00
SCREW,BIND (replaces 98902-06010-00)
$6.99¢3 494
1
#25
90387-062M9-00
COLLAR
$7.88¢3 938
1
#26
3D7-2414H-00-00
DAMPER, PLATE 1
$5.66¢2 831
1
#27
3D7-2414J-00-00
DAMPER, PLATE 2
$5.66¢2 831
1
#28
3D7-2414K-00-00
DAMPER, PLATE 3
$90.11¢45 056
1
#29
3D7-2173T-00-00
TAPE 1
$7.95¢3 975
1
#30
32C-2137N-60-00
GRAPHIC 1
$78.22¢39 113
1
#31
32C-2137P-60-00
GRAPHIC 2
$78.22¢39 113
1
