ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

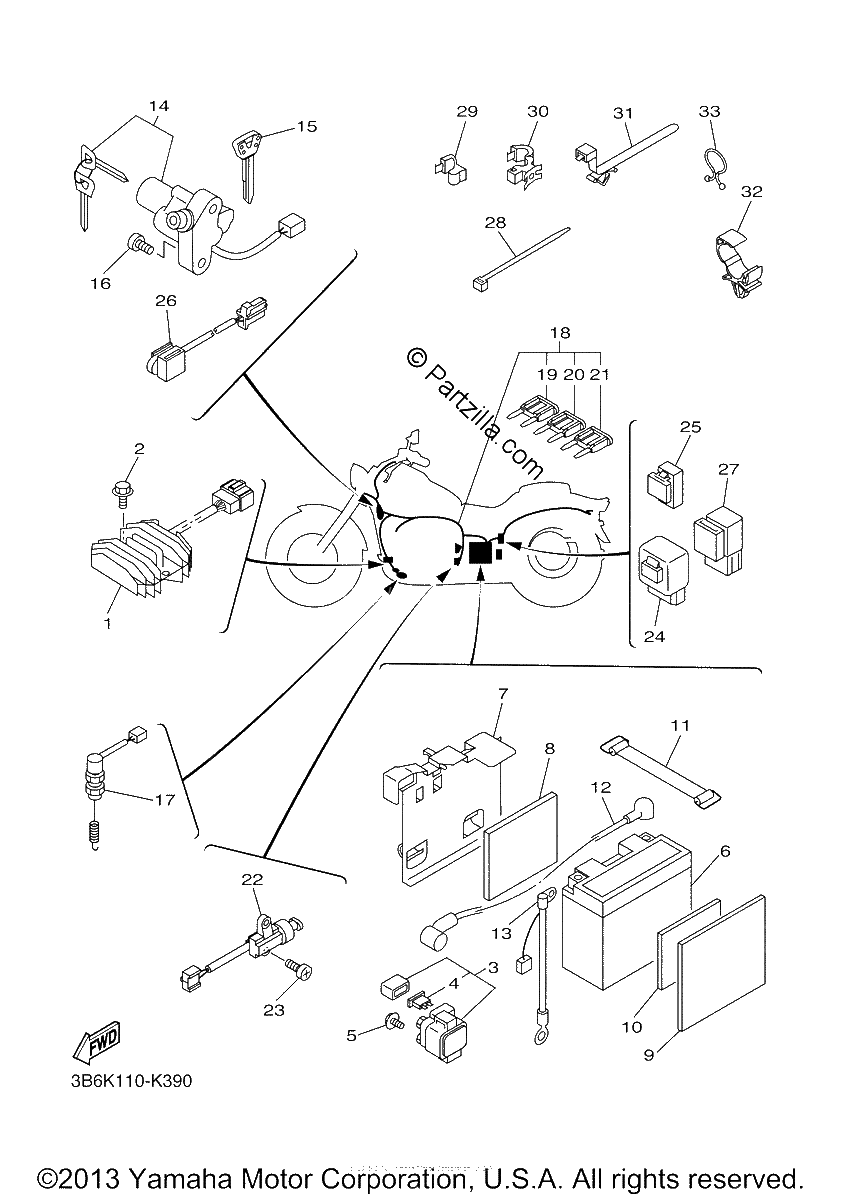

Diagrama de ELECTRICAL 1

Repuestos

#1
5KP-81960-00-00
RECTIFIER REGULATOR ASSY
$242.72¢121 360
1
#2
95814-06020-00
BOLT, FLANGE
$7.30¢3 651
1
#3
4BH-81940-02-00
STARTER RELAY ASSY (RC19-005)
$110.64¢55 321
1
#4
1AE-82151-00-00
FUSE (30A-BL)
$6.82¢3 410
1
#5
95027-06008-00
BOLT, FLANGE
$6.14¢3 070
1
#6
GT1-2B400-00-00
GT12B4 GS BATTERY -
$110.42¢55 211
1
#7
5BN-82129-00-00
COVER, BATTERY
$60.06¢30 032
1
#8
29N-14425-00-00
DAMPER 1
$7.38¢3 691
1
#9
4VR-2176E-00-00
PLATE
$26.19¢13 093
1
#10
29N-14425-00-00
DAMPER 1
$7.38¢3 691
1
#11
133-82131-00-00
BAND, BATTERY
$23.89¢11 943
1
#12
5BN-82115-00-00
WIRE, PLUS LEAD
$57.78¢28 888
1
#13
5BN-82116-00-00
WIRE, MINUS LEAD
$31.66¢15 830
1
#14
4TR-82501-01-00
MAIN SWITCH STEERING LOCK
$295.20¢147 603
1
#15
4BH-82511-09-00
BLANK KEY | AP
$26.78¢13 392
1
#16
90149-08002-00
SCREW
$8.36¢4 180
1
#17
5KP-82530-00-00
STOP SWITCH ASSY
$51.11¢25 553
1
#18
5SC-82590-50-00
WIRE HARNESS ASSY
$434.32¢217 160
1
#19
67F-82151-20-00
FUSE - 5 A - BLADE (
$6.53¢3 266
1
#20
67F-82151-40-00
FUSE (10A)
$7.13¢3 565
1
#21
67F-82151-50-00
FUSE (15A)
$4.08¢2 041
1
#22
34B-82566-B0-00
SWITCH, SIDE STAND
$65.49¢32 746
1
#23
98507-05014-00
SCREW, PAN HEAD
$5.76¢2 881
1
#24
5KS-81950-00-00
RELAY ASSY (5KS-00)
$65.25¢32 625
1
#25
1UY-81950-92-00
RELAY ASSY (1UY-92)
$75.89¢37 944
1
#26
5FU-82560-50-00
THERMO SWITCH ASSY
$55.44¢27 721
1
#27
29U-81950-93-00
RELAY ASSY
$76.36¢38 180
1
#28
1UA-82591-00-00
BAND
$4.52¢2 260
1
#29
90464-05188-00
CLAMP
$3.36¢1 679
1
#30
90464-20191-00
Clamp
$8.06¢4 031
1
#31
90464-20213-00
CLAMP
$3.90¢1 949
1
#32
5UY-81444-00-00
CLAMP, LEAD 2
$1.49¢747
1
#33
90464-25267-00
CLAMP (replaces 341-82594-00-00)
$6.36¢3 180
1
