FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

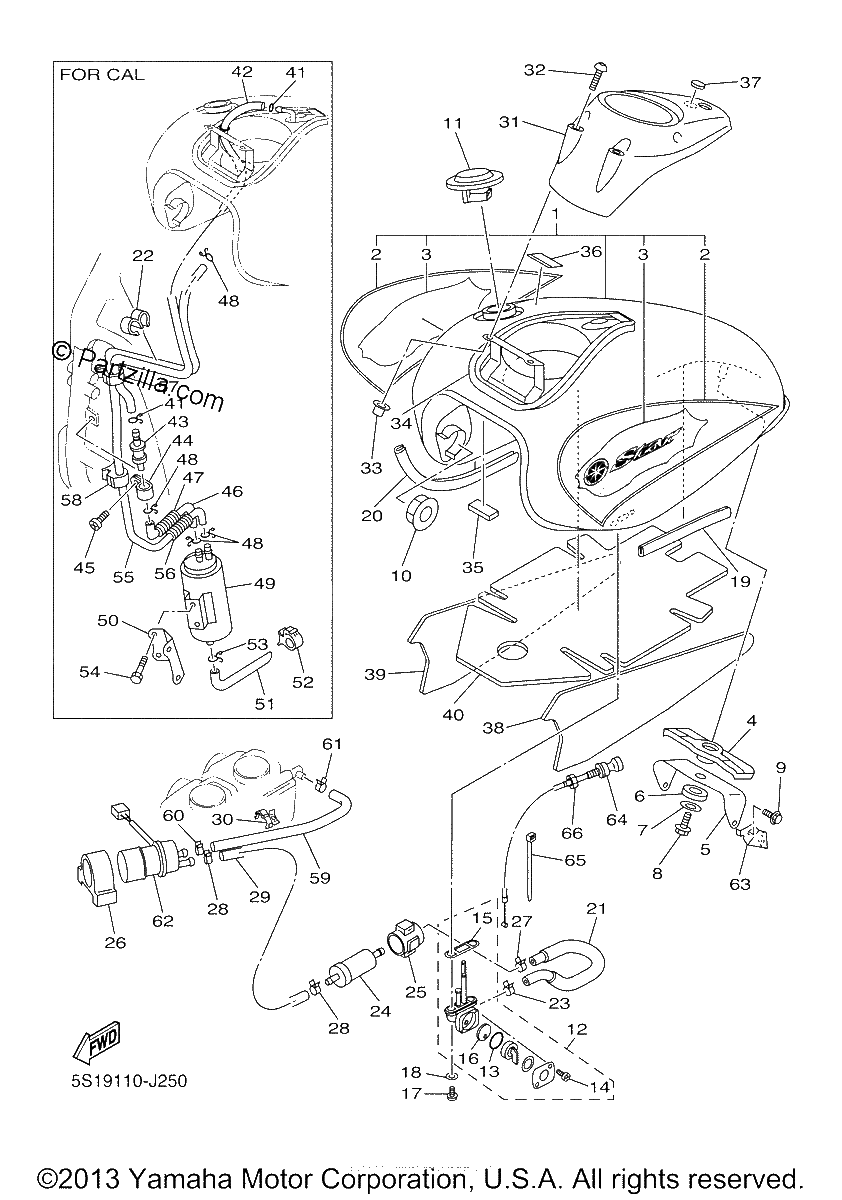

Diagrama de FUEL TANK

Repuestos

#0
5SC-Y2410-T0-04
FUEL TANK COMP. | FOR CALIFORNIA
$1039.59¢519 794
1
#0
4NK-24602-20-00
CAP ASSY
$125.82¢62 911
1
#1
5SC-Y2410-U0-02
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
$1154.59¢577 294
1
#2
5S1-24240-20-00
GRAPHIC SET
$152.43¢76 216
1
#3
5S1-24250-00-00
GRAPHIC SET 2
$91.79¢45 896
1
#4
4TR-24182-00-00
DAMPER, LOCATING 2
$17.72¢8 861
1
#5
4TR-2413Y-00-00
BRACKET, TANK FITTING
$15.02¢7 510
1
#6
4TR-24183-00-00
DAMPER, LOCATING 3
$7.28¢3 640
1
#7
90209-06011-00
WASHER
$4.47¢2 237
1
#8
92017-06012-00
BOLT, BUTTON HEAD
$2.24¢1 121
1
#9
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
#10
4H7-24181-00-00
DAMPER, LOCATING 1
$6.00¢3 001
1
#11
5BN-24602-10-00
CAP ASSY
$199.88¢99 941
1
#12
21V-24500-20-00
FUEL COCK ASSY 1
$51.50¢25 749
1
#13
3AJ-24534-01-00
SEAL, COCK
$10.21¢5 106
1
#14
98517-03008-00
SCREW, PAN HEAD
$3.00¢1 501
1
#15
4X8-24512-00-00
O-RING
$7.34¢3 669
1
#16
3AC-24523-00-00
VALVE PACKING
$12.71¢6 354
1
#17
90149-06011-00
SCREW,SPEC'L SHAPE
$1.79¢897
1
#18
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#19
1FK-2171L-00-00
MOLE, SIDE COVER 1
$23.17¢11 586
1
#20
1HX-24188-01-00
MOLD, FUEL TANK
$19.53¢9 763
1
#21
4TR-24313-10-00
PIPE 3
$59.39¢29 693
1
#22
90464-09M31-00
CLAMP
$6.77¢3 387
1
#23
90467-10038-00
CLIP
$2.21¢1 104
1
#24
1FK-24560-10-00
FILTER ASSY
$32.13¢16 066
1
#25
1FK-24566-00-00
BRACKET, FILTER
$24.14¢12 069
1
#26
4EB-24398-00-00
BAND 1
$27.06¢13 530
1
#27
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
1
#28
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
1
#29
4TR-24311-10-00
PIPE, FUEL 1
$29.59¢14 795
1
#30
90464-15192-00
CLAMP
$6.75¢3 375
1
#31
4TR-2171A-00-00
COVER, TOP
$116.05¢58 023
1
#32
90149-05299-00
SCREW
$3.90¢1 949
1
#33
90179-05523-00
NUT
$6.23¢3 117
1
#34
4TR-2414G-00-00
SEAL
$7.38¢3 691
1
#35
3XV-21717-00-00
DAMPER
$2.37¢1 185
1
#36
5GK-2118K-00-00
LABEL, CAUTION
$5.37¢2 685
1
#37
4TR-2413B-00-00
EMBLEM
No Disponible
1
#38
5SC-2414H-00-00
DAMPER, PLATE 1
$87.09¢43 545
1
#39
5SC-2414J-00-00
DAMPER, PLATE 2
$87.09¢43 545
1
#39
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#40
5SC-2414K-00-00
DAMPER, PLATE 3
$87.09¢43 545
1
#41
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#42
5BN-24312-10-00
PIPE 2 | FOR CALIFORNIA
$80.50¢40 250
1
#43
5PX-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$57.60¢28 802
1
#44
90464-15014-00
Clamp
$2.16¢1 081
1
#45
98907-05010-00
SCREW, BIND
$6.50¢3 249
1
#46
5BN-24314-10-00
PIPE 4 | FOR CALIFORNIA
$22.06¢11 029
1
#47
5BN-24327-00-00
PROTECTOR, PIPE | FOR CALIFORNIA
$13.59¢6 797
1
#48
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#49
2JU-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$376.42¢188 209
1
#50
5BN-2419F-00-00
BRACKET, CANISTOR | FOR CALIFORNIA
$55.95¢27 974
1
#51
5BN-24315-10-00
PIPE 5 | FOR CALIFORNIA
$22.16¢11 080
1
#52
90464-15192-00
CLAMP
$6.75¢3 375
1
#54
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
#55
5BN-24313-10-00
PIPE 3 | FOR CALIFORNIA
$107.90¢53 952
1
#56
5BN-24327-00-00
PROTECTOR, PIPE | FOR CALIFORNIA
$13.59¢6 797
1
#57
90464-20191-00
Clamp
$8.06¢4 031
1
#58
90464-15192-00
CLAMP
$6.75¢3 375
1
#59
4TR-14294-10-00
HOSE
$75.27¢37 634
1
#60
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
1
#61
90467-12124-00
CLIP
$3.04¢1 518
1
#62
5KS-13907-00-00
FUEL PUMP COMP.
$160.95¢80 477
1
#63
4TR-2637G-00-00
HOLDER, WIRE
$7.53¢3 766
1
#64
4TR-26331-00-00
CABLE, STARTER 1
$36.37¢18 187
1
#65
1UA-82591-00-00
BAND
$4.52¢2 260
1
#66
1VJ-26333-00-00
NUT
$7.28¢3 640
1
