CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

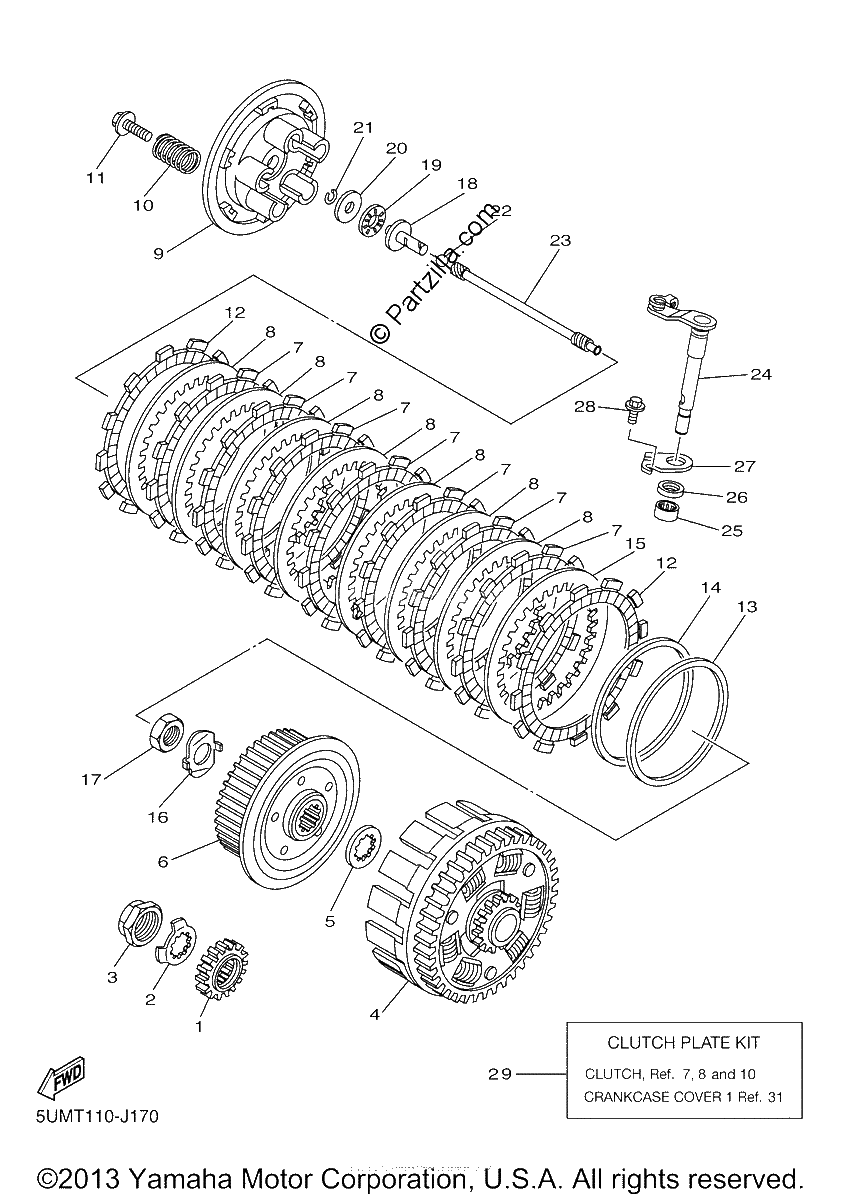

Diagrama de CLUTCH

Repuestos

#1
5NL-16111-01-00
GEAR, PRIMARY DRIVE
$103.74¢51 871
1
#2
90215-20003-00
Washer, Lock
$6.72¢3 358
1
#3
90179-18001-00
Nut
$15.03¢7 515
1
#4
5XC-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$304.38¢152 191
1
#5
5NL-16154-00-00
PLATE, THRUST 1
$15.87¢7 935
1
#6
5NL-16371-01-00
BOSS, CLUTCH
$162.40¢81 202
1
#7
5DH-16321-00-00
PLATE, FRICTION
$23.17¢11 586
1
#8
5NL-16325-00-00
PLATE, CLUTCH 2
$8.23¢4 117
1
#9
5HD-16351-00-00
PLATE, PRESSURE 1
$51.32¢25 662
1
#10
90501-220A0-00
SPRING, COMPRESSION | INCL. IN CLUTCH PLATE KIT
$5.91¢2 956
1
#11
90159-06092-00
SCREW, WITH WASHER
$6.88¢3 439
1
#12
3XJ-16321-00-00
PLATE, FRICTION
$21.75¢10 873
1
#13
5NL-16384-00-00
PLATE, SEAT
$17.56¢8 780
1
#14
5NL-16383-10-00
SPRING.,CUSHION
$91.97¢45 983
1
#15
5NL-16325-10-00
PLATE, CLUTCH 2
$14.41¢7 205
1
#16
90215-16289-00
WASHER, LOCK
$6.72¢3 358
1
#17
90170-16326-00
NUT
$12.06¢6 032
1
#18
1SM-16356-00-00
ROD, PUSH 1
$49.54¢24 771
1
#19
93340-21008-00
BEARING
$26.96¢13 478
1
#20
90201-080H1-00
WASHER, PLATE
$4.20¢2 099
1
#21
93440-07182-00
CIRCLIP
$3.44¢1 719
1
#22
93511-32027-00
BALL
$6.75¢3 375
1
#23
5NL-16357-10-00
ROD, PUSH 2
$40.79¢20 395
1
#24
5XC-16381-10-00
PUSH LEVER COMP.
$77.59¢38 795
1
#25
93317-11287-00
BEARING
$22.45¢11 224
1
#26
93102-12224-00
OIL SEAL
$9.14¢4 571
1
#27
4JT-16384-00-00
PLATE, SEAT
$31.96¢15 979
1
#28
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#29
5UM-W001G-00-00
CLUTCH PLATE KIT
$168.79¢84 393
1
