ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

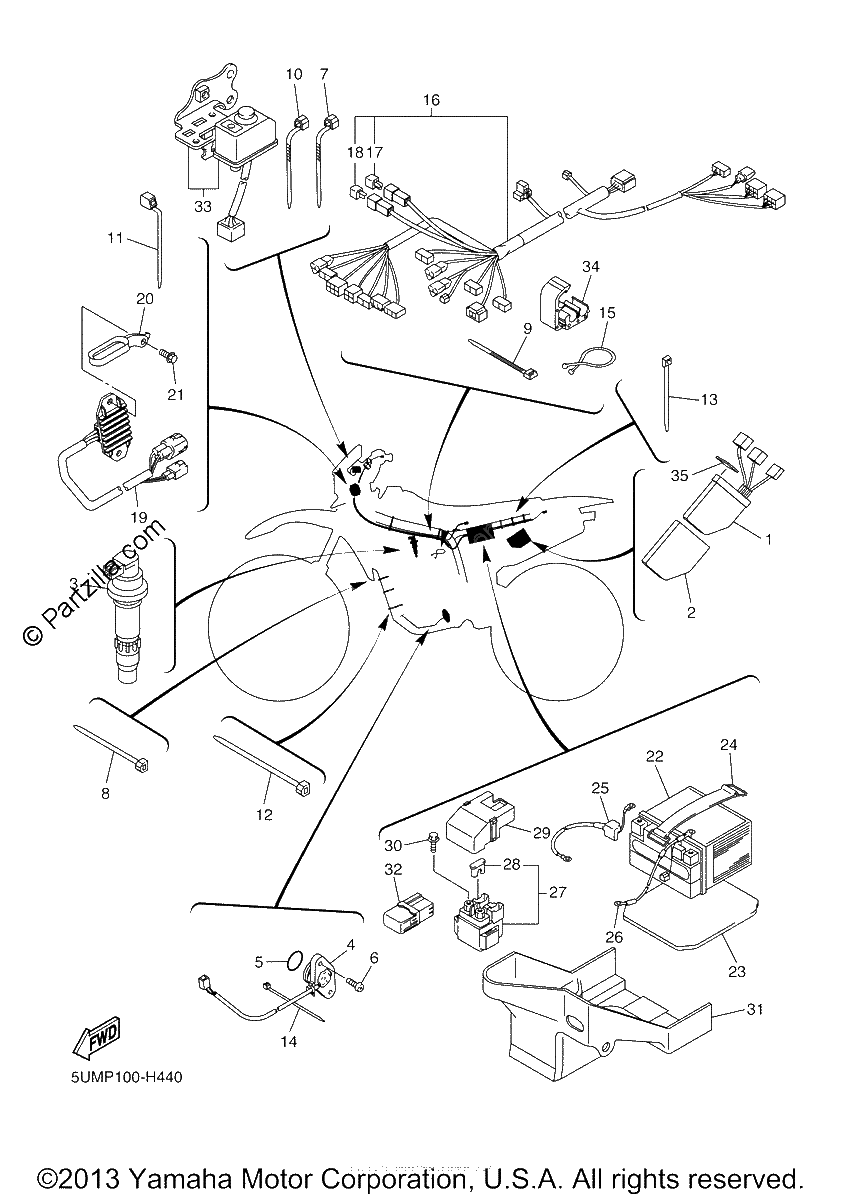

Diagrama de ELECTRICAL 1

Repuestos

#1
5UM-85540-E0-00
C.D.I. UNIT ASSY
$536.85¢268 425
1
#2
5UM-85546-E0-00
BAND
$34.38¢17 188
1
#3
5UL-82310-10-00
IGNITION COIL ASSY
$180.41¢90 206
1
#4
5TJ-82540-01-00
NEUTRAL SWITCH ASSY
$79.54¢39 769
1
#5
93210-21001-00
O-RING
$5.69¢2 844
1
#6
98902-05014-00
SCREW, BIND
$1.44¢719
1
#7
90464-13077-00
CLAMP
$7.94¢3 969
1
#8
90464-15152-00
CLAMP
$5.19¢2 594
1
#9
90464-15152-00
CLAMP
$5.19¢2 594
1
#10
90464-15195-00
CLAMP
$3.30¢1 650
1
#11
1UA-82591-00-00
BAND
$4.91¢2 456
1
#12
90464-15195-00
CLAMP
$3.30¢1 650
1
#13
1UA-82591-00-00
BAND
$4.91¢2 456
1
#14
5Y9-12491-00-00
CLAMP 1
$7.86¢3 931
1
#15
90464-25267-00
CLAMP (replaces 341-82594-00-00)
$6.91¢3 456
1
#16
5TJ-82590-E0-00
WIRE HARNESS ASSY
$424.52¢212 263
1
#17
5TJ-81980-00-00
DIODE ASSY
$26.83¢13 413
1
#18
4WA-81980-00-00
DIODE ASSY
$30.92¢15 462
1
#19
5UM-81960-E0-00
RECTIFIER REGULATOR ASSY
$264.66¢132 331
1
#20
5UM-21288-E0-00
GUIDE, CABLE
$6.25¢3 125
1
#21
90105-06110-00
Bolt, Flange
$7.46¢3 731
1
#22
YTZ-7SHE0-00-00
YTZ7S HE YUASA BATT
No Disponible
1
#23
5UM-82176-E0-00
DAMPER
$8.03¢4 013
1
#24
8CY-82131-00-00
BAND, BATTERY
$12.21¢6 106
1
#25
5TJ-82115-00-00
WIRE, PLUS LEAD
$12.36¢6 181
1
#26
5UM-82116-E0-00
WIRE, MINUS LEAD
$24.22¢12 112
1
#27
5TJ-81940-12-00
STARTER RELAY ASSY (RC19-042)
$115.78¢57 888
1
#28
42X-82151-00-00
FUSE (10A-BL)
$2.64¢1 319
1
#29
5SL-82119-10-00
COVER, LEAD WIRE
$4.84¢2 419
1
#30
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#31
5UM-81952-E0-00
HOLDER, RELAY
$31.61¢15 806
1
#32
5UM-81950-E0-00
RELAY ASSY (5UM-E0)
$21.74¢10 869
1
#33
5UM-82510-E1-00
MAIN SWITCH ASSY
$124.59¢62 294
1
#34
90464-06004-00
CLAMP
$1.41¢706
1
#35
5UM-8235Y-E0-00
DAMPER
$2.20¢1 100
1
