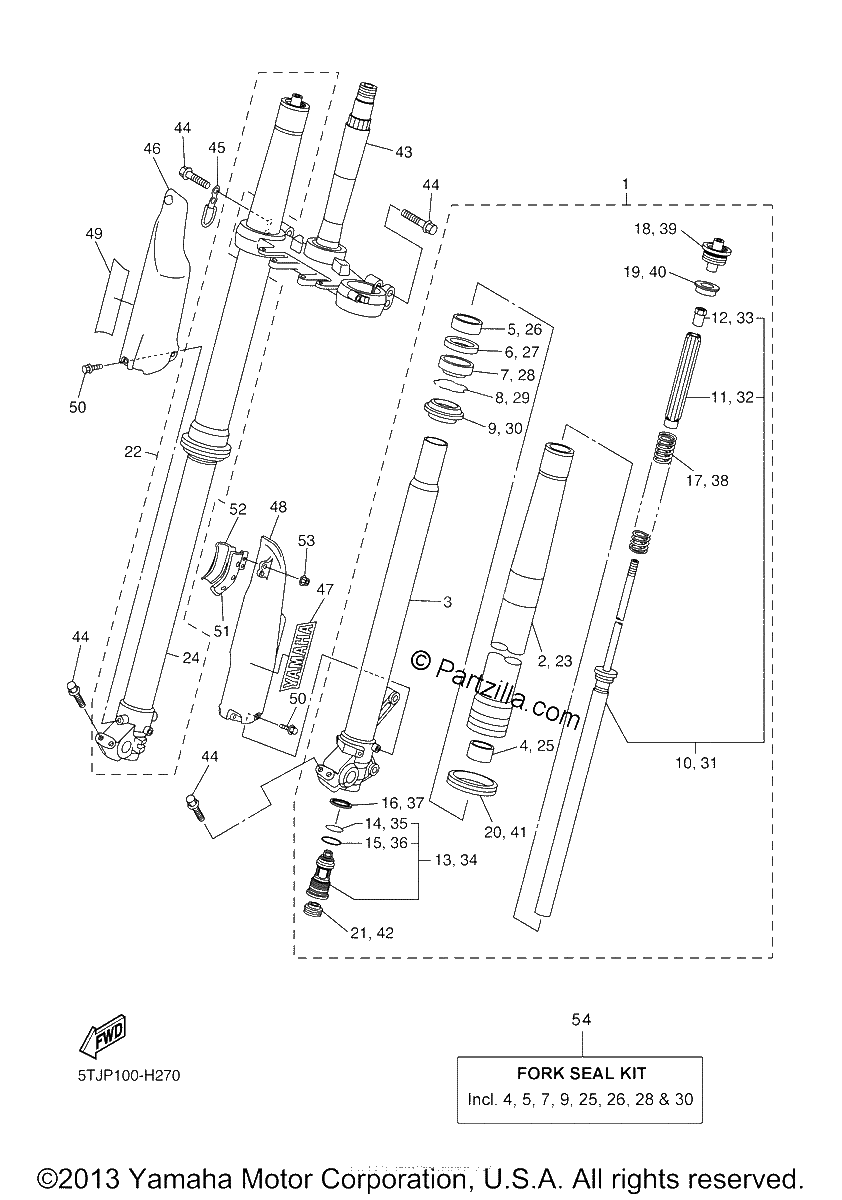

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1928.74¢964 369
#2
TUBE, OUTER
$802.49¢401 244
#3
INNER TUBE COMP. 2
$566.99¢283 494
#4
PISTON, FRONT FORK
$24.64¢12 319
#5
METAL, SLIDE 1
$25.02¢12 513
#6
WASHER, OIL SEAL
$12.90¢6 450
#7
OIL SEAL | INCL. IN FORK SEAL KIT
$30.84¢15 419
#8
RING, SNAP
$7.65¢3 825
#9
SEAL, DUST
$22.95¢11 475
#10
CYLINDER COMP., FRONT FORK
$559.75¢279 875
#11
SEAT, SPRING UPPER
$21.99¢10 994
#12
NUT, SPECIAL
$26.63¢13 313
#13
VALVE COMP.
$282.54¢141 269
#14
O-RING
$7.10¢3 550
#15
O-RING
$7.10¢3 550
#16
GASKET
$8.03¢4 013
#17
SPRING,FRONT FORK (K=4.4N/M
$114.99¢57 494
#18
BOLT, CAP
$254.60¢127 300
#19
GUIDE, SPRING
$8.03¢4 013
#20
PROTECTER GUIDE COMP., 1
$50.45¢25 225
#21
PLUG
$7.08¢3 538
#22
FRONT FORK ASSY (R.H)
$1727.49¢863 744
#23
TUBE, OUTER
$802.49¢401 244
#24
INNER TUBE COMP.1
$481.91¢240 956
#25
PISTON, FRONT FORK
$24.64¢12 319
#26
METAL, SLIDE 1
$25.02¢12 513
#27
WASHER, OIL SEAL
$12.90¢6 450
#28
OIL SEAL | INCL. IN FORK SEAL KIT
$30.84¢15 419
#29
RING, SNAP
$7.65¢3 825
#30
SEAL, DUST
$22.95¢11 475
#31
CYLINDER COMP., FRONT FORK
$559.75¢279 875
#32
SEAT, SPRING UPPER
$21.99¢10 994
#33
NUT, SPECIAL
$26.63¢13 313
#34
VALVE COMP.
$282.54¢141 269
#35
O-RING
$7.10¢3 550
#36
O-RING
$7.10¢3 550
#37
GASKET
$8.03¢4 013
#38
SPRING,FRONT FORK (K=4.4N/M
$114.99¢57 494
#39
NUT, FLANGE
$2.44¢1 219
#39
BOLT, CAP
$254.60¢127 300
#40
GUIDE, SPRING
$8.03¢4 013
#41
PROTECTER GUIDE COMP., 1
$50.45¢25 225
#42
PLUG
$7.08¢3 538
#43
UNDER BRACKET COMP.
$836.24¢418 119
#44
BOLT, FLANGE
$6.99¢3 494
#45
GUIDE
$25.99¢12 994
#46
PROTECTOR 2
$16.54¢8 269
#47
EMBLEM, YAMAHA
$9.83¢4 913
#48
PROTECTOR 1
$20.16¢10 081
#49
EMBLEM, YAMAHA
$9.83¢4 913
#50
BOLT 2
$6.35¢3 175
#51
CLAMP
$5.66¢2 831
#52
CLAMP
$13.01¢6 506
#54
FORK SEAL KIT
$75.91¢37 956
