EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

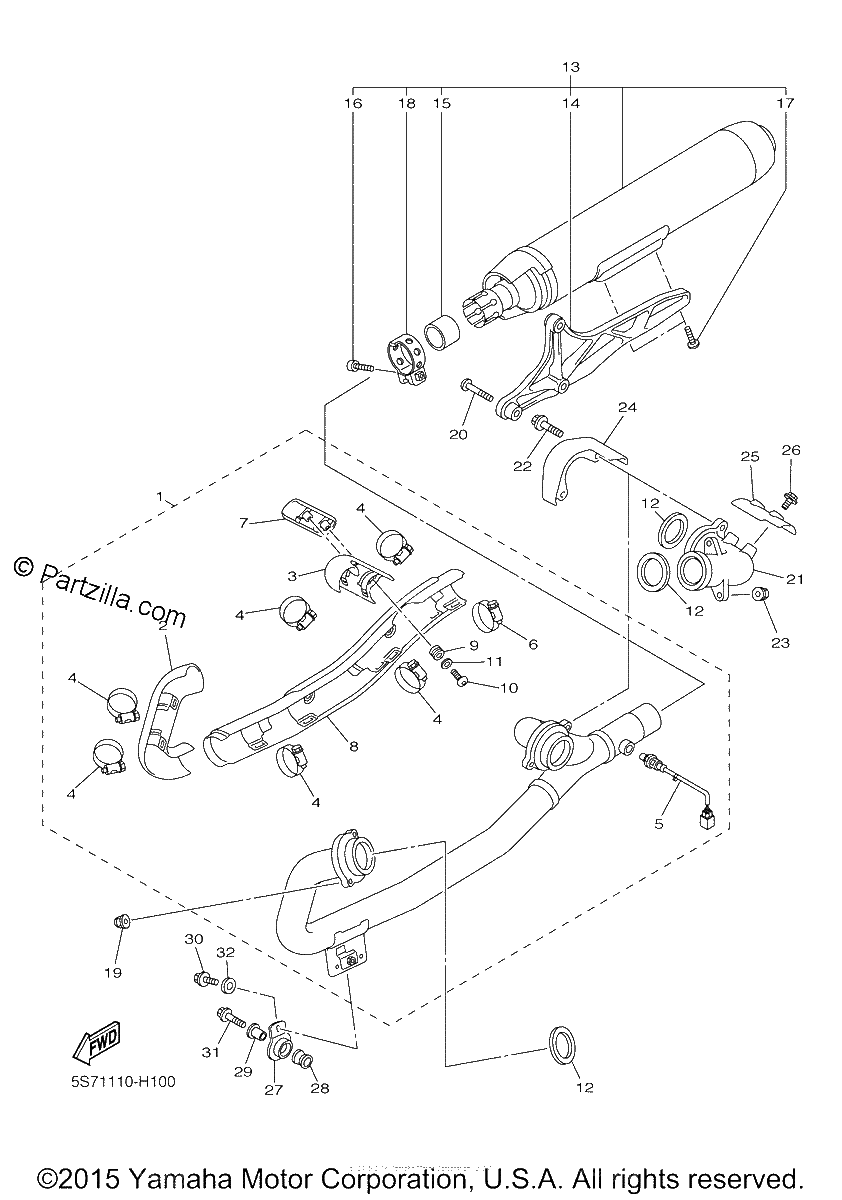

Diagrama de EXHAUST

Repuestos

#1
5S7-14610-10-00
EXHAUST PIPE ASSY 1
$1463.74¢731 869
1
#2
5S7-14718-10-00
PROTECTOR, MUFFLER 1
$241.28¢120 638
1
#3
5S7-14728-10-00
PROTECTOR, MUFFLER 2
$308.27¢154 138
1
#4
90450-40001-00
HOSE CLAMP ASSY
$14.51¢7 256
1
#5
5S7-8592A-00-00
SENSOR, OXYGEN
$248.92¢124 462
1
#6
90450-45001-00
HOSE CLAMP ASSY
$23.13¢11 563
1
#7
5S7-14748-00-00
PROTECTOR, MUFFLER 4
$131.48¢65 738
1
#8
5S7-14738-12-00
PROTECTOR, MUFFLER 3
$746.24¢373 119
1
#9
90480-17005-00
GROMMET
$7.03¢3 513
1
#10
90149-06280-00
SCREW
$5.45¢2 725
1
#11
90201-064K6-00
WASHER, PLATE
$7.48¢3 738
1
#12
3EG-14613-00-00
GASKET, EXHAUST PIPE
$24.02¢12 013
1
#13
5S7-14710-00-00
MUFFLER ASSY 1
$1661.24¢830 619
1
#14
5S7-14772-00-00
STAY, MUFFLER 2
$308.02¢154 013
1
#15
5YU-14755-00-00
GASKET, SILENCER
$29.51¢14 756
1
#16
91314-08040-00
BOLT (3JP)
$6.25¢3 125
1
#17
90111-10006-00
BOLT, HEX. SOCKET BUTTON
$5.50¢2 750
1
#18
5S7-14715-00-00
BAND, MUFFLER
$57.98¢28 988
1
#19
90176-08006-00
NUT, CROWN
$3.44¢1 719
1
#20
90111-10032-00
BOLT, HEX. SOCKET BUTTON
$6.29¢3 144
1
#21
5S7-14615-00-00
JOINT, EXHAUST 1
$128.46¢64 231
1
#22
95814-08035-00
BOLT,FLANGE (replaces 95824-08035-00)
$7.94¢3 969
1
#23
90185-08146-00
NUT, SELF-LOCKING
$10.10¢5 050
1
#24
5S7-14624-00-00
COVER, EXHAUST
$109.98¢54 988
1
#25
5S7-1468W-00-00
PLATE, SILENCER 3
$14.20¢7 100
1
#26
95880-06010-00
BOLT, FLANGE
$4.35¢2 175
1
#27
5S7-14649-00-00
STAY, EXHAUST PIPE 2
$38.94¢19 469
1
#28
5VY-14747-00-00
DAMPER, MUFFLER
$14.65¢7 325
1
#29
90387-08021-00
COLLAR
$10.14¢5 069
1
#30
95817-08020-00
BOLT, FLANGE
$8.31¢4 156
1
#31
95817-08030-00
BOLT, FLANGE
$7.34¢3 669
1
#32
90201-087A9-00
WASHER, PLATE
$4.45¢2 225
1
