REAR ARM SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

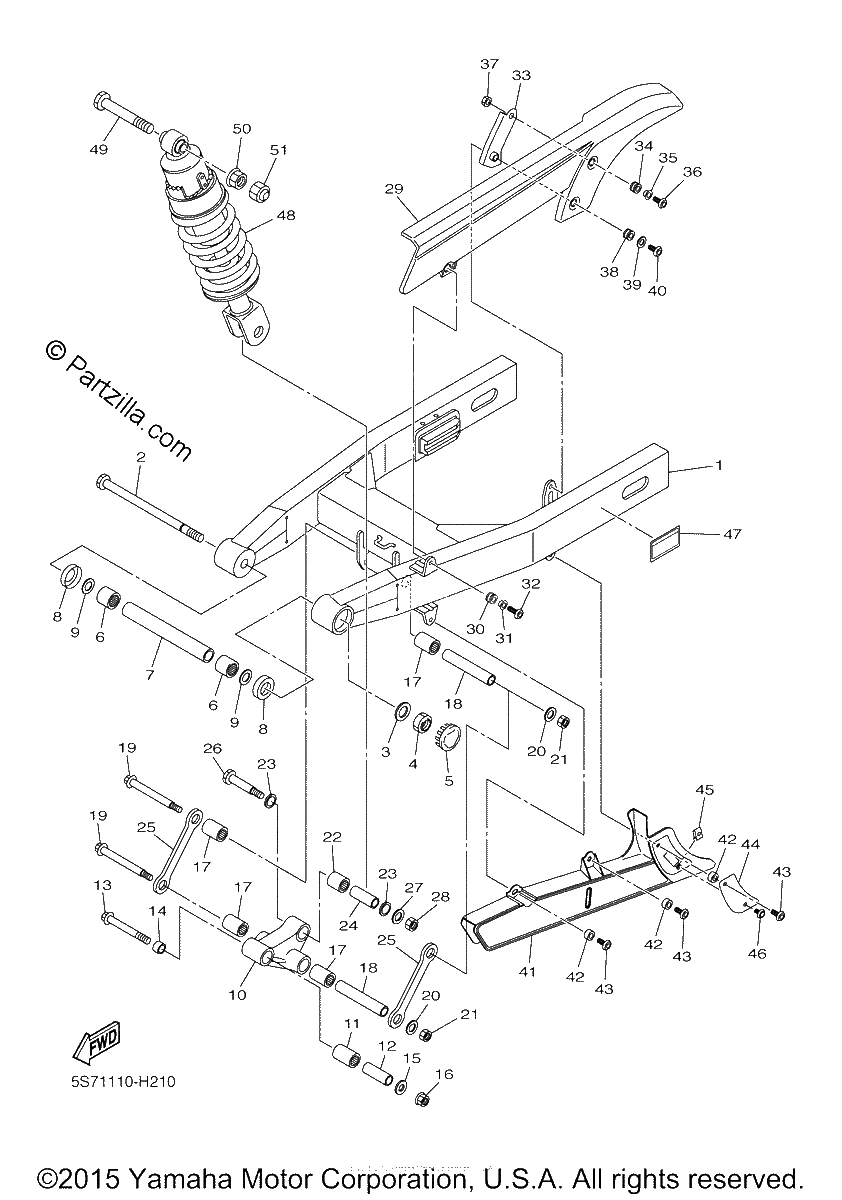

Diagrama de REAR ARM SUSPENSION

Repuestos

#1
5S7-22110-10-00
REAR ARM COMP.
$902.49¢451 244
1
#2
3D8-22141-01-00
SHAFT, PIVOT
$40.32¢20 162
1
#3
90201-16018-00
WASHER, plate
$7.99¢3 994
1
#4
90185-16002-00
NUT, SELF-LOCKING
$18.00¢9 000
1
#5
4KM-2219X-00-00
COVER
$13.20¢6 600
1
#6
93320-32403-00
BEARING
$48.22¢24 112
1
#7
3D8-22124-00-00
BUSH 2
$73.45¢36 725
1
#8
5EL-22129-00-00
COVER, THRUST 2
$28.86¢14 431
1
#9
90201-243U9-00
WASHER, PLATE
$8.97¢4 488
1
#10
3D8-2217A-00-00
ARM, RELAY
$141.76¢70 881
1
#11
93317-42060-00
BEARING
$48.22¢24 112
1
#12
90387-100T8-00
COLLAR
$23.77¢11 888
1
#13
90105-10233-00
BOLT, FLANGE
$7.69¢3 844
1
#14
90387-10049-00
COLLAR
$21.11¢10 556
1
#15
90201-101J1-00
WASHER, PLATE
$7.34¢3 669
1
#16
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#17
93317-41761-00
BEARING
$43.64¢21 819
1
#18
90387-126T1-00
COLLAR
$24.56¢12 281
1
#19
90101-12027-00
BOLT
$11.34¢5 669
1
#20
90201-12045-00
WASHER, PLATE
$6.14¢3 069
1
#21
95612-12100-00
NUT, U
$4.88¢2 438
1
#22
93317-31771-00
BEARING
$37.88¢18 938
1
#23
93109-17071-00
OIL SEAL
$8.03¢4 013
1
#24
90387-127W0-00
COLLAR
$13.27¢6 637
1
#25
3D8-2217M-00-00
ARM 1
$22.71¢11 356
1
#26
90109-10024-00
BOLT
$8.19¢4 094
1
#27
90201-10035-00
WASHER, plate
$4.25¢2 125
1
#28
95617-10100-00
NUT, U
$7.35¢3 675
1
#29
5S7-22311-00-00
CASE, CHAIN
$45.66¢22 831
1
#30
90480-13004-00
GROMMET
$6.91¢3 456
1
#31
90387-06171-00
COLLAR
$7.46¢3 731
1
#32
90149-06302-00
SCREW
$5.11¢2 556
1
#33
3D8-2213J-00-00
STAY, CHAIN CASE
$17.69¢8 844
1
#34
90480-13004-00
GROMMET
$6.91¢3 456
1
#35
90387-06171-00
COLLAR
$7.46¢3 731
1
#36
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#37
95380-06600-00
NUT, HEXAGON
$5.05¢2 525
1
#38
90480-13004-00
GROMMET
$6.91¢3 456
1
#39
90201-06095-00
WASHER, PLATE (replaces 90201-06063-00)
$7.49¢3 744
1
#40
90149-06302-00
SCREW
$5.11¢2 556
1
#41
3D8-22312-00-00
CASE, CHAIN 2
$54.38¢27 188
1
#42
90387-06106-00
COLLAR
$6.45¢3 225
1
#43
90149-06302-00
SCREW
$5.11¢2 556
1
#44
5S7-22341-00-00
PLATE, GUIDE 1
$14.15¢7 075
1
#45
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#46
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
#47
5S7-21668-00-00
LABEL, TIRE
$2.35¢1 175
1
#48
5S7-22210-20-00
SHOCK ABSORBER ASSY, REAR
No Disponible
1
#49
90109-10028-00
BOLT
$5.21¢2 606
1
#50
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#51
5YU-2143A-00-00
CAP
$5.55¢2 775
1
