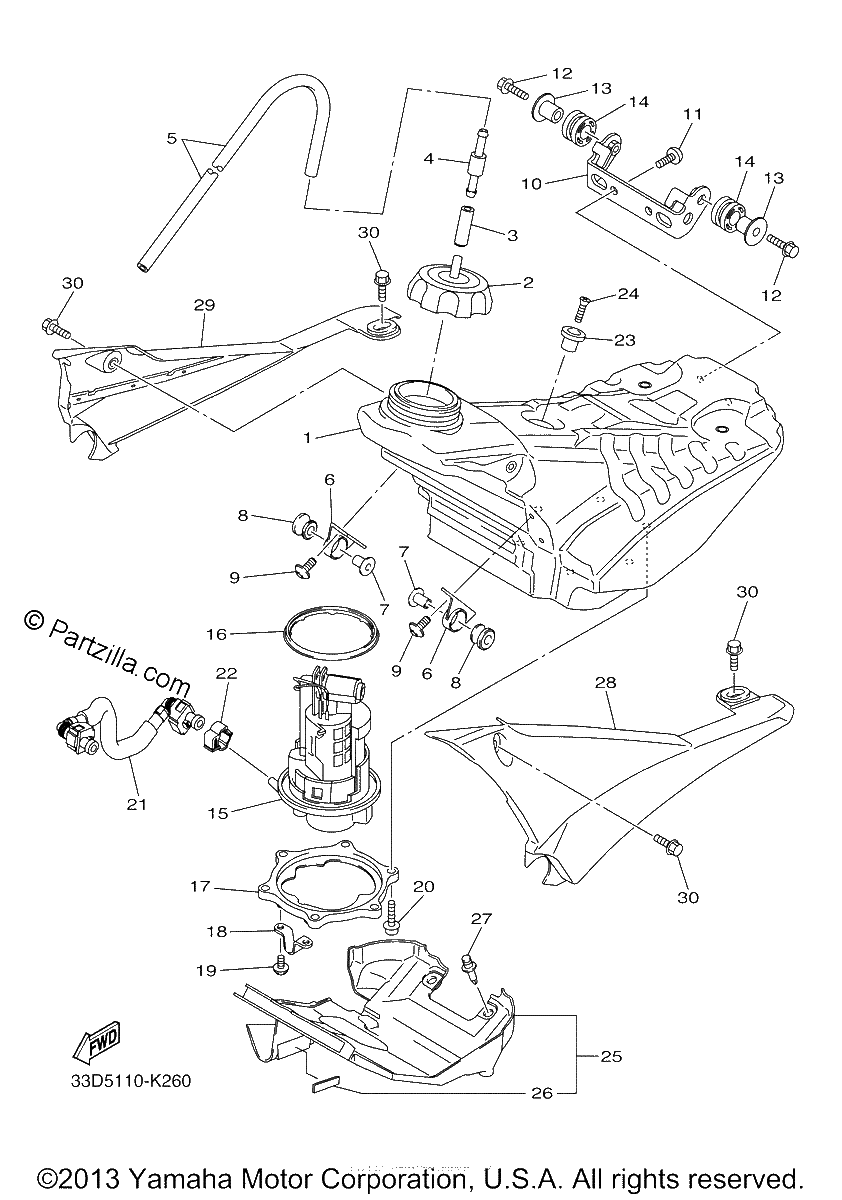

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
TANK SIDE COVER ASSY 1 | Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 )
No Disponible
#0
TANK SIDE COVER ASSY 2 | Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 )
$61.80¢30 900
#1
FUEL TANK COMP.
$579.99¢289 994
#2
CAP ASSY
$65.79¢32 894
#3
HOSE (L420)
$13.09¢6 544
#4
PIPE JOINT ASSY
$37.21¢18 606
#5
HOSE (L420)
$13.09¢6 544
#6
HOLDER, DAMPER
$51.10¢25 550
#7
COLLAR
$7.41¢3 706
#8
Grommet
$10.50¢5 250
#9
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
#10
HOLDER
$69.23¢34 613
#11
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
#12
BOLT, FLANGE
$1.75¢875
#13
COLLAR
$7.71¢3 856
#14
GROMMET
$6.57¢3 287
#15
FUEL PUMP COMP.
$568.65¢284 325
#16
O-Ring
$34.04¢17 019
#17
Bracket, Fuel Pump
$82.25¢41 125
#18
BRACKET, FUEL TANK 2
$18.31¢9 156
#19
SCREW, BIND
$1.89¢944
#20
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#21
PIPE, FUEL 1
$110.69¢55 344
#22
CLAMP 1
$10.39¢5 194
#23
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$15.13¢7 563
#24
Screw, Flat Head
$7.34¢3 669
#25
COVER
$30.24¢15 119
#26
DAMPER
$5.11¢2 556
#27
RIVET
$1.82¢913
#28
TANK SIDE COVER ASSY 1 | Use for Color YAMAHA BLACK ( YB / 0033 )
$56.66¢28 331
#29
TANK SIDE COVER ASSY 2 | Use for Color YAMAHA BLACK ( YB / 0033 )
No Disponible
#30
Bolt, Flange
$3.17¢1 588
