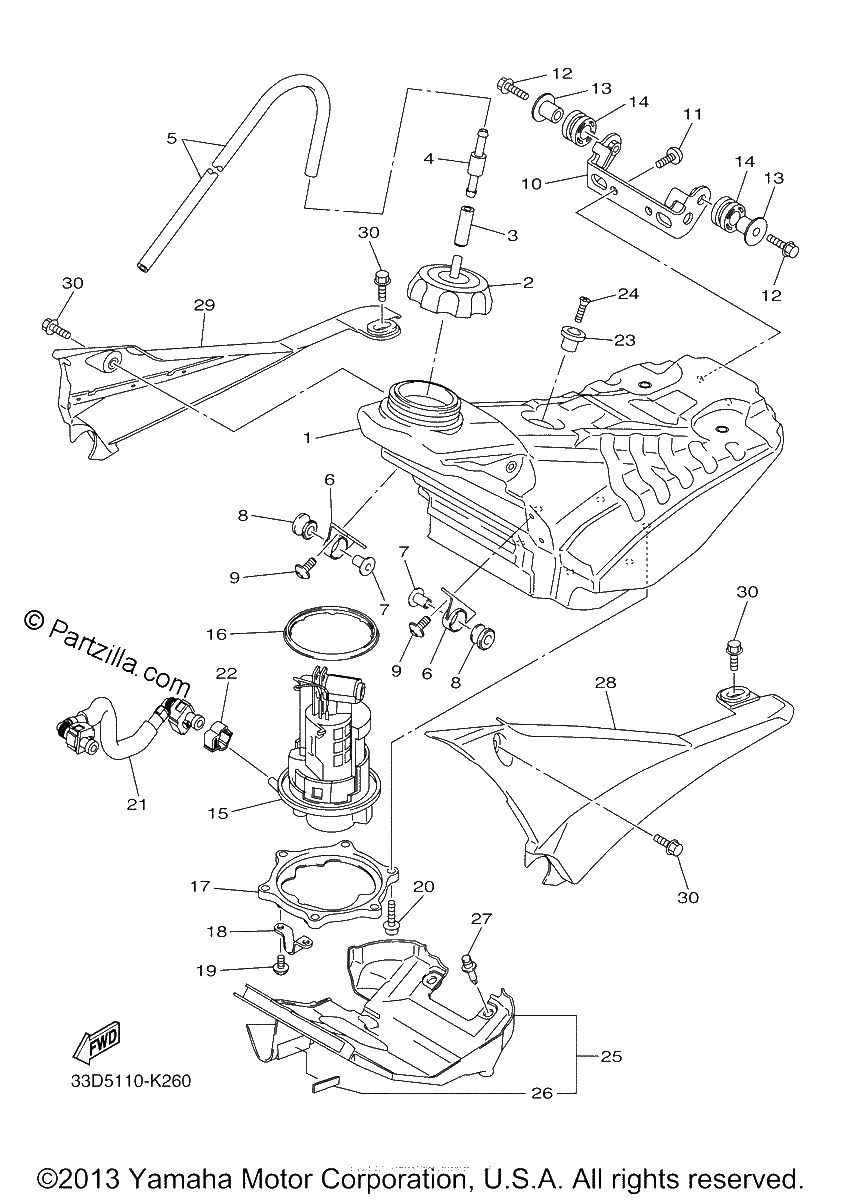

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
TANK SIDE COVER ASSY 1 | Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 )
No Disponible
#0
TANK SIDE COVER ASSY 2 | Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 )
$56.86¢28 428
#1
FUEL TANK COMP.
$533.59¢266 794
#2
CAP ASSY
$60.52¢30 262
#3
HOSE (L420)
$12.04¢6 020
#4
PIPE JOINT ASSY
$34.24¢17 118
#5
HOSE (L420)
$12.04¢6 020
#6
HOLDER, DAMPER
$47.01¢23 506
#7
COLLAR
$6.82¢3 410
#8
Grommet
$9.66¢4 830
#9
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
#10
HOLDER
$63.69¢31 844
#11
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
#12
BOLT, FLANGE
$1.61¢805
#13
COLLAR
$7.10¢3 548
#14
GROMMET
$6.05¢3 024
#15
FUEL PUMP COMP.
$523.16¢261 579
#16
O-Ring
$31.31¢15 657
#17
Bracket, Fuel Pump
$75.67¢37 835
#18
BRACKET, FUEL TANK 2
$16.85¢8 424
#19
SCREW, BIND
$1.74¢868
#20
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#21
PIPE, FUEL 1
$101.83¢50 916
#22
CLAMP 1
$9.56¢4 778
#23
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$13.91¢6 958
#24
Screw, Flat Head
$6.75¢3 375
#25
COVER
$27.82¢13 909
#26
DAMPER
$4.70¢2 352
#27
RIVET
$1.68¢839
#28
TANK SIDE COVER ASSY 1 | Use for Color YAMAHA BLACK ( YB / 0033 )
$52.13¢26 065
#29
TANK SIDE COVER ASSY 2 | Use for Color YAMAHA BLACK ( YB / 0033 )
No Disponible
#30
Bolt, Flange
$2.92¢1 461
