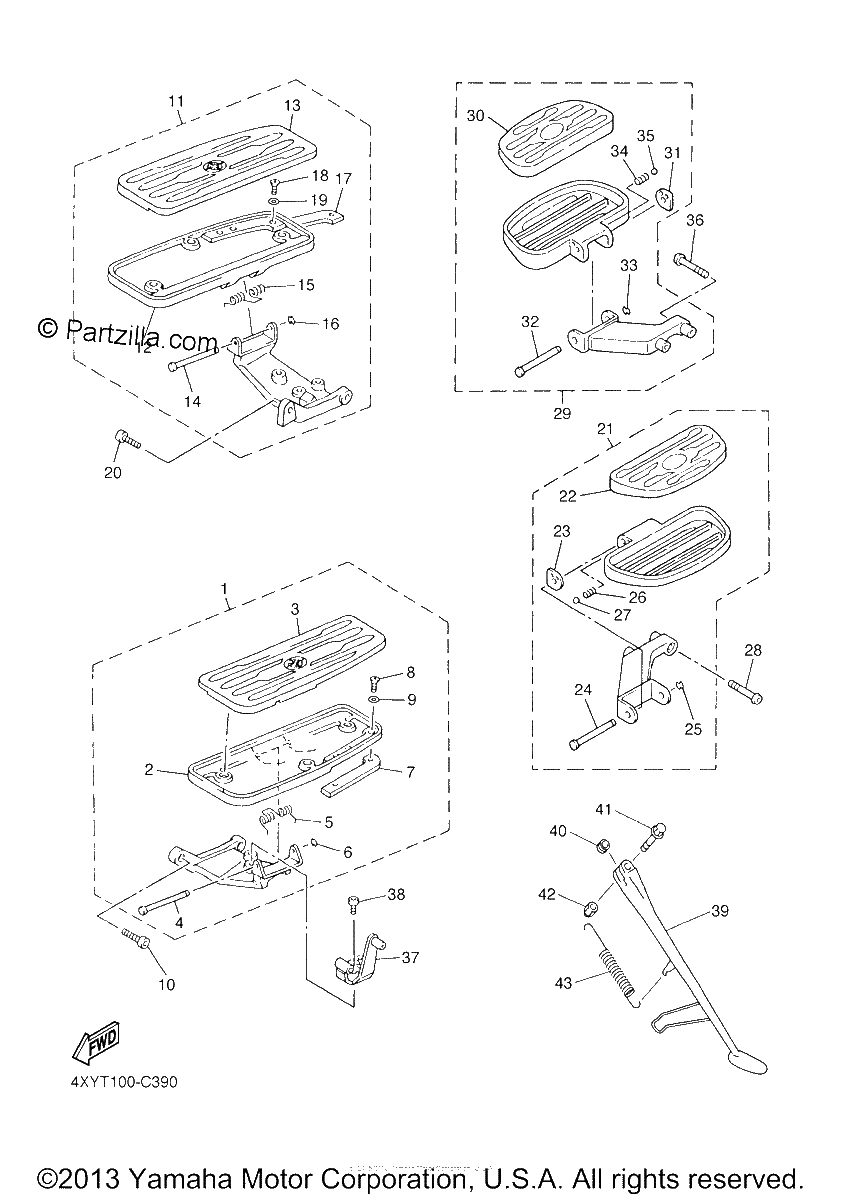

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FOOTREST ASSY (LEFT)
$298.18¢149 092
#2
FOOTREST
$65.25¢32 625
#3
COVER, FOOTREST
$78.33¢39 163
#4
SHAFT
$6.73¢3 364
#5
SPRING, RETURN
$6.95¢3 473
#6
CIRCLIP
$0.94¢471
#7
MOLE 1
$25.40¢12 702
#8
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
#9
WASHER
$4.48¢2 242
#10
BOLT
$7.51¢3 755
#11
FRONT FOOTREST ASSY (RIGHT)
$298.18¢149 092
#12
FOOTREST
$85.62¢42 809
#13
COVER, FOOTREST
$78.80¢39 399
#14
SHAFT
$6.73¢3 364
#15
SPRING, RETURN
$6.95¢3 473
#16
CIRCLIP
$0.94¢471
#17
MOLE 2
$25.44¢12 719
#18
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$3.86¢1 932
#19
WASHER
$4.48¢2 242
#20
BOLT
$7.51¢3 755
#21
REAR FOOTREST ASSY 1
$259.23¢129 616
#22
COVER, REAR FOOTREST
No Disponible
#23
WASHER, SPECIAL
$5.58¢2 789
#24
SHAFT
$3.69¢1 846
#25
CIRCLIP
$0.94¢471
#26
SPRING, COMPRESSION
$7.30¢3 651
#27
BALL
$6.87¢3 433
#28
BOLT, BUTTON HEAD
$3.12¢1 558
#29
REAR FOOTREST ASSY 2
$259.23¢129 616
#30
COVER, REAR FOOTREST
No Disponible
#31
WASHER, SPECIAL
$5.58¢2 789
#32
SHAFT
$3.69¢1 846
#33
CIRCLIP
$0.94¢471
#34
SPRING, COMPRESSION
$7.30¢3 651
#35
BALL
$6.87¢3 433
#36
BOLT, BUTTON HEAD
$3.12¢1 558
#37
BRACKET 3
$119.94¢59 973
#38
BOLT
$5.75¢2 875
#39
STAND, SIDE
$228.88¢114 442
#40
COLLAR
$16.30¢8 148
#41
BOLT, FLANGE
$8.18¢4 088
#42
NUT,SELF-LOCKING
$11.07¢5 537
#43
SPRING, TENSION
$19.86¢9 930
