INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

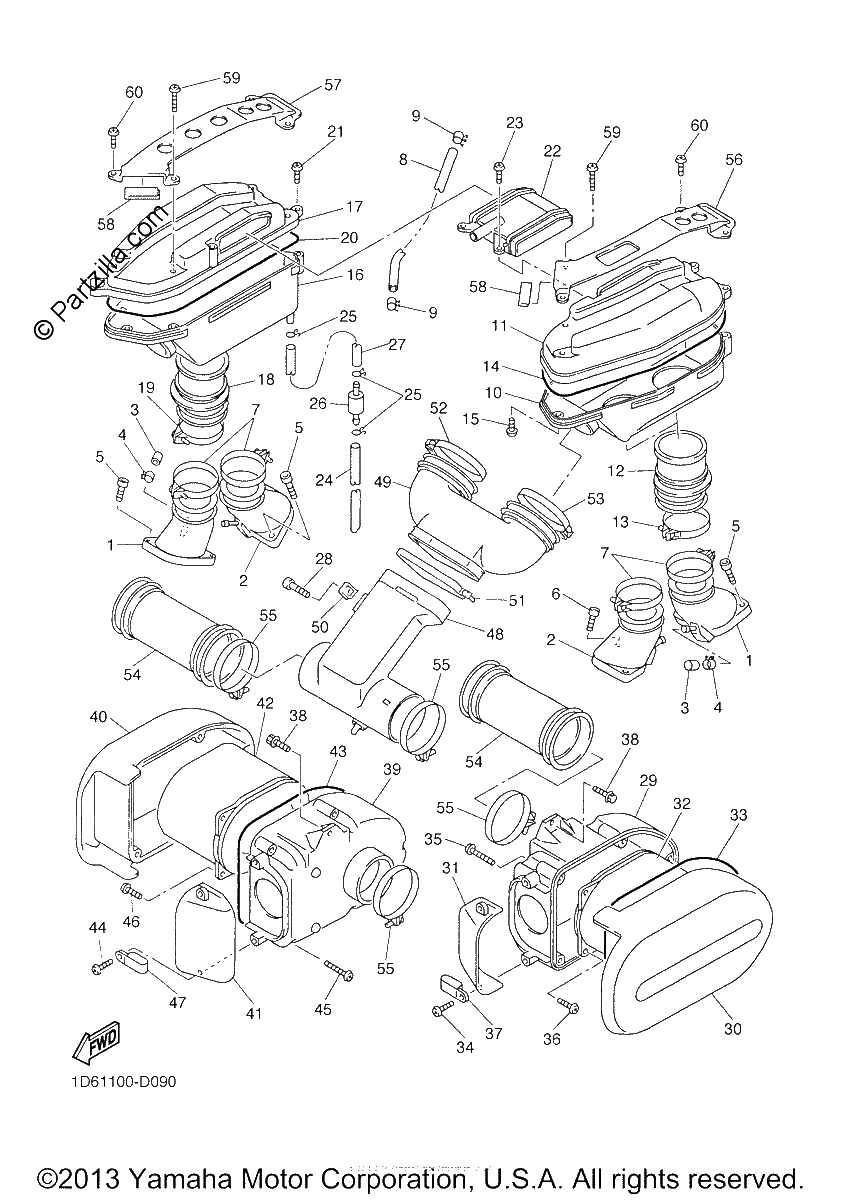

Diagrama de INTAKE

Repuestos

#1
4XY-13586-10-00
JOINT, CARBURETOR 1
$115.15¢57 575
1
#2
4XY-13596-10-00
JOINT, CARBURETOR 2
$135.33¢67 663
1
#3
16G-13569-00-00
PLUG,BLIND
$8.03¢4 013
1
#4
90467-10039-00
CLIP
$7.81¢3 906
1
#5
91317-06020-00
BOLT (4FL)
$2.60¢1 300
1
#6
91317-06016-00
BOLT
$1.46¢731
1
#7
4XY-13575-00-00
BAND
$25.29¢12 644
1
#8
4XY-13971-10-00
PIPE, FUEL 1
$81.29¢40 644
1
#9
90467-13133-00
CLIP(3YX) (replaces 90467-13083-00)
$6.27¢3 137
1
#10
4XY-14411-00-00
CASE, AIR CLEANER 1
$89.24¢44 619
1
#11
4XY-14417-01-00
COVER 1
No Disponible
1
#12
4XY-14453-00-00
JOINT, AIR CLEANER 1
$36.59¢18 294
1
#13
90450-58002-00
HOSE CLAMP ASSY
$18.00¢9 000
1
#14
1VJ-14462-00-00
SEAL (replaces 5XT-14462-00-00)
$19.15¢9 575
1
#15
97707-50620-00
SCREW, TRUSS (replaces 97707-50520-00)
$7.69¢3 844
1
#16
4XY-14421-00-00
CASE, AIR CLEANER 2
$79.74¢39 869
1
#17
4XY-14418-01-00
COVER 2
$36.85¢18 425
1
#18
4XY-14453-00-00
JOINT, AIR CLEANER 1
$36.59¢18 294
1
#19
90450-58002-00
HOSE CLAMP ASSY
$18.00¢9 000
1
#20
1VJ-14462-00-00
SEAL (replaces 5XT-14462-00-00)
$19.15¢9 575
1
#21
97707-50620-00
SCREW, TRUSS (replaces 97707-50520-00)
$7.69¢3 844
1
#22
4XY-14485-00-00
PIPE, JOINT
$42.75¢21 375
1
#23
97707-50516-00
SCREW, TAPPING
$0.64¢319
1
#24
90445-112E1-00
HOSE (L)
$24.33¢12 163
1
#25
90467-11106-00
Clip
$3.25¢1 625
1
#26
4X7-2149Y-00-00
FILTER ASSY
$20.51¢10 256
1
#27
2UJ-14419-00-00
PIPE
$27.35¢13 675
1
#28
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#29
4XY-14431-02-00
SILENCER, INTAKE 1
$42.29¢21 144
1
#30
4XY-1442A-00-00
COVER, CLEANER CASE 3
$69.24¢34 619
1
#31
4XY-14437-00-00
DUCT
$18.15¢9 075
1
#32
4XY-14451-01-00
ELEMENT, AIR CLEANER
$41.50¢20 750
1
#33
1VJ-14462-00-00
SEAL (replaces 5XT-14462-00-00)
$19.15¢9 575
1
#34
97707-50525-00
SCREW, TAPPING
$7.35¢3 675
1
#35
97707-50140-00
SCREW, TAPPING
$6.19¢3 094
1
#36
97707-50516-00
SCREW, TAPPING
$0.64¢319
1
#37
90461-08113-00
CLAMP
$12.90¢6 450
1
#38
95814-06012-00
BOLT, FLANGE | FOR CALIFORNIA
$2.71¢1 356
1
#39
4XY-14431-02-00
SILENCER, INTAKE 1
$42.29¢21 144
1
#39
1D6-11387-00-00
CLAMP, HOSE 1
$13.43¢6 713
1
#40
4XY-1442A-00-00
COVER, CLEANER CASE 3
$69.24¢34 619
1
#41
4XY-14437-00-00
DUCT
$18.15¢9 075
1
#42
4XY-14451-01-00
ELEMENT, AIR CLEANER
$41.50¢20 750
1
#43
1VJ-14462-00-00
SEAL (replaces 5XT-14462-00-00)
$19.15¢9 575
1
#44
97707-50525-00
SCREW, TAPPING
$7.35¢3 675
1
#45
97707-50140-00
SCREW, TAPPING
$6.19¢3 094
1
#46
97707-50516-00
SCREW, TAPPING
$0.64¢319
1
#47
90461-08113-00
CLAMP
$12.90¢6 450
1
#48
4XY-1441A-00-00
COVER, CLEANER CASE 1
$43.16¢21 581
1
#49
4XY-14463-00-00
JOINT, AIR CLEANER 2
$69.45¢34 725
1
#50
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#51
4XY-14455-00-00
BAND
$28.20¢14 100
1
#52
1D6-11387-00-00
CLAMP, HOSE 1
$13.43¢6 713
1
#54
4XY-14454-00-00
JOINT
$21.94¢10 969
1
#55
1D6-11387-00-00
CLAMP, HOSE 1
$13.43¢6 713
1
#56
4XY-82361-00-00
CLAMP, CORD
$39.85¢19 925
1
#57
4XY-82362-00-00
CLAMP, CORD 2
$39.85¢19 925
1
#58
4XY-82388-01-00
PLATE
$10.56¢5 281
1
#59
97707-50140-00
SCREW, TAPPING
$6.19¢3 094
1
#60
97707-50525-00
SCREW, TAPPING
$7.35¢3 675
1
