FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

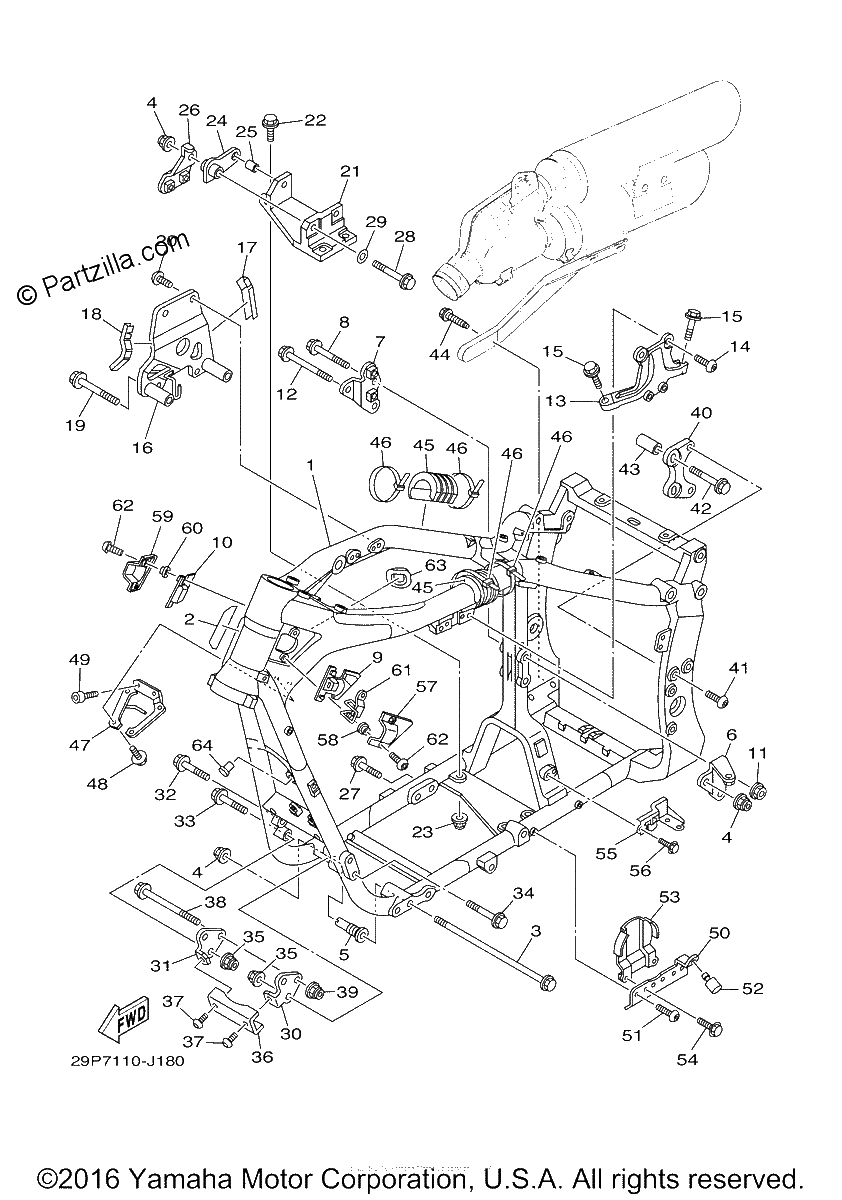

Diagrama de FRAME

Repuestos

#1
5C7-21110-01-00
FRAME COMP.
$4535.59¢2 267 794
1
#2
1D7-24141-00-00
PROTECTOR, FUEL TANK
$9.51¢4 755
1
#3
90105-126A6-00
BOLT, FLANGE
$21.00¢10 500
1
#4
95602-12200-00
NUT, SELF-LOCKING
$4.19¢2 093
1
#5
5PX-21495-01-00
BOLT, ENGINE ADJUSTING
$33.80¢16 899
1
#6
1D7-21315-00-00
STAY, ENGINE 1
$32.03¢16 014
1
#7
5PX-21316-00-00
STAY, ENGINE 2
$16.55¢8 274
1
#8
90105-10737-00
BOLT, FLANGE
$11.12¢5 560
1
#9
5C7-2112C-00-00
DAMPER 2
$16.04¢8 021
1
#10
5C7-2112D-00-00
DAMPER 3
$16.04¢8 021
1
#11
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#12
90105-12689-00
BOLT, FLANGE
No Disponible
1
#13
5C7-21317-00-00
STAY, ENGINE 3
$187.66¢93 828
1
#14
90111-10003-00
BOLT,HEX. SOCKET BUTTON
$6.75¢3 375
1
#15
90105-12018-00
BOLT, FLANGE
$10.99¢5 497
1
#16
5C7-21319-00-00
STAY, ENGINE 6
$228.69¢114 345
1
#17
1D7-21669-00-00
SEAL
$8.42¢4 209
1
#18
5C7-21268-00-00
SEAL
$8.76¢4 382
1
#19
90105-12067-00
BOLT, FLANGE
$9.27¢4 635
1
#20
90111-10030-00
BOLT,HEX. SOCKET BUTTON
$4.11¢2 053
1
#21
1D7-21318-01-00
STAY, ENGINE 4
$315.08¢157 539
1
#22
95817-10030-00
BOLT,FLANGE (replaces 95827-10030-00)
$6.75¢3 375
1
#23
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#24
1D7-2142G-00-00
STAY 1
$39.27¢19 636
1
#25
90387-12033-00
COLLAR
$7.14¢3 571
1
#26
1D7-21387-00-00
STAY, ENGINE 7
$20.02¢10 011
1
#27
95817-10045-00
BOLT, FLANGE
$4.97¢2 484
1
#28
90101-12025-00
BOLT
$13.64¢6 819
1
#29
90201-12045-00
WASHER, PLATE
$5.65¢2 823
1
#30
1D7-2142H-01-00
STAY 2
No Disponible
1
#31
1D7-2142J-01-00
STAY 3
No Disponible
1
#32
90105-10049-00
BOLT, FLANGE
$7.31¢3 657
1
#33
90105-10060-00
BOLT, FLANGE
$6.19¢3 093
1
#34
90105-10167-00
BOLT, FLANGE
$8.63¢4 313
1
#35
90185-10008-00
NUT, SELF-LOCKING
$6.27¢3 134
1
#36
1D7-2115L-00-00
BRACKET, MEMBER 1
$24.55¢12 276
1
#37
92014-08020-00
BOLT, BUTTON HEAD
$7.30¢3 651
1
#38
90105-12016-00
BOLT, FLANGE
$12.75¢6 377
1
#39
5C7-2317L-00-00
COVER, HORN
$65.95¢32 976
1
#39
90185-12002-00
NUT, SELF-LOCKING
$11.01¢5 503
1
#40
1D7-2137F-00-00
STAY 1
$47.92¢23 960
1
#41
90111-10009-00
BOLT,HEX. SOCKET BUTTON
$6.08¢3 042
1
#42
95812-10075-00
BOLT, FLANGE
$4.29¢2 145
1
#43
1D7-21116-01-00
COLLAR
$9.72¢4 859
1
#44
90105-10166-00
BOLT, FLANGE
$7.70¢3 852
1
#45
5C7-24183-00-00
DAMPER, LOCATING 3
$13.42¢6 710
1
#46
3MA-82591-00-00
BAND
$6.95¢3 473
1
#47
5C7-2116A-00-00
STAY 1
$61.16¢30 579
1
#48
95027-06014-00
BOLT, FLANGE
$0.84¢420
1
#49
91317-06020-00
BOLT (4FL)
$2.39¢1 196
1
#50
5C7-21343-00-00
BRACKET, HORN
$115.33¢57 667
1
#51
90111-08002-00
BOLT, HEX. SOCKET BUTTON
$7.95¢3 973
1
#52
1D7-27114-00-00
STOPPER, MAIN STAND
$5.85¢2 927
1
#54
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#55
5C7-21453-00-00
BRACKET, SWITCH
$21.68¢10 839
1
#56
90105-06696-00
BOLT, FLANGE
$6.88¢3 439
1
#57
5C7-2171E-00-00
COVER, SIDE 5
$13.48¢6 739
1
#58
90387-06210-00
COLLAR
$6.96¢3 479
1
#59
5C7-2171X-00-00
COVER, SIDE 6
$19.15¢9 574
1
#60
90387-06192-00
COLLAR
$5.30¢2 651
1
#61
5C7-2171H-00-00
GUIDE
$34.34¢17 170
1
#62
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
1
#63
5C7-21773-00-00
GROMMET
$11.76¢5 882
1
#64
90338-16148-00
PLUG,SPEC'L SHAPE
$10.87¢5 434
1
