FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

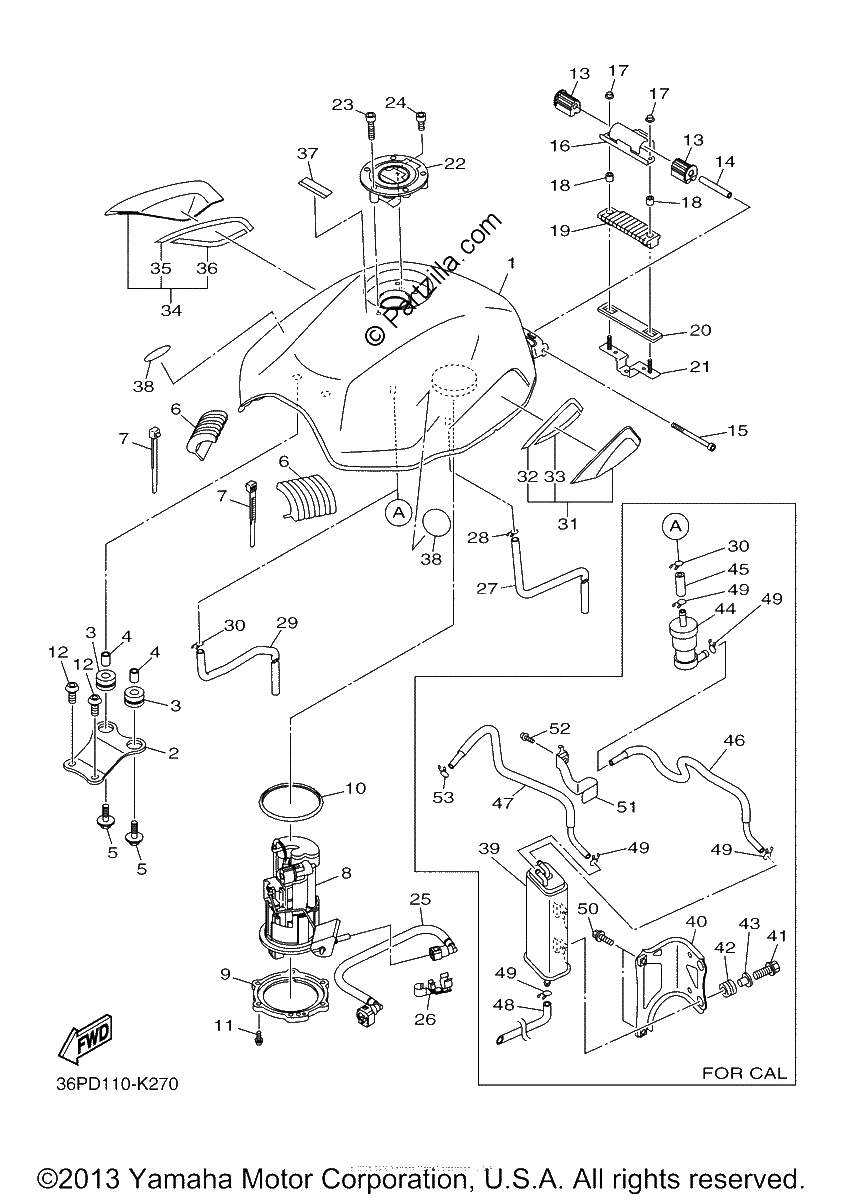

Diagrama de FUEL TANK

Repuestos

#0
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#1
20S-Y2410-00-06
FUEL TANK COMP. | DYRC4
$1282.24¢641 119
1
#2
20S-24191-00-00
BRACKET, FUEL TANK 1
$24.21¢12 104
1
#3
90480-16010-00
GROMMET
$3.43¢1 713
1
#4
90387-06068-00
COLLAR
$3.21¢1 604
1
#5
90119-06234-00
BOLT, WITH WASHER
$6.05¢3 024
1
#6
20S-24183-00-00
DAMPER, LOCATING 3
$5.96¢2 978
1
#7
90465-15011-00
Clamp
$2.14¢1 070
1
#8
20S-13907-00-00
FUEL PUMP COMP.
$639.39¢319 694
1
#9
13S-24491-00-00
BRACKET, FUEL PUMP
$40.32¢20 160
1
#10
19B-24486-01-00
O-RING
$40.92¢20 458
1
#11
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#12
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#13
5VX-24181-00-00
DAMPER, LOCATING 1
$13.87¢6 935
1
#14
90387-061W6-00
COLLAR
$7.44¢3 720
1
#15
91314-06090-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#16
20S-2413Y-00-00
BRACKET, TANK FITTING
$44.22¢22 109
1
#17
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#18
90387-07598-00
COLLAR
$5.30¢2 651
1
#19
20S-24181-00-00
DAMPER, LOCATING 1
$7.98¢3 991
1
#20
20S-2414H-00-00
DAMPER, PLATE 1
$8.21¢4 105
1
#21
20S-21296-00-00
NUT
$9.95¢4 974
1
#22
39P-24602-00-00
CAP ASSY
$248.96¢124 482
1
#23
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#24
91317-05010-00
BOLT,HEX.SOCKET HEAD
$1.84¢920
1
#25
5VX-13971-00-00
PIPE, FUEL 1
$95.19¢47 593
1
#26
90464-16005-00
CLAMP
$11.73¢5 865
1
#27
90445-105K7-00
HOSE (L650)
$14.86¢7 429
1
#28
90467-090A2-00
Clip
$2.74¢1 368
1
#29
90445-105K7-00
HOSE (L650)
$14.86¢7 429
1
#30
90467-090A2-00
Clip
$2.74¢1 368
1
#31
20S-24106-01-00
TANK SIDE COVER ASSY 1
$74.99¢37 496
1
#32
20S-2173T-10-00
TAPE 1
$13.42¢6 710
1
#33
20S-2173T-20-00
TAPE 1
$11.29¢5 647
1
#34
20S-24108-01-00
TANK SIDE COVER ASSY 2
$65.04¢32 522
1
#35
20S-2173U-10-00
TAPE 2
$13.42¢6 710
1
#36
20S-2173U-20-00
TAPE 2
$11.29¢5 647
1
#37
5GK-2118K-00-00
LABEL, CAUTION
$5.37¢2 685
1
#38
5JW-2413B-00-00
EMBLEM
$49.68¢24 840
1
#39
5C7-24170-00-00
CANISTER ASSY | FOR CAL
$305.73¢152 864
1
#39
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#40
36P-2419F-00-00
BRACKET, CANISTOR | FOR CALIFORNIA
No Disponible
1
#41
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#42
90480-13163-00
GROMMET | FOR CALIFORNIA
$6.51¢3 254
1
#43
90387-062L2-00
COLLAR | FOR CALIFORNIA
$6.22¢3 111
1
#44
5RB-24180-00-00
ROLL OVER VALVE ASSY
$113.10¢56 551
1
#45
90445-11065-00
HOSE (L30) | FOR CALIFORNIA
$3.48¢1 742
1
#46
36P-24314-00-00
PIPE 4 | FOR CALIFORNIA
No Disponible
1
#47
36P-14466-00-00
PIPE | FOR CALIFORNIA
$68.11¢34 057
1
#48
36P-24315-00-00
PIPE 5 | FOR CALIFORNIA
No Disponible
1
#49
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#50
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.30¢3 651
1
#51
36P-24667-00-00
GUIDE, PIPE | FOR CALIFORNIA
No Disponible
1
#52
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
