RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

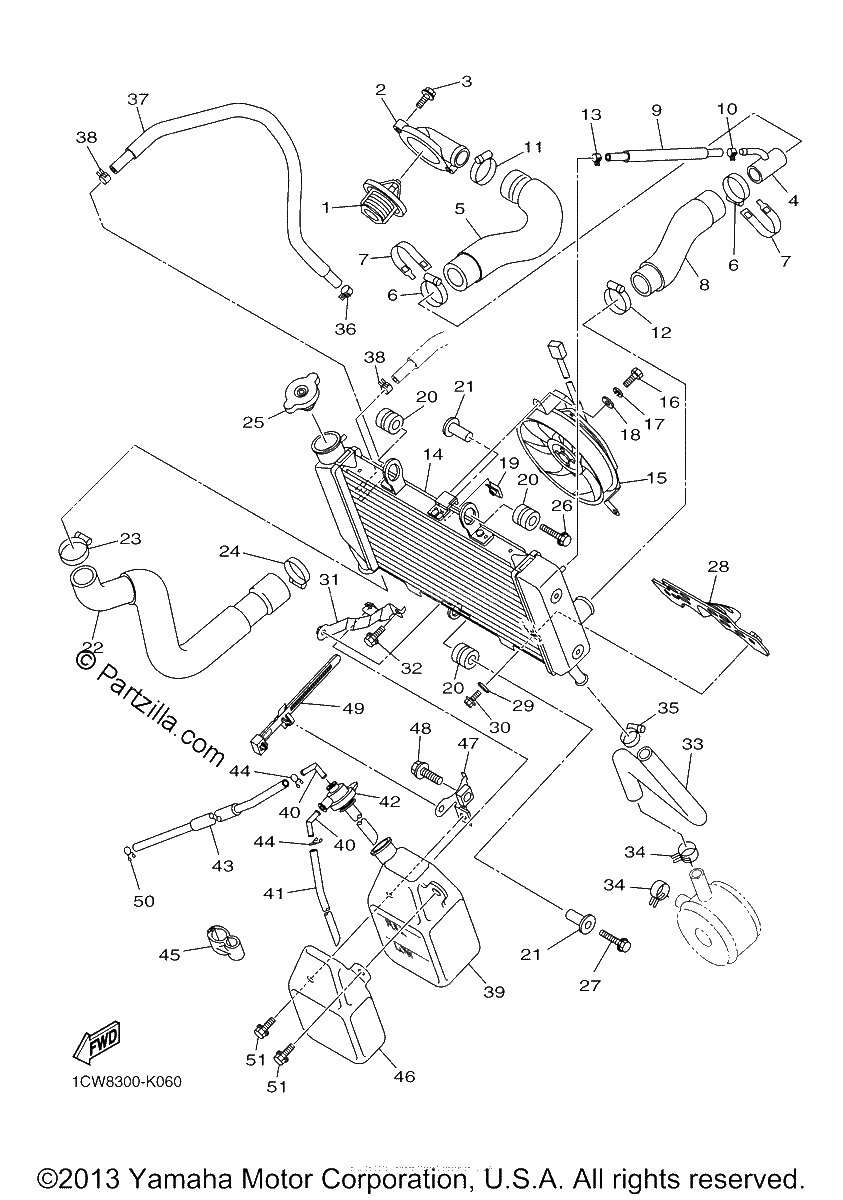

Diagrama de RADIATOR HOSE

Repuestos

#1
5SL-12410-00-00
THERMOSTAT ASSY
$54.82¢27 410
1
#2
5VX-12413-00-00
COVER, THERMOSTAT
$63.18¢31 590
1
#3
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
1
#4
20S-12582-01-00
JOINT, HOSE 2
$41.09¢20 545
1
#5
20S-12578-00-00
HOSE 3
$23.03¢11 517
1
#6
90450-32003-00
HOSE CLAMP ASSY
$15.50¢7 751
1
#7
20S-1246E-00-00
COVER 2
$2.82¢1 409
1
#8
20S-12551-00-00
HOSE 7
$30.57¢15 283
1
#9
90445-12012-00
HOSE
$6.03¢3 013
1
#10
90467-10135-00
CLIP
$7.58¢3 789
1
#11
90460-20190-00
CLAMP, HOSE
$16.74¢8 372
1
#12
90450-32003-00
HOSE CLAMP ASSY
$15.50¢7 751
1
#13
90467-10135-00
CLIP
$7.58¢3 789
1
#14
20S-12461-01-00
RADIATOR COMP
$700.34¢350 169
1
#15
20S-12405-20-00
BLOWER ASSY
$392.36¢196 179
1
#16
97017-06012-00
BOLT
$2.86¢1 432
1
#17
92907-06100-00
WASHER, SPRING
$1.13¢564
1
#18
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#19
1AA-12535-00-00
PLATE
$13.48¢6 739
1
#20
90480-15363-00
GROMMET
$6.75¢3 375
1
#21
90387-0614M-00
COLLAR
$9.04¢4 520
1
#22
20S-12579-00-00
HOSE 4
$44.37¢22 184
1
#23
90450-32003-00
HOSE CLAMP ASSY
$15.50¢7 751
1
#24
90460-20190-00
CLAMP, HOSE
$16.74¢8 372
1
#25
4FL-12462-00-00
CAP, RADIATOR
$62.33¢31 165
1
#26
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
1
#27
95817-06030-00
BOLT,FLANGE (replaces 95807-06030-00)
$4.28¢2 139
1
#28
20S-12535-00-00
PLATE
$16.77¢8 384
1
#29
90201-06025-00
WASHER, PLATE
$3.83¢1 915
1
#30
95814-06012-00
BOLT, FLANGE | FOR CALIFORNIA
$2.50¢1 248
1
#31
20S-1244E-00-00
BRACKET 1
$20.47¢10 235
1
#32
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#33
20S-12589-00-00
HOSE 6
$13.71¢6 854
1
#34
90467-200A0-00
CLIP
$8.69¢4 347
1
#35
90450-22M14-00
HOSE CLAMP ASSY
$15.11¢7 555
1
#36
90467-10135-00
CLIP
$7.58¢3 789
1
#37
90445-12009-00
HOSE
$19.14¢9 568
1
#38
90467-10135-00
CLIP
$7.58¢3 789
1
#39
4P5-21871-00-00
TANK, RECOVERY
$50.37¢25 185
1
#40
26H-21828-00-00
ELBOW
$24.05¢12 023
1
#41
90445-08684-00
HOSE
$3.68¢1 840
1
#42
20S-21875-10-00
CAP
$15.79¢7 895
1
#43
90445-08025-00
HOSE
$19.31¢9 654
1
#44
90467-08021-00
CLIP
$6.75¢3 375
1
#45
90464-10233-00
CLAMP
$6.96¢3 479
1
#46
4P5-2172W-00-00
COVER
$55.58¢27 790
1
#47
4P5-21873-00-00
BRACKET, RECOVERY TANK
$11.05¢5 526
1
#48
95817-10020-00
BOLT, FLANGE
$5.75¢2 875
1
#49
90464-07012-00
CLAMP
$5.98¢2 990
1
#50
90467-08021-00
CLIP
$6.75¢3 375
1
#51
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
