SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

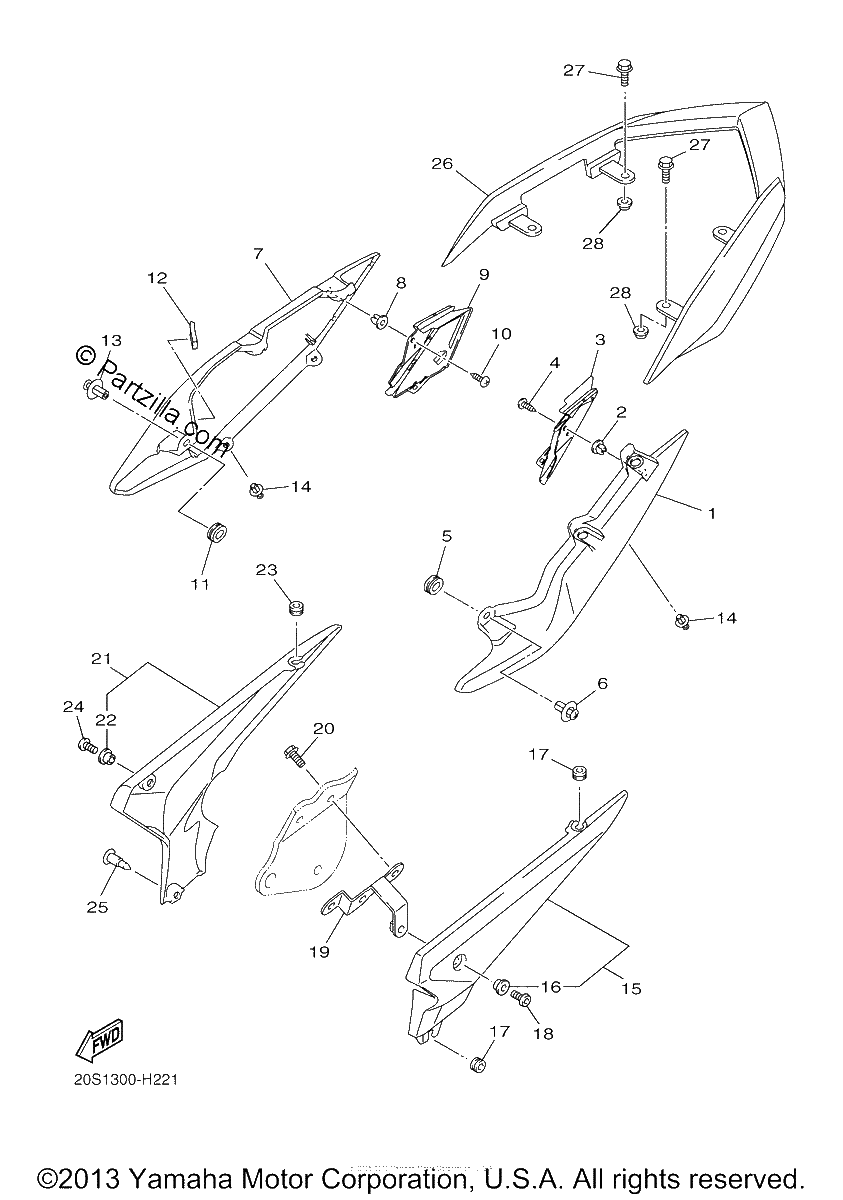

Diagrama de SIDE COVER

Repuestos

#1
20S-21711-00-PB
COVER, SIDE 1 | DYRC4
$88.15¢44 074
1
#2
90480-08005-00
GROMMET
$6.88¢3 439
1
#3
20S-2163A-00-00
COVER, REAR FENDER 1
$14.17¢7 084
1
#4
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
1
#5
5PW-2174X-00-00
DAMPER
$6.51¢3 254
1
#6
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#7
20S-21721-00-PB
COVER, SIDE 2 | DYRC4
$88.15¢44 074
1
#8
90480-08005-00
GROMMET
$6.88¢3 439
1
#9
20S-2163E-00-00
COVER, REAR FENDER 2
$12.35¢6 176
1
#10
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
1
#11
5PW-2174X-00-00
DAMPER
$6.51¢3 254
1
#12
4C8-24182-00-00
DAMPER, LOCATING 2
$7.08¢3 542
1
#13
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#14
90269-07077-00
RIVET
$7.59¢3 795
1
#15
20S-21730-00-00
SIDE COVER ASSY 3
$41.05¢20 528
1
#16
90387-06130-00
Collar
$7.93¢3 968
1
#17
90480-10334-00
Grommet
$7.56¢3 778
1
#18
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#19
20S-2172U-00-00
BRKT 7
$15.97¢7 987
1
#20
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#21
20S-21740-00-00
SIDE COVER ASSY 4
$41.05¢20 528
1
#22
90387-06130-00
Collar
$7.93¢3 968
1
#23
90480-10334-00
Grommet
$7.56¢3 778
1
#24
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#25
90269-07008-00
RIVET
$2.78¢1 392
1
#26
20S-24773-00-00
HANDLE, SEAT
$275.69¢137 845
1
#27
92012-08020-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#28
90387-08089-00
COLLAR
$7.38¢3 691
1
