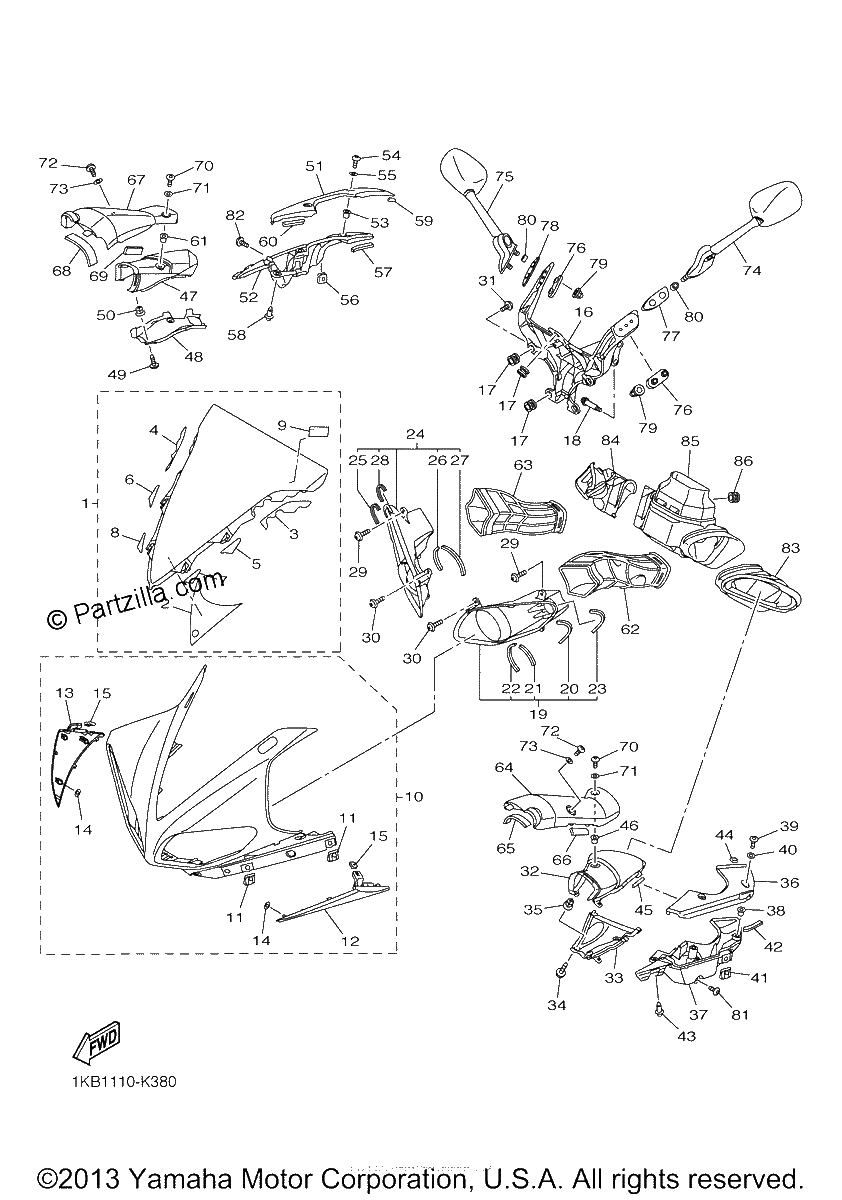

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SCREEN
$267.25¢133 625
#2
GRAPHIC, 18
No Disponible
#3
SEAL 1
$12.64¢6 319
#4
SEAL 2
No Disponible
#5
SEAL 3
$6.19¢3 094
#6
SEAL 4
$6.14¢3 069
#7
SEAL 5
$5.74¢2 869
#8
SEAL 6
$5.74¢2 869
#9
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
#10
BODY, FRONT UPPER 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$1150.30¢575 150
#11
PLATE, SPRING
$7.41¢3 706
#12
COVER 1 | Use for Color Black Metallic X ( SMX / 0903 )
$110.45¢55 225
#13
COVER 2 | Use for Color Black Metallic X ( SMX / 0903 )
$115.40¢57 700
#14
NUT, SPRING
$0.50¢250
#15
NUT, SPRING
$2.82¢1 412
#16
STAY 1
$259.13¢129 563
#17
DAMPER
$7.63¢3 813
#18
BOLT, FLANGE
$7.52¢3 762
#19
GRILL ASSY
$52.27¢26 138
#20
DAMPER
$0.96¢481
#21
SEAL 4
$9.60¢4 800
#22
DAMPER, PLATE
$0.96¢481
#23
DAMPER 5
$3.89¢1 944
#24
GRILL ASSY
$52.27¢26 138
#25
DAMPER
$0.96¢481
#26
SEAL 4
$9.60¢4 800
#27
DAMPER, PLATE
$0.96¢481
#28
DAMPER 5
$3.89¢1 944
#29
SCREW, TAPPING (replaces 97702-50020-00)
$6.26¢3 131
#30
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#31
SCREW, ROUND TAPPING
$7.43¢3 713
#32
DUCT 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$132.32¢66 163
#33
DUCT 3
$14.65¢7 325
#34
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#35
GROMMET
$7.48¢3 738
#36
LID 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$82.17¢41 088
#37
BOX 3
$25.45¢12 725
#38
NUT
$6.78¢3 388
#39
NUT
$6.78¢3 388
#39
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#40
WASHER, PLATE
$7.66¢3 831
#41
PLATE, SPRING
$7.41¢3 706
#42
SEAL 4
$9.60¢4 800
#43
RIVET
$8.25¢4 125
#44
DAMPER, PLATE
$7.71¢3 856
#45
DAMPER, PLATE
$7.79¢3 894
#46
NUT
$6.78¢3 388
#47
DUCT 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$121.69¢60 844
#48
DUCT 4
$14.65¢7 325
#49
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#50
GROMMET
$7.48¢3 738
#51
LID 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
No Disponible
#52
BOX 4
$14.65¢7 325
#54
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#55
WASHER, PLATE
$7.66¢3 831
#56
PLATE, SPRING
$7.41¢3 706
#57
SEAL 4
$9.60¢4 800
#58
RIVET
$8.25¢4 125
#59
DAMPER, PLATE
$7.71¢3 856
#60
DAMPER, PLATE
$7.79¢3 894
#61
NUT
$6.78¢3 388
#62
DUCT 5
$36.88¢18 438
#63
DUCT 6
$34.40¢17 200
#64
PANEL, CONSOLE 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$107.58¢53 788
#65
DAMPER, 3
$7.95¢3 975
#66
SEAL 1
$10.51¢5 256
#67
PANEL, CONSOLE 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
No Disponible
#68
DAMPER, 3
$7.95¢3 975
#69
SEAL 1
$10.51¢5 256
#70
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#71
WASHER, PLATE
$7.66¢3 831
#72
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#73
WASHER, PLATE
$7.66¢3 831
#74
REAR VIEW MIRROR ASSY (LEFT)
$155.65¢77 825
#75
REAR VIEW MIRROR ASSY (RIGHT)
$155.65¢77 825
#76
PLATE, MIRROR FITTING 1
$7.65¢3 825
#77
BASE, MIRROR (LEFT)
$5.66¢2 831
#78
BASE, MIRROR (RIGHT)
$5.66¢2 831
#79
NUT, CROWN
$4.76¢2 381
#80
COLLAR (J45)
$5.93¢2 963
#81
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#82
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#83
BOX, SIDE 1
$45.69¢22 844
#84
BOX, SIDE 2
$58.38¢29 188
#85
BOX, FRONT
$111.54¢55 769
#86
GROMMET
$4.63¢2 313
