FRONT BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

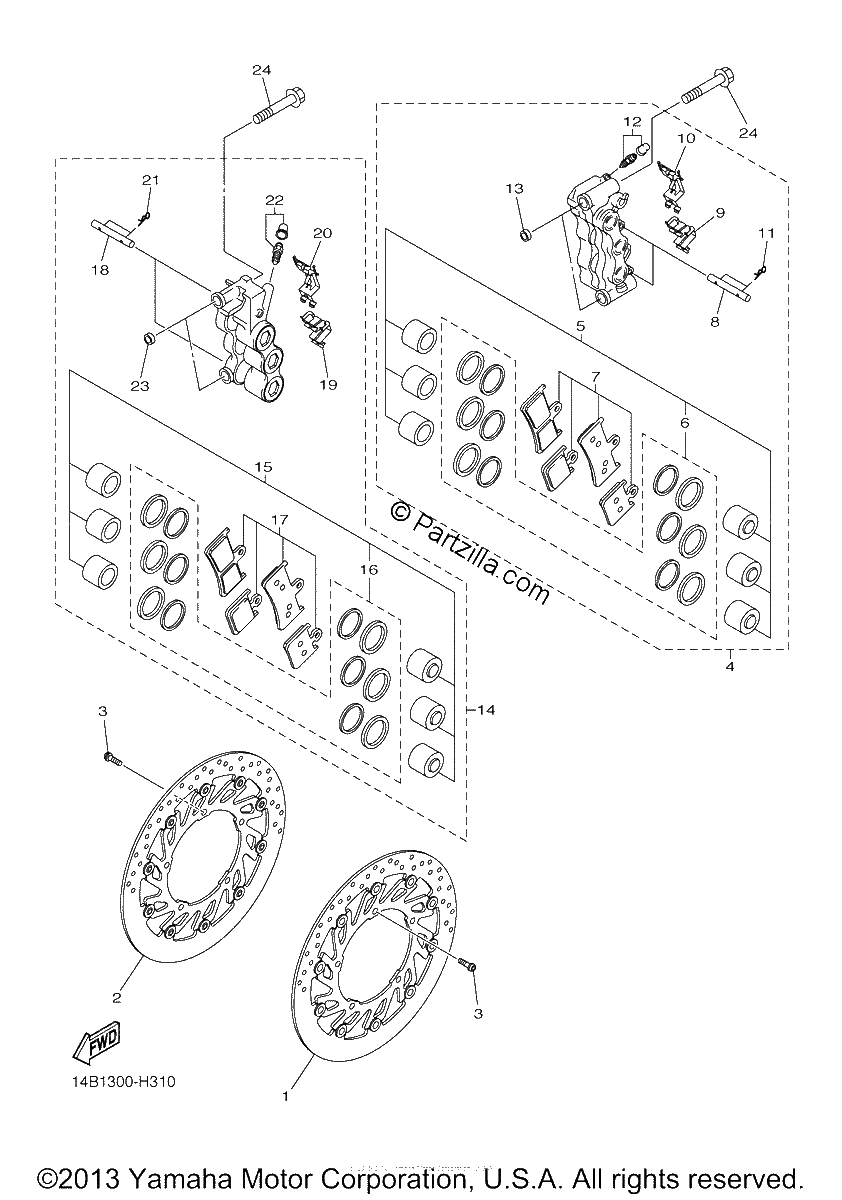

Diagrama de FRONT BRAKE CALIPER

Repuestos

#1
14B-2581T-00-00
DISC BRAKE ASSY
$390.87¢195 437
1
#2
14B-2581U-00-00
DISC BRAKE ASSY (RIGHT)
$390.87¢195 437
1
#3
90149-06045-00
SCREW
$7.51¢3 755
1
#4
4C8-2580T-10-00
CALIPER ASSY (LEFT)
$770.49¢385 244
1
#5
4C8-W0057-00-00
PISTON ASSY, CALIPER
$230.60¢115 299
1
#6
4C8-25803-00-00
CALIPER SEAL KIT (replaces 4C8-W0047-00-00)
$48.78¢24 392
1
#7
4C8-25805-00-00
BRAKE PAD KIT (replaces 4C8-W0045-00-00)
$57.82¢28 911
1
#8
4SV-25924-00-00
PIN, PAD
$40.87¢20 435
1
#9
4C8-25919-00-00
SUPPORT, PAD
$8.15¢4 077
1
#10
2S3-25919-10-00
SUPPORT, PAD
$24.83¢12 414
1
#11
3GM-25925-00-00
CLIP
$10.74¢5 371
1
#12
1J3-W0048-00-00
BLEED SCREW KIT
$28.91¢14 455
1
#13
5VY-2583B-00-00
PIN, KNOCK
$16.36¢8 182
1
#14
4C8-2580U-10-00
CALIPER ASSY (RIGHT)
$770.49¢385 244
1
#15
4C8-W0057-00-00
PISTON ASSY, CALIPER
$230.60¢115 299
1
#16
4C8-25803-00-00
CALIPER SEAL KIT (replaces 4C8-W0047-00-00)
$48.78¢24 392
1
#17
4C8-25805-00-00
BRAKE PAD KIT (replaces 4C8-W0045-00-00)
$57.82¢28 911
1
#18
4SV-25924-00-00
PIN, PAD
$40.87¢20 435
1
#19
4C8-25919-00-00
SUPPORT, PAD
$8.15¢4 077
1
#20
2S3-25919-10-00
SUPPORT, PAD
$24.83¢12 414
1
#21
3GM-25925-00-00
CLIP
$10.74¢5 371
1
#22
1J3-W0048-00-00
BLEED SCREW KIT
$28.91¢14 455
1
#23
5VY-2583B-00-00
PIN, KNOCK
$16.36¢8 182
1
#24
90105-10397-00
Bolt, Flange
$10.14¢5 071
1
