ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

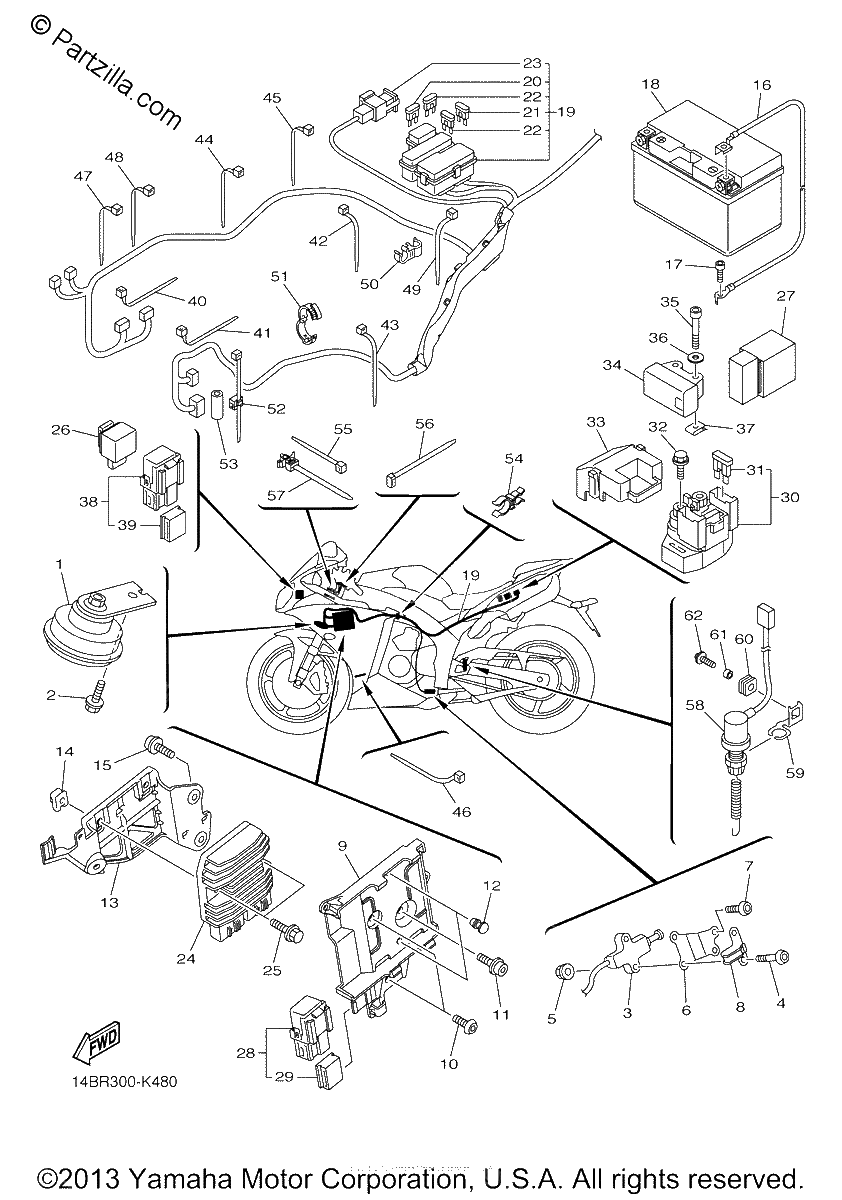

Diagrama de ELECTRICAL 2

Repuestos

#1
14B-83371-00-00
HORN
$105.94¢52 969
1
#2
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#3
13S-82566-50-00
SWITCH, SIDE STAND
$170.91¢85 456
1
#4
92012-05025-00
BOLT, BUTTON HEAD
$3.68¢1 840
1
#5
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#6
14B-27961-00-00
BRACKET, SENSOR 1
$10.02¢5 008
1
#7
92012-05016-00
BOLT, BUTTON HEAD
$6.75¢3 375
1
#8
14B-27911-00-00
HOLDER
$7.28¢3 640
1
#9
14B-2836H-00-00
BRACKET 5
$36.54¢18 268
1
#10
90111-06119-00
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
1
#11
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
1
#12
90338-07180-00
PLUG
$6.22¢3 111
1
#13
14B-2836J-00-00
BRACKET 6
$24.55¢12 276
1
#14
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#15
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
1
#16
14B-82116-00-00
WIRE, MINUS LEAD
$35.58¢17 790
1
#17
91317-06012-00
BOLT
$6.75¢3 375
1
#18
YTZ-10S00-00-00
YTZ10S YUASA BATTER
$216.40¢108 198
1
#19
14B-82590-40-00
WIRE HARNESS ASSY
$1124.69¢562 344
1
#20
5JJ-82151-20-00
FUSE (20A-BL)
$7.01¢3 507
1
#21
67F-82151-50-00
FUSE (15A)
$4.08¢2 041
1
#22
5JJ-82151-00-00
FUSE (7.5A-BL)
$6.51¢3 254
1
#23
5JW-82151-10-00
FUSE (50A)
$15.65¢7 826
1
#24
1D7-81960-01-00
RECTIFIER REGULATOR ASSY
$308.43¢154 215
1
#25
90105-06148-00
Bolt, Flange
$6.82¢3 410
1
#26
4MY-83350-01-00
FLASHER RELAY ASSY
$51.50¢25 749
1
#27
5VK-81950-40-00
RELAY ASSY (5VK-40)
$65.04¢32 522
1
#28
5JJ-81950-20-00
RELAY ASSY (5JJ-20)
$54.10¢27 048
1
#29
5JJ-81952-00-00
HOLDER, RELAY
$8.71¢4 353
1
#30
2C0-81940-00-00
STARTER RELAY ASSY
$147.04¢73 520
1
#31
36Y-82151-00-00
Fuse (15 Amp)
$4.45¢2 225
1
#32
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#33
5SL-82119-10-00
COVER, LEAD WIRE
$4.45¢2 225
1
#34
5VU-82576-01-00
SENSOR, LEAN ANGLE
$94.59¢47 294
1
#35
91312-04025-00
BOLT
$1.69¢845
1
#36
90201-047A2-00
WASHER, PLATE
$3.06¢1 529
1
#37
90183-04039-00
NUT, SPRING
$6.46¢3 231
1
#38
5JJ-81950-20-00
RELAY ASSY (5JJ-20)
$54.10¢27 048
1
#39
90445-10365-00
HOSE
No Disponible
1
#39
5JJ-81952-00-00
HOLDER, RELAY
$8.71¢4 353
1
#40
90464-15195-00
CLAMP
$3.04¢1 518
1
#41
90464-15195-00
CLAMP
$3.04¢1 518
1
#42
90465-13M11-00
CLAMP
$6.27¢3 134
1
#43
1UA-82591-00-00
BAND
$4.52¢2 260
1
#44
1UA-82591-00-00
BAND
$4.52¢2 260
1
#45
90464-13077-00
CLAMP
$7.30¢3 651
1
#46
90464-15195-00
CLAMP
$3.04¢1 518
1
#47
90464-15195-00
CLAMP
$3.04¢1 518
1
#48
90464-13077-00
CLAMP
$7.30¢3 651
1
#49
90464-13077-00
CLAMP
$7.30¢3 651
1
#50
90464-12009-00
CLAMP
$4.70¢2 352
1
#51
90464-16001-00
CLAMP
$1.87¢937
1
#52
90464-36004-00
CLAMP
$7.88¢3 939
1
#54
90464-21256-00
CLAMP
$3.54¢1 771
1
#55
1UA-82591-00-00
BAND
$4.52¢2 260
1
#56
90464-59001-00
CLAMP
$15.70¢7 849
1
#57
90464-10112-00
CLAMP
$6.76¢3 381
1
#58
14B-82530-00-00
STOP SWITCH ASSY
$101.98¢50 991
1
#59
14B-2144G-00-00
STAY, STOP SWITCH
$7.88¢3 939
1
#60
90480-12607-00
GROMMET
$9.36¢4 681
1
#61
90387-06M16-00
COLLAR
$3.83¢1 915
1
#62
90159-06082-00
SCREW, WITH WASHER
$7.08¢3 542
1
