STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

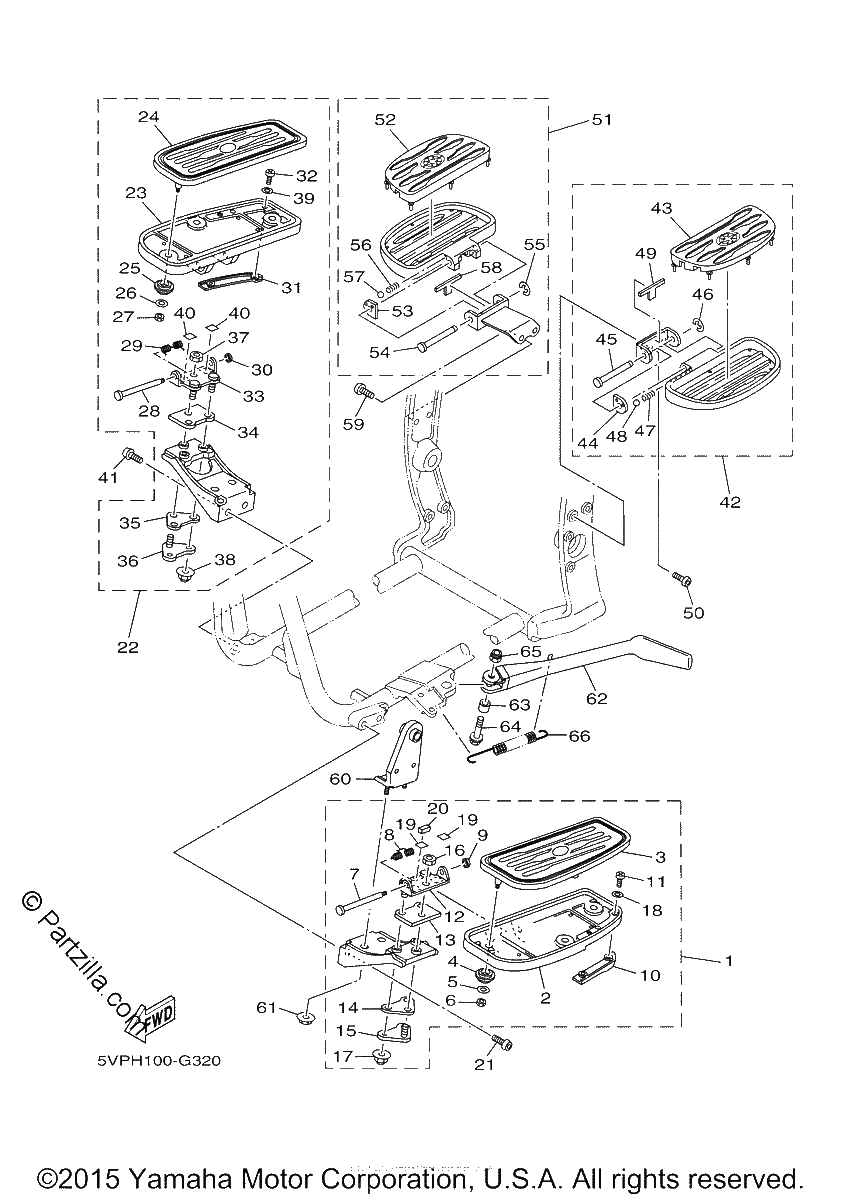

Diagrama de STAND FOOTREST

Repuestos

#1
5VN-27410-10-00
FRONT FOOTREST ASSY (LEFT)
$322.39¢161 194
1
#2
4NK-27451-10-00
FOOTREST
$70.92¢35 463
1
#3
4WM-27413-00-00
COVER, FOOTREST
$122.67¢61 338
1
#4
4WM-27414-00-00
DAMPER, FOOTREST
$6.06¢3 031
1
#5
90201-05033-00
WASHER, PLATE
$8.45¢4 225
1
#6
95617-05100-00
NUT, U
$7.94¢3 969
1
#7
3D8-27427-00-00
SHAFT
$7.31¢3 656
1
#8
4NK-27426-00-00
SPRING, RETURN
$7.55¢3 775
1
#9
99001-06600-00
CIRCLIP
$1.02¢513
1
#10
4WM-27496-00-00
MOLE 1
$65.17¢32 588
1
#11
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$4.20¢2 100
1
#12
5VN-27422-00-00
BRACKET, FOOTREST 2
$27.36¢13 681
1
#13
5VN-27414-00-00
DAMPER, FOOTREST
$8.03¢4 013
1
#14
5VN-27424-00-00
DAMPER, FOOTREST 2
$8.03¢4 013
1
#15
5VN-27123-00-00
PLATE, STOPPER
$14.71¢7 356
1
#16
95317-06600-00
NUT
$3.21¢1 606
1
#17
90176-06007-00
NUT, CROWN
$2.79¢1 394
1
#18
92907-05200-00
WASHER
$4.88¢2 438
1
#19
1D7-27485-00-00
SEAL
$4.60¢2 300
1
#20
5VN-2743E-00-00
STOPPER
$3.90¢1 950
1
#21
90111-10019-00
BOLT,HEX. SOCKET BUT
$4.09¢2 044
1
#22
5VN-27420-10-00
FRONT FOOTREST ASSY (RIGHT)
$322.39¢161 194
1
#23
4NK-27461-10-00
FOOTREST
$93.06¢46 531
1
#24
4WM-27423-00-00
COVER, FOOTREST
$84.56¢42 281
1
#25
4WM-27414-00-00
DAMPER, FOOTREST
$6.06¢3 031
1
#26
90201-05033-00
WASHER, PLATE
$8.45¢4 225
1
#27
95617-05100-00
NUT, U
$7.94¢3 969
1
#28
3D8-27427-00-00
SHAFT
$7.31¢3 656
1
#29
4NK-27426-00-00
SPRING, RETURN
$7.55¢3 775
1
#30
99001-06600-00
CIRCLIP
$1.02¢513
1
#31
4WM-27497-00-00
MOLE 2
$65.14¢32 569
1
#32
98517-05010-00
SCREW,PAN HEAD(3SX (replaces 98507-05010-00)
$4.20¢2 100
1
#33
5VN-27422-00-00
BRACKET, FOOTREST 2
$27.36¢13 681
1
#34
5VN-27414-00-00
DAMPER, FOOTREST
$8.03¢4 013
1
#35
5VN-27424-00-00
DAMPER, FOOTREST 2
$8.03¢4 013
1
#36
5VN-27123-00-00
PLATE, STOPPER
$14.71¢7 356
1
#37
95317-06600-00
NUT
$3.21¢1 606
1
#38
90176-06007-00
NUT, CROWN
$2.79¢1 394
1
#39
4YE-27437-01-00
WASHER, SPECIAL
$6.06¢3 031
1
#39
92907-05200-00
WASHER
$4.88¢2 438
1
#40
1D7-27485-00-00
SEAL
$4.60¢2 300
1
#41
90111-10019-00
BOLT,HEX. SOCKET BUT
$4.09¢2 044
1
#42
2D9-27430-00-00
REAR FOOTREST ASSY 1
$199.60¢99 800
1
#43
4YE-27433-00-00
COVER, REAR FOOTREST
No Disponible
1
#44
4YE-27437-01-00
WASHER, SPECIAL
$6.06¢3 031
1
#45
4YE-27427-01-00
SHAFT
$4.01¢2 006
1
#46
99001-06600-00
CIRCLIP
$1.02¢513
1
#47
90501-13720-00
SPRING, COMPRESSION
$7.94¢3 969
1
#48
93501-04011-00
BALL
$7.46¢3 731
1
#49
2D9-2743E-00-00
STOPPER
$3.02¢1 513
1
#50
90111-08002-00
BOLT, HEX. SOCKET BUTTON
$8.64¢4 319
1
#51
2D9-27440-00-00
REAR FOOTREST ASSY 2
$199.60¢99 800
1
#52
4YE-27433-00-00
COVER, REAR FOOTREST
No Disponible
1
#54
4YE-27427-01-00
SHAFT
$4.01¢2 006
1
#55
99001-06600-00
CIRCLIP
$1.02¢513
1
#56
90501-13720-00
SPRING, COMPRESSION
$7.94¢3 969
1
#57
93501-04011-00
BALL
$7.46¢3 731
1
#58
2D9-2743E-00-00
STOPPER
$3.02¢1 513
1
#59
90111-08002-00
BOLT, HEX. SOCKET BUTTON
$8.64¢4 319
1
#60
5VN-27443-00-00
BRACKET 3
$114.38¢57 188
1
#61
90185-08169-00
NUT, SELF-LOCKING
$8.45¢4 225
1
#62
4WM-27311-00-00
STAND, SIDE
$274.59¢137 294
1
#63
90387-1007K-00
COLLAR
$21.23¢10 613
1
#64
90105-10778-00
BOLT, FLANGE
$4.88¢2 438
1
#65
90185-10037-00
NUT,SELF-LOCKING
$7.94¢3 969
1
#66
90506-29358-00
SPRING, TENSION
$12.75¢6 375
1
