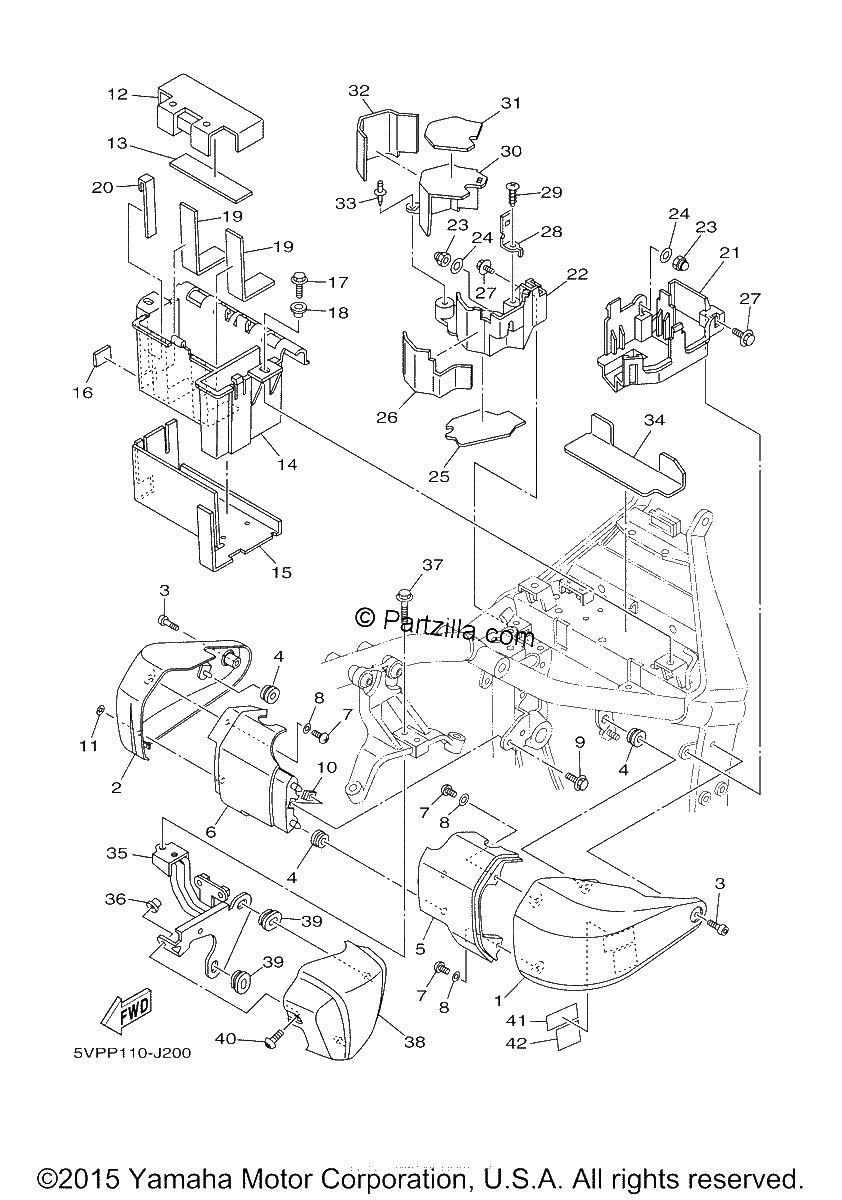

SIDE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, SIDE 1 | Use for Color VERY DARK RED METALLIC 2 ( VDRM2 / 0957 )
No Disponible
#2
COVER, SIDE 2 | Use for Color VERY DARK RED METALLIC 2 ( VDRM2 / 0957 )
$307.61¢153 806
#3
SCREW
$5.11¢2 556
#4
GROMMET
$4.63¢2 313
#5
COVER 9 | Use for Color VERY DARK RED METALLIC 2 ( VDRM2 / 0957 )
$128.16¢64 081
#6
COVER 10 | Use for Color VERY DARK RED METALLIC 2 ( VDRM2 / 0957 )
$128.16¢64 081
#7
SCREW, PAN
$7.35¢3 675
#8
WASHER, PLATE (6TA)
$0.96¢481
#9
BOLT, FLANGE
$3.89¢1 944
#10
NUT, SPRING
$9.39¢4 694
#11
NUT, SPRING
$8.88¢4 438
#12
COVER, BATTERY
No Disponible
#13
DAMPER, LOCATING 1
$2.71¢1 356
#14
BOX, BATTERY
$67.05¢33 525
#15
SEAL 1
$51.21¢25 606
#16
SEAL, BATTERY
$2.31¢1 156
#17
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#18
COLLAR
$7.34¢3 669
#19
DAMPER
No Disponible
#20
DAMPER 3
$7.60¢3 800
#21
STAY, SIDE COVER 1
$37.67¢18 838
#22
STAY, SIDE COVER 2
$14.20¢7 100
#23
NUT, CROWN
$2.76¢1 381
#24
WASHER, PLATE
$4.65¢2 325
#25
SEAL, 2
$6.03¢3 013
#26
SEAL, 3
$5.40¢2 700
#27
BOLT, WITH WASHER
$4.45¢2 225
#28
CLAMP, COUPLER
$10.60¢5 300
#29
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
#30
COVER, CAP
$11.54¢5 769
#31
SEAL, 4
$4.05¢2 025
#32
SEAL
$8.10¢4 050
#33
RIVET
$6.45¢3 225
#34
SHEET 2
$4.75¢2 375
#35
BRACKET 3
$47.90¢23 950
#36
NUT
$5.84¢2 919
#37
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
#38
COVER, SIDE 3
$210.73¢105 363
#39
Grommet
$4.69¢2 344
#40
SCREW
$4.24¢2 119
#41
PLATE, ROUTING | FOR CAL
$4.16¢2 081
#42
PLATE, ROUTING 2 | FOR CAL
No Disponible
