CAMSHAFT CHAIN

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

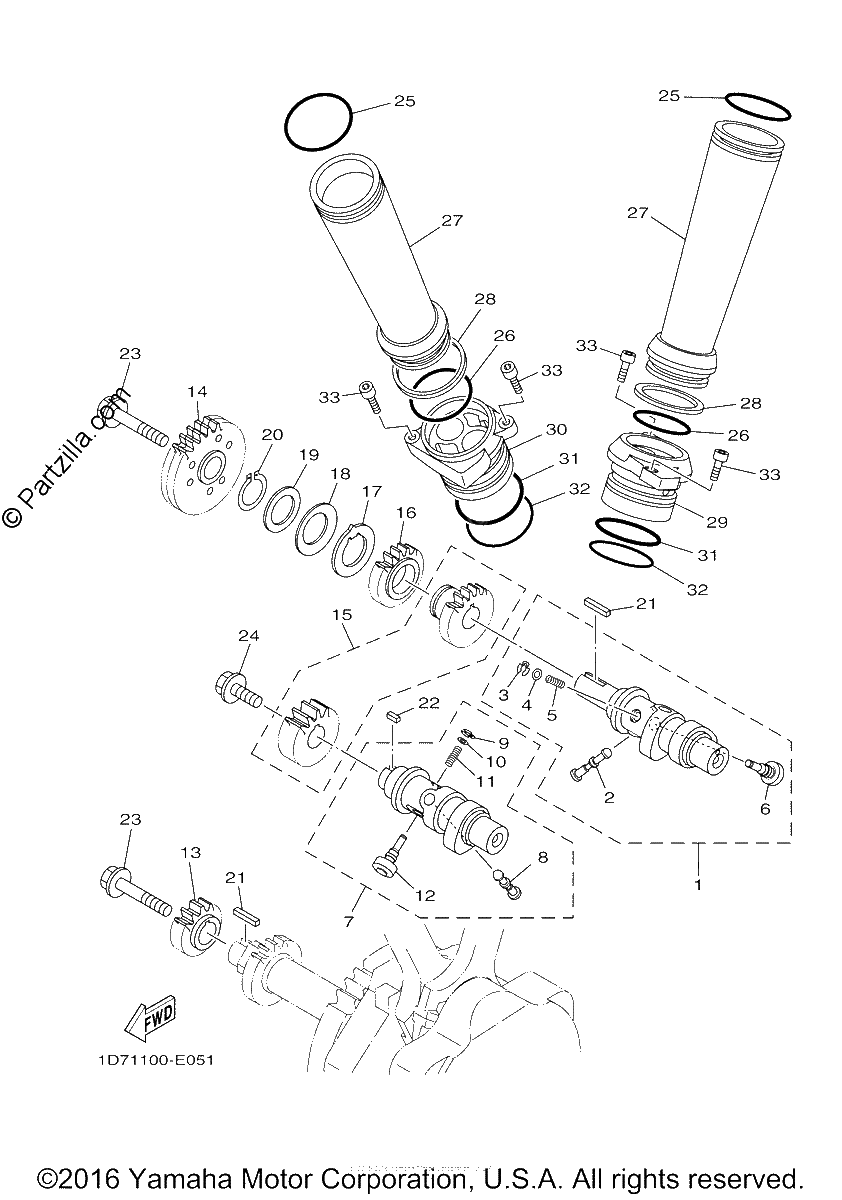

Diagrama de CAMSHAFT CHAIN

Repuestos

#1
1D7-12170-03-00
CAMSHAFT ASSY 1
$473.02¢236 509
1
#2
1D7-12276-03-00
PIN, DECOMPR .
$31.68¢15 841
1
#3
93430-04055-00
CIRCLIP
$4.30¢2 151
1
#4
90201-05M04-00
WASHER, PLATE
$2.78¢1 392
1
#5
1D7-12287-00-00
SPRING, DECOMPRESSION
$1.55¢776
1
#6
1D7-12280-00-00
DECOMPRESSION ASSY
$164.01¢82 007
1
#7
1D7-12180-03-00
CAMSHAFT ASSY 2
$563.59¢281 796
1
#8
1D7-12276-03-00
PIN, DECOMPR .
$31.68¢15 841
1
#9
93430-04055-00
CIRCLIP
$4.30¢2 151
1
#10
90201-05M04-00
WASHER, PLATE
$2.78¢1 392
1
#11
1D7-12287-00-00
SPRING, DECOMPRESSION
$1.55¢776
1
#12
1D7-12280-00-00
DECOMPRESSION ASSY
$164.01¢82 007
1
#13
1D7-11534-00-00
GEAR, BREAKER DRIVE
$62.48¢31 240
1
#14
1D7-Y115B-00-00
DRIVEN GEAR COMP.
$294.49¢147 246
1
#15
1D7-W115A-00-00
DRIVE GEAR SET
$179.66¢89 832
1
#16
4WM-11544-01-00
GEAR 2
$55.07¢27 537
1
#17
1D7-11557-00-00
WASHER 1
$5.11¢2 553
1
#18
4WM-12216-01-00
SPRING
$12.04¢6 020
1
#19
90201-283U6-00
WASHER, PLATE
$4.66¢2 329
1
#20
99009-28400-00
CIRCLIP
$6.52¢3 260
1
#21
90282-03002-00
KEY, STRAIGHT
$6.76¢3 381
1
#22
90282-04001-00
KEY, STRAIGHT
$5.49¢2 743
1
#23
90105-10159-00
BOLT, FLANGE
$7.88¢3 939
1
#24
90105-10445-00
BOLT, FLANGE
$10.60¢5 302
1
#25
93210-53638-00
O-RING
$15.98¢7 993
1
#26
93210-472A9-00
O-RING
$15.21¢7 607
1
#27
1D7-12155-10-00
GUIDE, PUSH ROD
$342.84¢171 419
1
#28
5PX-12215-00-00
CAP, TENSIONER CASE
$7.08¢3 542
1
#29
1D7-12147-00-00
HOUSING
$171.69¢85 848
1
#30
1D7-12148-00-00
HOUSING
$260.58¢130 289
1
#31
93210-54175-00
O-RING
$12.91¢6 457
1
#32
93210-54452-00
O-RING
$9.95¢4 974
1
#33
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
