FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

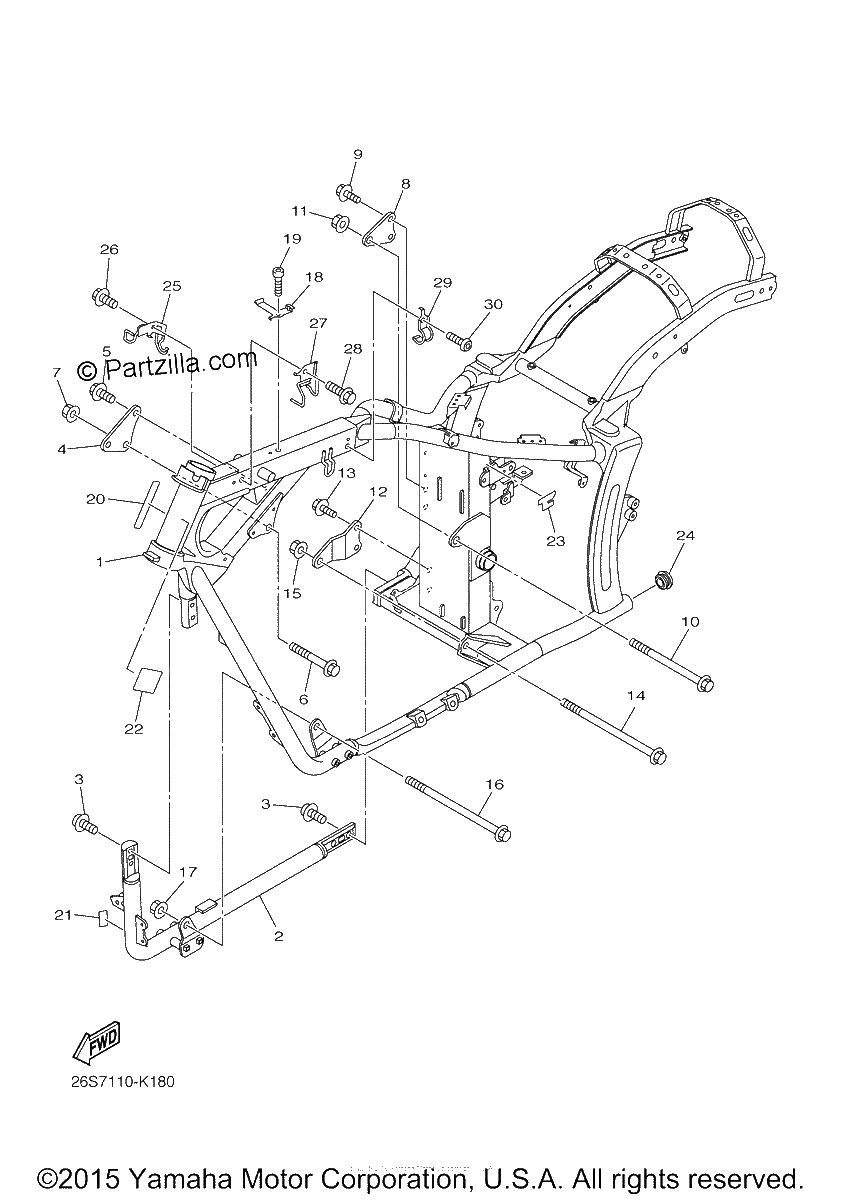

Diagrama de FRAME

Repuestos

#1
5S7-21110-10-00
FRAME COMP.
$3127.49¢1 563 744
1
#2
5S7-21280-10-00
DOWNTUBE COMP.
$484.49¢242 244
1
#3
90110-10017-00
BOLT, HEXAGON SOCKET
$6.47¢3 238
1
#4
5S7-21317-00-00
STAY, ENGINE 3
$29.09¢14 544
1
#5
90105-102A3-00
BOLT, WASHER BASED
$8.30¢4 150
1
#6
90105-12252-00
BOLT, FLANGE
$12.02¢6 012
1
#7
90185-12002-00
NUT, SELF-LOCKING
$11.96¢5 981
1
#8
5S7-21314-00-00
STAY, ENGINE 5
$23.45¢11 725
1
#9
90105-102A3-00
BOLT, WASHER BASED
$8.30¢4 150
1
#10
90105-12043-00
BOLT, FLANGE
$15.70¢7 850
1
#11
90185-12002-00
NUT, SELF-LOCKING
$11.96¢5 981
1
#12
5S7-21316-00-00
STAY, ENGINE 2
$29.55¢14 775
1
#13
90105-102A3-00
BOLT, WASHER BASED
$8.30¢4 150
1
#14
90105-12044-00
BOLT, FLANGE
$23.57¢11 788
1
#15
90185-12002-00
NUT, SELF-LOCKING
$11.96¢5 981
1
#16
90105-12069-00
BOLT, FLANGE
$27.75¢13 875
1
#17
90185-12002-00
NUT, SELF-LOCKING
$11.96¢5 981
1
#18
5S7-21158-00-00
BRACKET
$9.45¢4 725
1
#19
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#20
3D8-2117G-00-00
PROTECTOR
$6.65¢3 325
1
#21
5PX-21268-00-00
SEAL
$7.67¢3 838
1
#22
1D7-2639G-00-00
SEAL
$6.76¢3 381
1
#23
5S7-21732-00-00
SEAL 1
$6.55¢3 275
1
#24
90338-27007-00
PLUG
$5.34¢2 669
1
#25
5S7-26279-00-00
GUIDE, CABLE
$36.85¢18 425
1
#26
90105-06696-00
BOLT, FLANGE
$7.48¢3 738
1
#27
5S7-26475-00-00
HOLDER
$25.21¢12 606
1
#28
90105-06696-00
BOLT, FLANGE
$7.48¢3 738
1
#29
90462-16005-00
CLAMP
$6.03¢3 013
1
#30
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
