OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

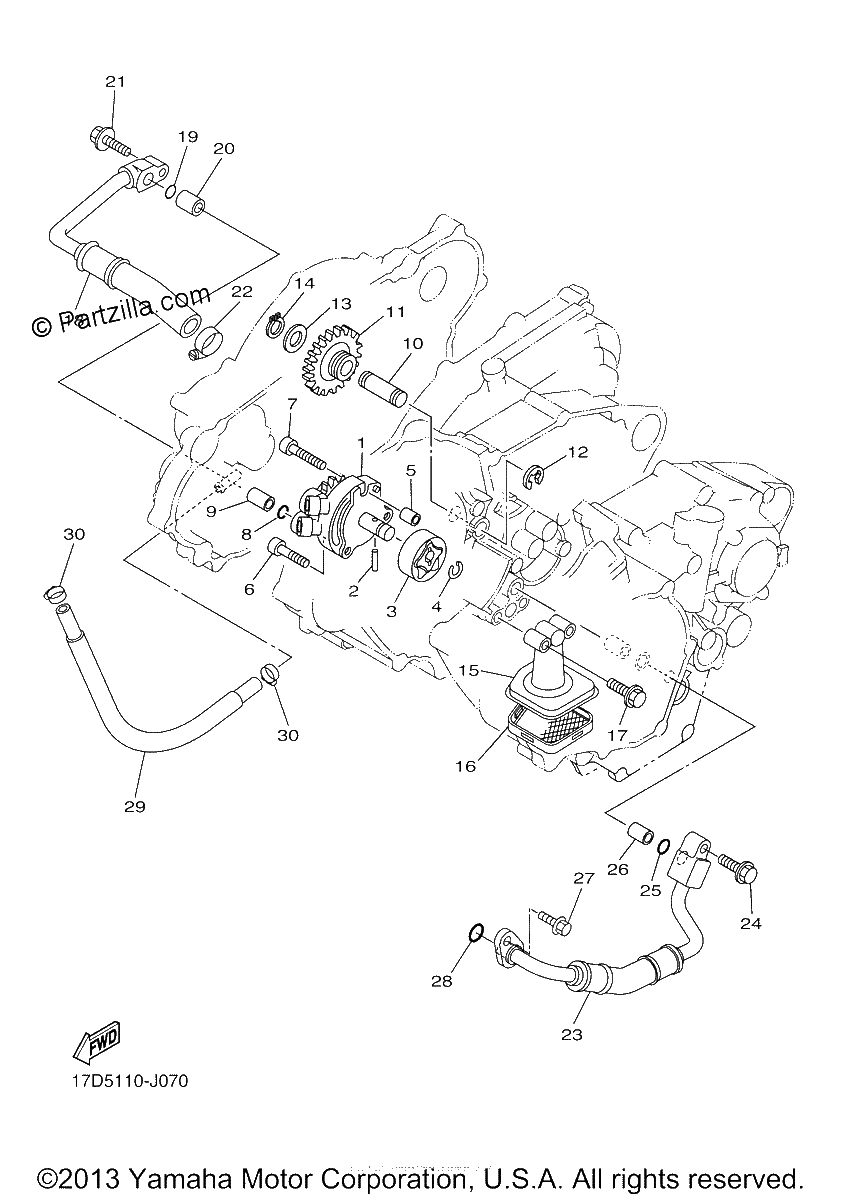

Diagrama de OIL PUMP

Repuestos

#1
5SG-13300-01-00
OIL PUMP ASSY
$162.40¢81 202
1
#2
93603-16219-00
PIN, DOWEL
$5.75¢2 875
1
#3
5NL-13320-00-00
ROTOR ASSY 2
$45.23¢22 615
1
#4
93440-10153-00
CIRCLIP
$1.83¢914
1
#5
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#6
91317-06025-00
BOLT
$2.24¢1 121
1
#7
90110-06138-00
BOLT, HEXAGON SOCKET HEAD
$3.62¢1 811
1
#8
93210-10197-00
O-RING
$6.43¢3 214
1
#9
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
#10
5BE-13342-00-00
SHAFT, IDLE GEAR
$21.75¢10 873
1
#11
5NL-13341-00-00
GEAR, OIL PUMP IDLE
$81.99¢40 997
1
#12
99001-08600-00
CIRCLIP
$6.75¢3 375
1
#13
90201-12166-00
WASHER, PLATE (replaces 90201-128C9-00)
$6.88¢3 439
1
#14
99009-12400-00
CIRCLIP
$3.37¢1 685
1
#15
5XC-13412-00-00
HOUSING, STRAINER
$16.50¢8 251
1
#16
5NL-13411-00-00
STRAINER, OIL
$22.40¢11 201
1
#17
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#18
17D-13464-00-00
HOSE, OIL 1
$118.47¢59 236
1
#19
93210-10197-00
O-RING
$6.43¢3 214
1
#20
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
#21
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#22
90450-18M09-00
HOSE CLAMP ASSY
$11.53¢5 767
1
#23
17D-13465-00-00
HOSE, OIL 2
$204.25¢102 126
1
#24
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#25
93210-10197-00
O-RING
$6.43¢3 214
1
#26
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
#27
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#28
93210-09350-00
O-RING (replaces 93210-09165-00)
$6.36¢3 180
1
#29
90445-14017-00
HOSE
$40.62¢20 309
1
#30
90450-14M05-00
HOSE CLAMP ASSY
$17.53¢8 763
1
