SIDE COVER OIL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

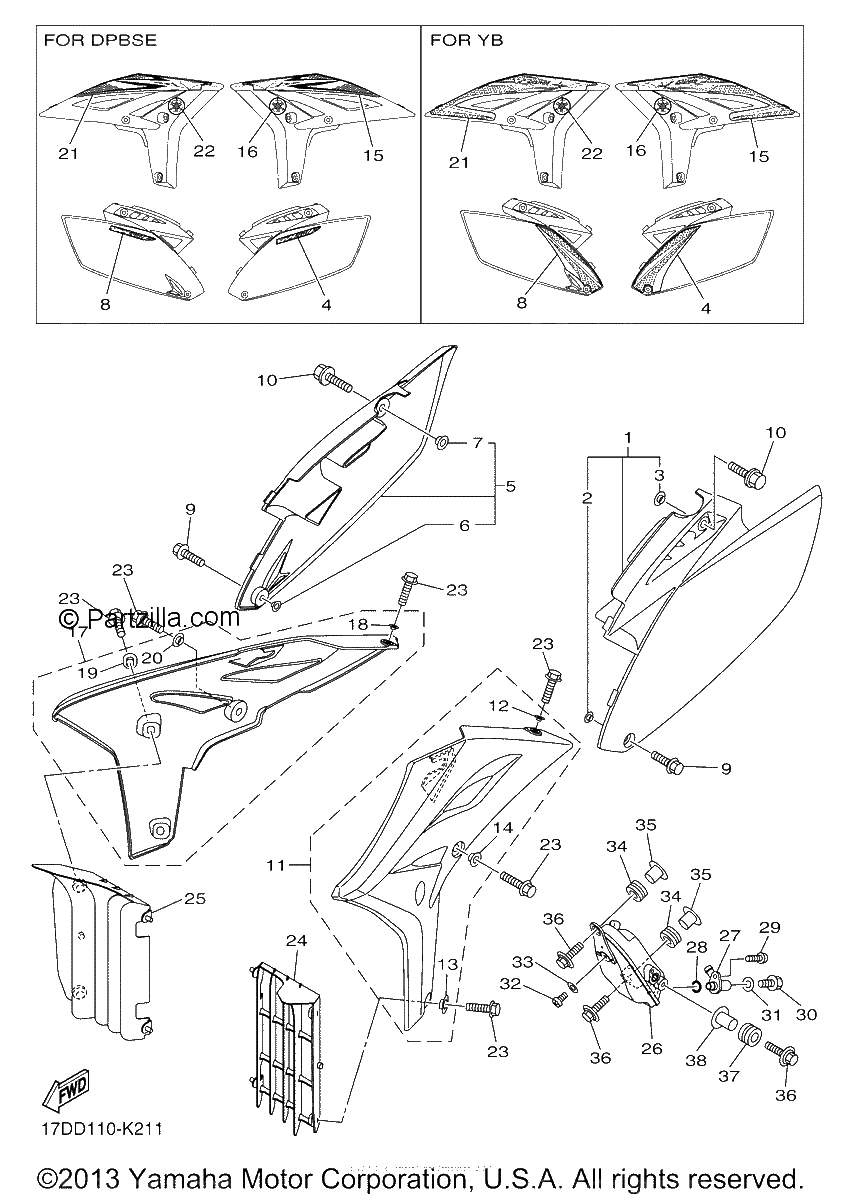

Diagrama de SIDE COVER OIL TANK

Repuestos

#0
17D-2174H-20-00
GRAPHIC, 4 | UR FOR YB
$32.94¢16 468
1
#0
17D-2173E-10-00
GRAPHIC, 1 | UR FOR YB
$15.94¢7 969
1
#0
17D-2174G-20-00
GRAPHIC, 3 | UR FOR YB
No Disponible
1
#0
17D-21740-D0-00
SIDE COVER ASSY 4 | UR FOR DPBSE INCL. IN PLASTIC KIT
$60.43¢30 216
1
#0
17D-2173F-10-00
GRAPHIC, 2 | UR FOR YB
$14.37¢7 187
1
#0
17D-21730-D0-00
SIDE COVER ASSY 3 | UR FOR DPBSE INCL. IN PLASTIC KIT
$40.24¢20 119
1
#1
17D-21710-00-00
SIDE COVER ASSY 1 | INCL. IN PLASTIC KIT
$129.75¢64 877
1
#2
90387-08086-00
Collar
$5.93¢2 967
1
#3
5BE-21749-00-00
Collar
$5.27¢2 633
1
#4
5XC-2163G-30-00
EMBLEM 1 | UR FOR DPBSE
$7.77¢3 887
1
#5
17D-21720-00-00
SIDE COVER ASSY 2 | INCL. IN PLASTIC KIT
$60.03¢30 015
1
#6
90387-08086-00
Collar
$5.93¢2 967
1
#7
5BE-21749-00-00
Collar
$5.27¢2 633
1
#8
5XC-2163G-30-00
EMBLEM 1 | UR FOR DPBSE
$7.77¢3 887
1
#9
90105-06103-00
BOLT, FLANGE
$4.62¢2 311
1
#10
90119-08095-00
BOLT, WITH WASHER
$6.83¢3 415
1
#11
17D-21730-E0-00
SIDE COVER ASSY 3 | UR FOR YB INCL. IN PLASTIC KIT
$55.37¢27 686
1
#12
90387-06009-00
COLLAR
$8.66¢4 330
1
#13
17D-21749-00-00
Collar
$15.65¢7 826
1
#14
5BE-21749-00-00
Collar
$5.27¢2 633
1
#15
17D-2174G-10-00
GRAPHIC, 3 | UR FOR DPBSE
$18.63¢9 315
1
#16
5FK-2175C-00-00
TUNING FORK MARK
$8.26¢4 129
1
#17
17D-21740-E0-00
SIDE COVER ASSY 4 | UR FOR YB INCL. IN PLASTIC KIT
$37.82¢18 912
1
#18
90387-06009-00
COLLAR
$8.66¢4 330
1
#19
17D-21749-00-00
Collar
$15.65¢7 826
1
#20
5BE-21749-00-00
Collar
$5.27¢2 633
1
#21
17D-2174H-10-00
GRAPHIC, 4 | UR FOR DPBSE
$18.63¢9 315
1
#22
5FK-2175C-00-00
TUNING FORK MARK
$8.26¢4 129
1
#23
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#24
17D-2172A-00-00
PANEL 1
$45.39¢22 695
1
#25
17D-2172A-10-00
PANEL 1
$40.70¢20 349
1
#26
17D-21751-00-00
TANK, OIL
$419.08¢209 541
1
#27
17D-13416-00-00
PIPE, OIL 1
$82.47¢41 233
1
#28
93210-14369-00
O-Ring
$6.36¢3 180
1
#29
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
#30
90105-08151-00
BOLT, FLANGE
$4.38¢2 191
1
#31
90201-082A6-00
WASHER, PLATE
$3.29¢1 644
1
#32
98980-06012-00
SCREW, BIND
$6.75¢3 375
1
#33
90201-06630-00
WASHER, PLATE
$3.44¢1 719
1
#34
90480-10289-00
GROMMET
$7.07¢3 536
1
#35
90387-06150-00
COLLAR
$5.65¢2 823
1
#36
90119-06255-00
BOLT, WITH WASHER
$3.47¢1 737
1
#37
90480-14433-00
GROMMET
$4.80¢2 398
1
#38
90387-06161-00
Collar
$6.83¢3 415
1
