OIL CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

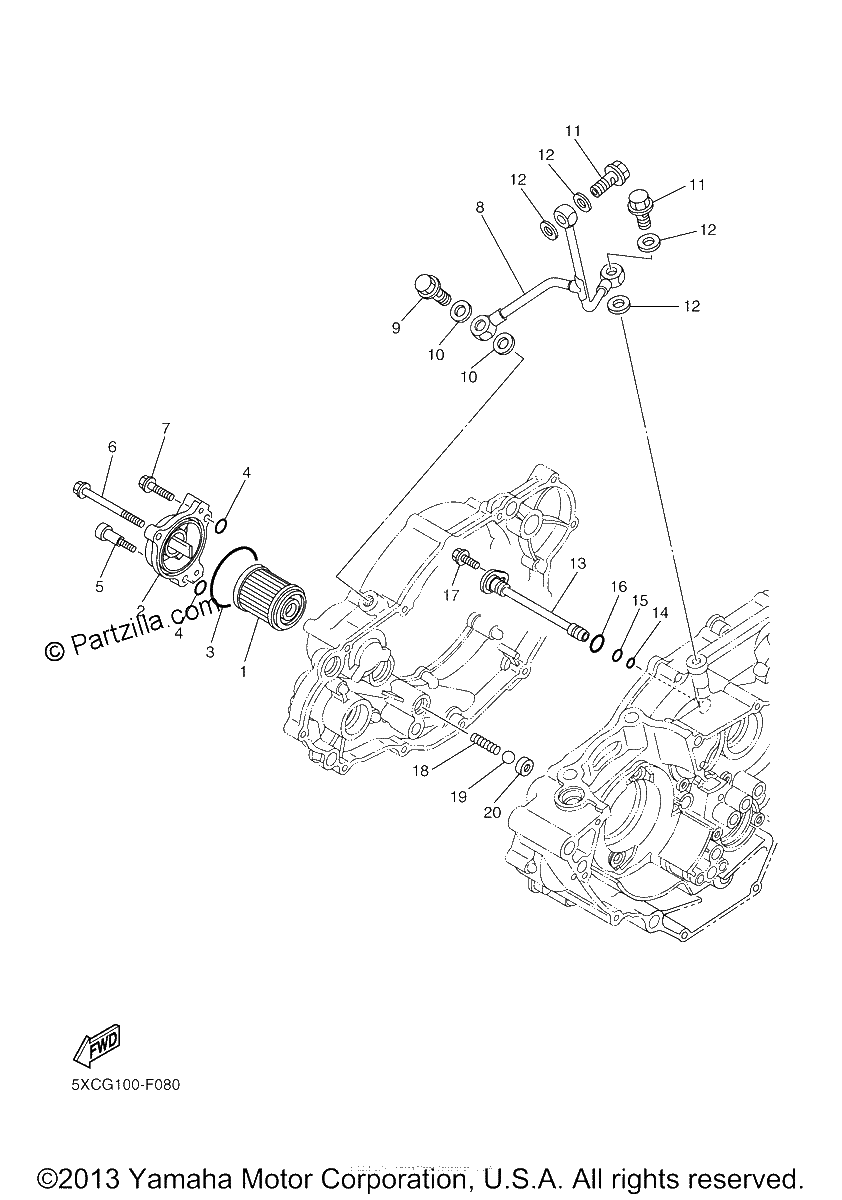

Diagrama de OIL CLEANER

Repuestos

#1
5D3-13440-09-00
ELEMENT ASSY, OIL CL
$15.81¢7 906
1
#2
5BE-13447-30-00
COVER, OIL ELEMENT
$94.26¢47 131
1
#3
93210-47675-00
O-RING
$6.60¢3 300
1
#4
93210-07135-00
O-RING
$5.60¢2 800
1
#5
90110-06228-00
BOLT, HEXAGON SOCKET HEAD
$7.43¢3 713
1
#6
91312-06065-00
BOLT
$3.89¢1 944
1
#7
91317-06025-00
BOLT
$2.44¢1 219
1
#8
5NL-13161-21-00
PIPE, DELIVERY 1
$160.76¢80 381
1
#9
90401-10015-00
BOLT, UNION
$11.81¢5 906
1
#10
90430-10188-00
Gasket
$7.36¢3 681
1
#11
90401-08006-00
BOLT, UNION
$6.52¢3 262
1
#12
90430-08119-00
GASKET
$6.91¢3 456
1
#13
5NL-13171-10-00
PIPE, DELIVERY 2
$82.25¢41 125
1
#14
93210-07540-00
O-RING
$6.88¢3 438
1
#15
93210-09525-00
O-Ring
$5.61¢2 806
1
#16
93210-12010-00
O-Ring
$8.03¢4 013
1
#17
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#18
90501-043E0-00
SPRING, COMPRESSION
$4.34¢2 169
1
#19
93503-08007-00
BALL
$2.88¢1 438
1
#20
583-13113-00-00
SEAT, CHECK BALL
$24.57¢12 288
1
