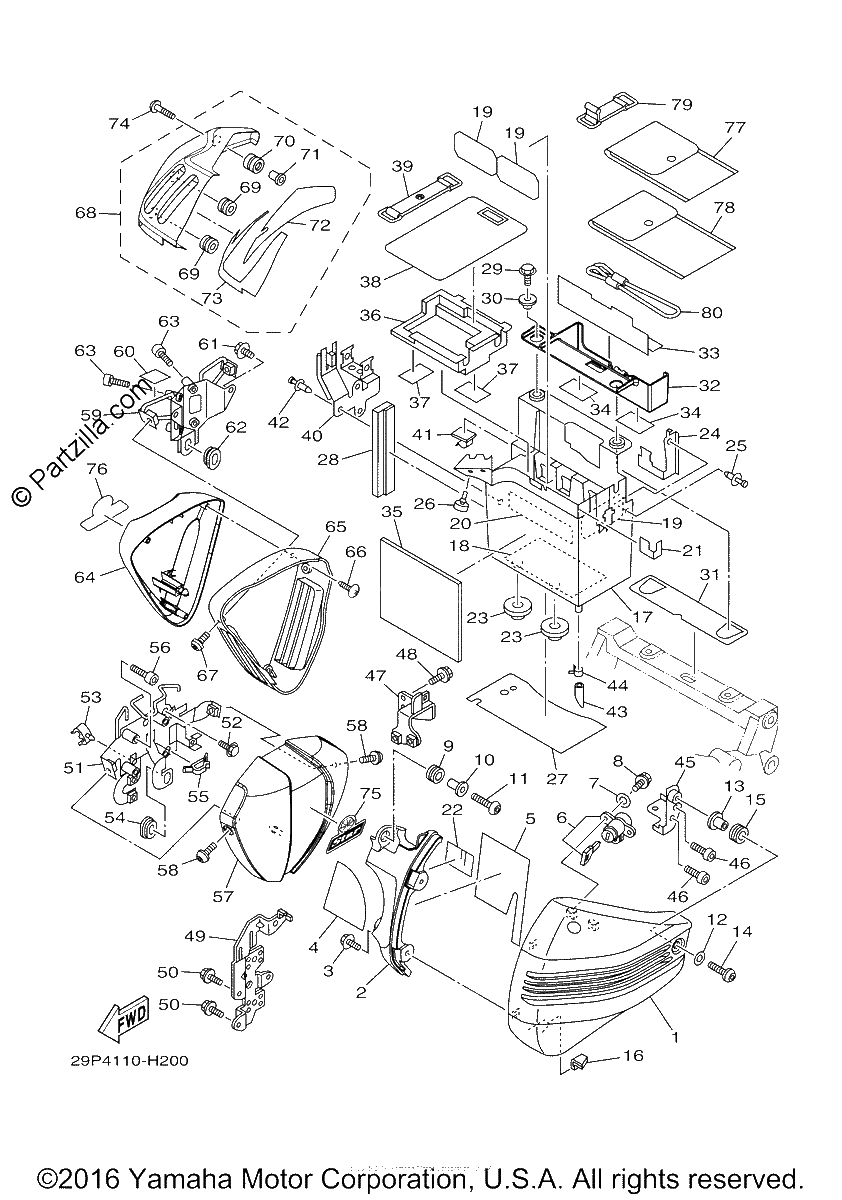

SIDE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
PLATE, COVER | UR FOR PBMJ
$298.02¢149 011
#0
COVER, SIDE 1 | UR FOR PBMJ
No Disponible
#1
COVER, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$228.98¢114 488
#2
COVER 9
$20.29¢10 143
#3
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
#4
SEAL 2
$4.97¢2 484
#5
DAMPER
$28.77¢14 386
#6
ROTOR SET
$136.30¢68 149
#7
WASHER, PLATE
$7.13¢3 565
#8
BOLT, WASHER BASED
$7.30¢3 651
#9
GROMMET
$7.30¢3 651
#10
COLLAR
$7.65¢3 824
#11
BOLT, BUTTON HEAD
$7.58¢3 789
#12
WASHER, PLATE
$7.16¢3 582
#13
SPACER
$13.36¢6 681
#14
SCREW
$5.06¢2 530
#15
GROMMET
$6.83¢3 415
#16
GUIDE
$10.11¢5 054
#17
BOX, BATTERY
No Disponible
#18
DAMPER, LOCATING 2
$4.09¢2 047
#19
PROTECTOR
$8.45¢4 226
#20
DAMPER, LOCATING 1
$2.50¢1 248
#21
SEAL 4
$6.03¢3 013
#22
SEAL 2
$3.52¢1 759
#23
GROMMET
$4.76¢2 380
#24
BRACKET 3
$15.47¢7 734
#25
RIVET
$7.59¢3 795
#26
DAMPER
$6.09¢3 048
#27
DAMPER, LOCATING 4
$27.93¢13 967
#28
DAMPER, LOCATING 1
$37.10¢18 550
#29
BOLT, FLANGE
$3.65¢1 823
#30
COLLAR
$5.92¢2 961
#31
DAMPER
$19.79¢9 896
#32
BOX, TOOL
$40.55¢20 274
#33
DAMPER
$3.55¢1 777
#34
DAMPER
$7.08¢3 542
#35
SEAL 1
$20.86¢10 431
#36
COVER, BATTERY
$30.82¢15 410
#37
DAMPER
$3.43¢1 713
#38
STAY SETTING
$23.78¢11 891
#39
CLAMP
$1.44¢719
#39
BAND,BATTERY (replaces 18G-82131-00-00)
$17.58¢8 792
#40
BRACKET 1
$24.72¢12 362
#41
CLAMP
$11.02¢5 509
#42
RIVET
$7.59¢3 795
#43
HOSE
$0.85¢426
#44
CLIP
$7.58¢3 789
#45
BRACKET 1
$28.27¢14 133
#46
BOLT, BUTTON HEAD
$6.82¢3 410
#47
BRACKET 4
$53.23¢26 617
#48
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
#49
STAY, SIDE COVER 2
$29.69¢14 846
#50
BOLT, FLANGE
$3.29¢1 644
#51
BRACKET 3
$291.52¢145 763
#52
BOLT,FLANGE (replaces 90105-08108-00)
$7.30¢3 651
#54
Grommet
$4.31¢2 156
#55
CLAMP
$5.37¢2 685
#56
BOLT, HEXAGON SOCKET HEAD
$7.72¢3 858
#57
COVER, SIDE 3
$211.88¢105 938
#58
SCREW
$4.70¢2 352
#59
BRACKET 4
$120.20¢60 099
#60
SEAL 3
$4.15¢2 076
#61
BOLT, FLANGE
$5.97¢2 984
#62
Grommet
$4.31¢2 156
#63
BOLT, HEXAGON SOCKET HEAD
$7.72¢3 858
#64
COVER, SIDE 4
$176.09¢88 044
#65
BODY
$40.55¢20 274
#66
SCREW, TAPPING
$2.63¢1 317
#67
SCREW
$4.70¢2 352
#68
PLATE, COVER | Use for Color Black Metallic X ( SMX / 0903 )
$301.37¢150 685
#69
GROMMET
$5.00¢2 501
#70
GROMMET
No Disponible
#71
COLLAR
$6.83¢3 415
#72
SEAL, CRANKCASE
$23.63¢11 816
#73
SEAL
$20.06¢10 028
#74
BOLT, HEXAGON SOCKET HEAD
$6.22¢3 111
#75
EMBLEM 3D
$61.11¢30 556
#76
EMBLEM 3D
$61.11¢30 556
#77
TOOL KIT
$62.58¢31 292
#78
TOOL KIT, 2
$39.97¢19 987
#79
BAND, BATTERY
$21.98¢10 988
#80
HANGER, HELMET
$31.96¢15 979
